Simrad AP26 User Manual

Installation
20222147A 63
RATE
COMPASS
AP16, AP25, AP26

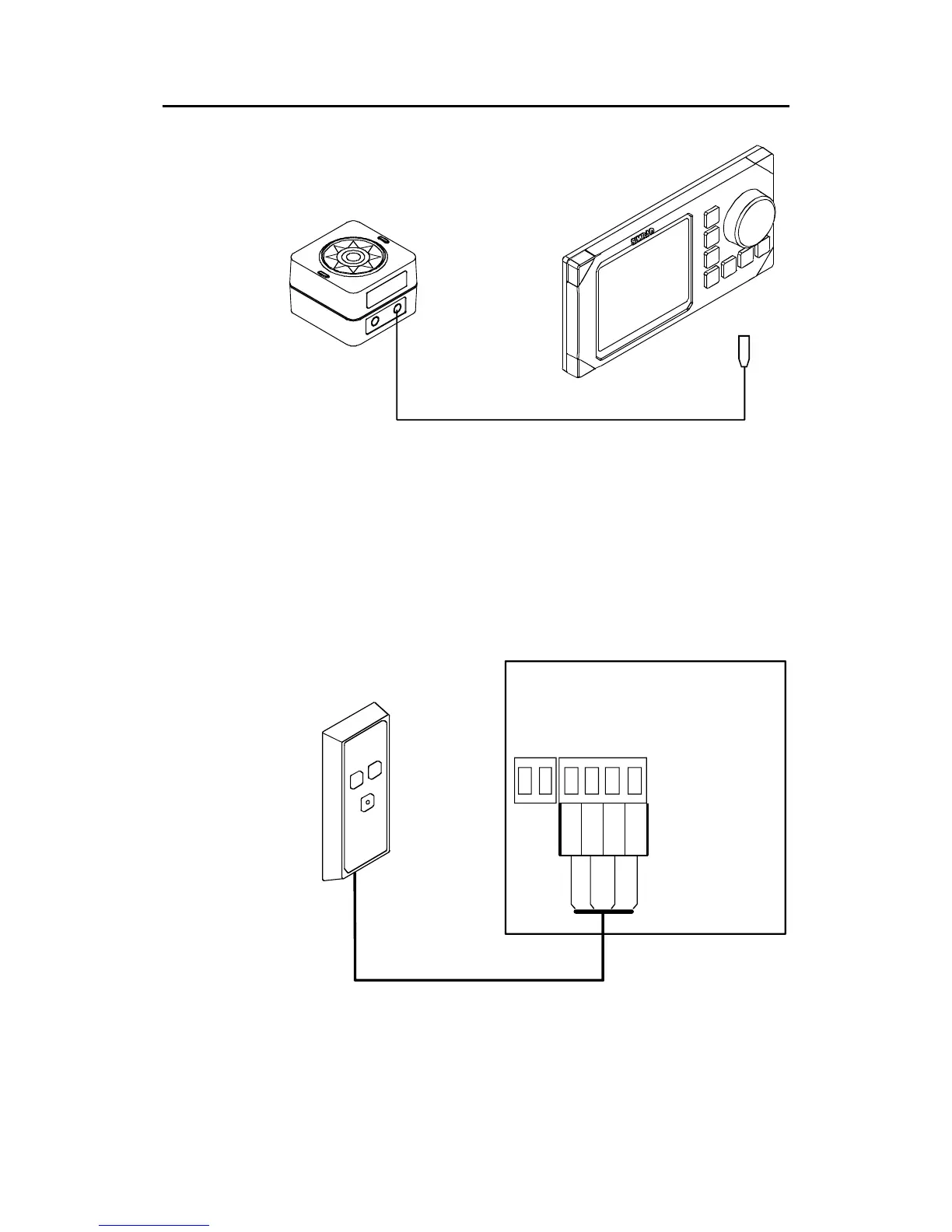

Figure 3-9 RC36 connection to autopilot control unit
Plug the RC36 into a Robnet2 connector (see Figure 3-5).
3.10 R3000X Remote Control installation
R3000X should be mounted in the supplied bracket that can be
fixed by four mounting screws. The unit is weather proof and
can be mounted outdoor.
TB1
AUTOPILOT COMPUTER
TB2 NFU
R3000X
REMOTE CONTROL
GND PORT STBD LAMP
Blue Red Green Yellow
1
4
Figure 3-10 R3000X connection
