Echosounder
The Echosounder function provides a view of the water and bottom
beneath your vessel, allowing you to detect fish and examine the
structure of the sea floor.

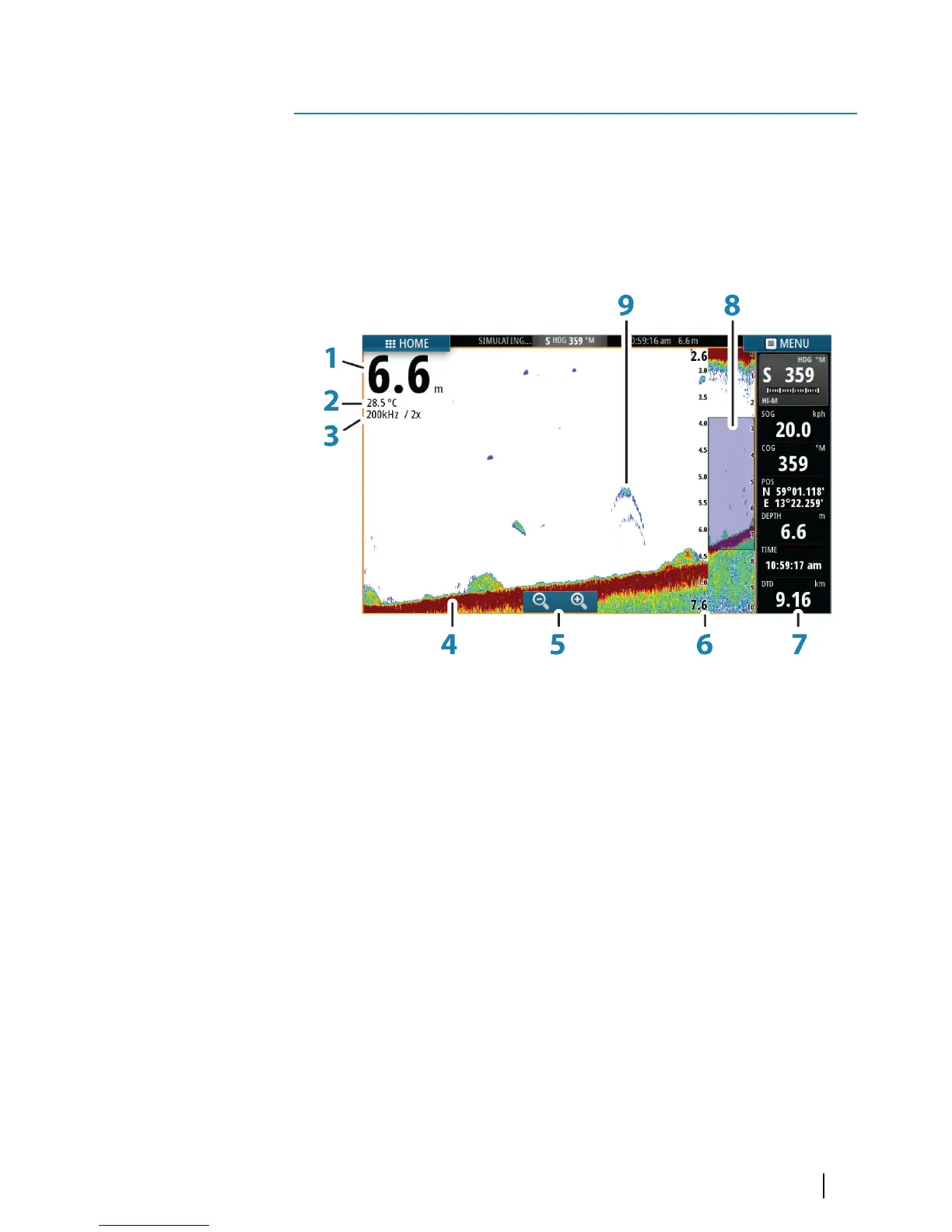

The Echosounder image
1 Depth
2 Temperature
3 Frequency and Zoom scale
4 Bottom
5 Zoom buttons
6 Depth Range scale
7 Instrument panel
8 Zoom column
9 Fish arches
