Overview

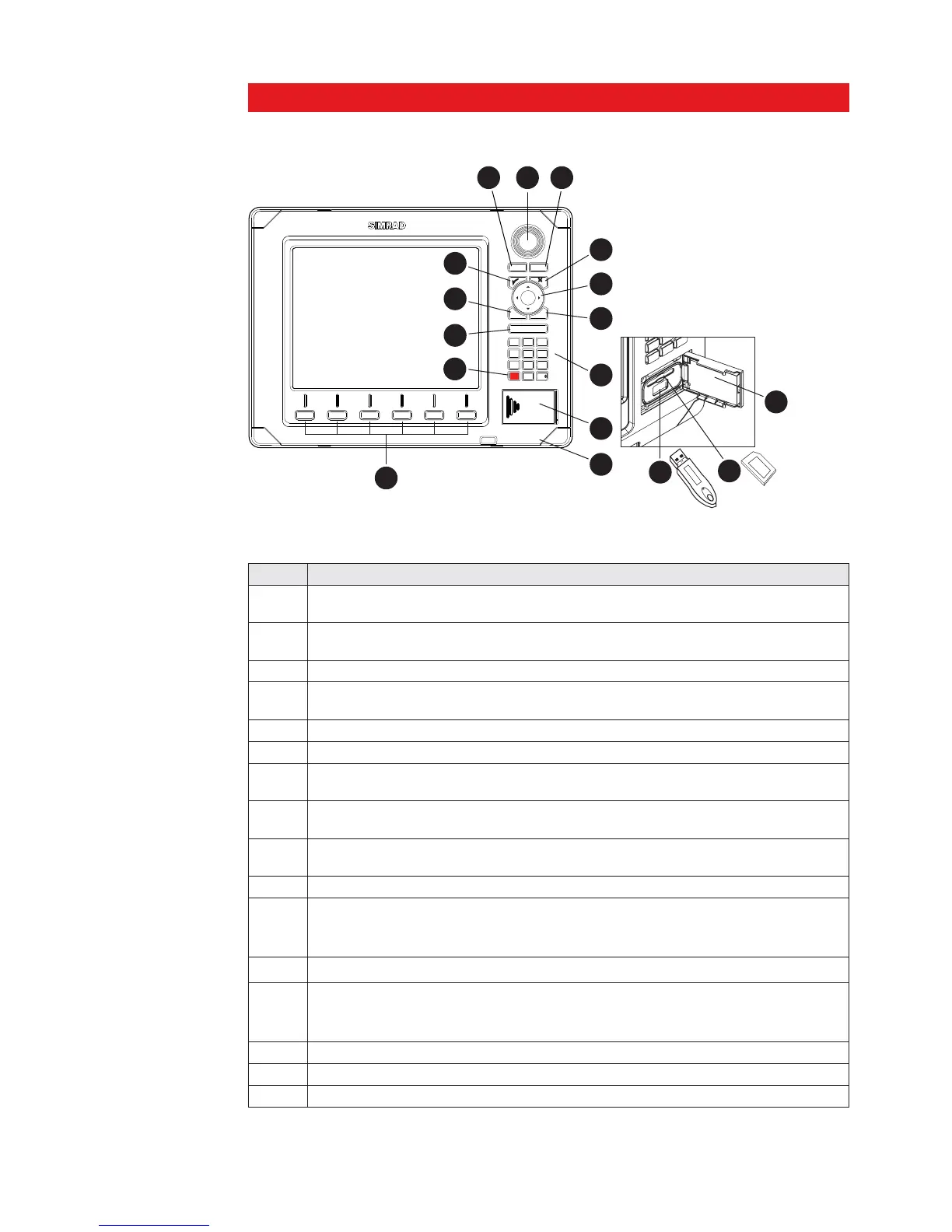

NSE8 and NSE12 front
ECHORADARCHART NAV INFO PAGES
MENU
PLOT GO TO
MARK VESSEL
WIN
IN
MOB
ABC DEF
123
JKLGHI MNO
456
TUV PQRS WXYZ
7
STBY
AUTO
PWR
8
0
9
OUT
1
2 4
6
7
9
11
5
8
10
13
13
14
15
16
12
3
Key Description
1
Direct Access Keys (DAK). Provide direct access to a page. Repeated presses
of each DAK cycles through several different pages that relate to the DAK
2
PLOT/MARK key. A short press activates the Plot menu, a long press positions
a waypoint at the vessel position
3 Rotary knob. The function of the knob is depending on active context
4
GOTO/VESSEL key. A short press activates the Goto menu, a long press cen-
ters the chart to vessel position
5
 key — Activates/confi rms current selection
6 X key cancels changes and returns to previous menu level
7
Cursor keypad used to move the cursor on the display, and to maneuver in the
menu system
8
MENU key. Used to display the context menu for the active panel/overlay, and
for selecting options in edit mode. . 2 x MENU for system settings menu
9
WIN key, used on multiple panels pages. A short press toggles between the
panels, a long press expands active panel to a full page panel and back again
10 Zoom buttons for radar, echosounder and chart pages
11
Alpha numeric keypad used for entering numbers and text in dialog boxes.
A long press on the “1” key will position a Man Over Board (MOB) waypoint at
the vessel’s current position
12 STBY AUTO - Future use
13
Media port door. Press and slide to the right to open.
Media can be used for optional Navionics chart data, software updates, trans-
fer of user data and system backup
14 SD /MMC media card slot.
15 USB port
16 Removable bezel
