Simrad NSE12 Installation Manual

Overview | 9

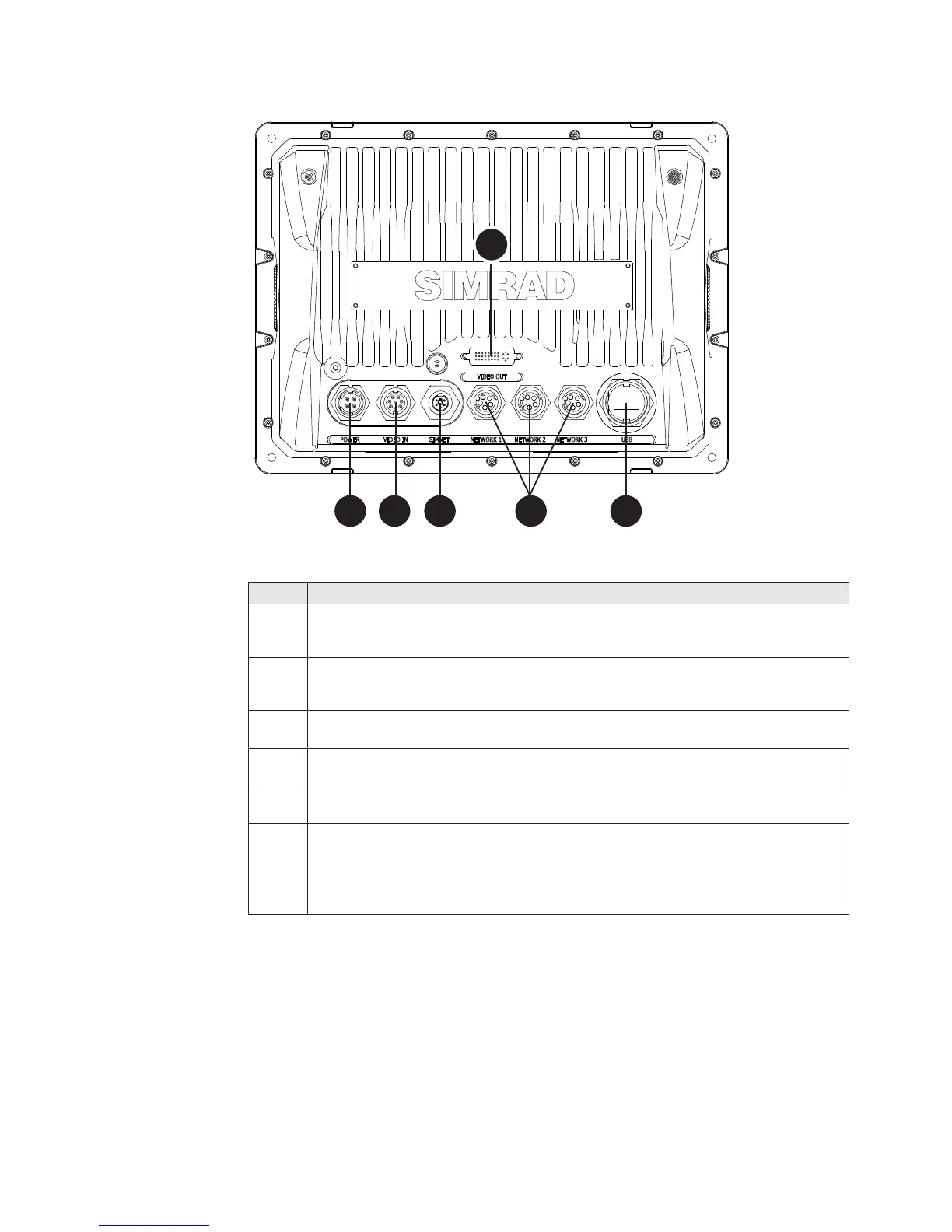

NSE8 and NSE12 rear
1
2 5
6
3
4
Key Description
1
Power. For power input 12 or 24 V DC input (see “Connecting power” on page
24), Power control (see “Power control” on page 24) and external alarm
(see “External alarm” on page 27).
2
Video In. Supplied cable provides two composite video inputs (see “Video In”
on page 36) and one RS422 port (NMEA0183 TX, RX) (see “NMEA0183 wir-
ing” on page 35)
3
SimNet. Connects NSE display to a SimNet or NMEA2000 network (see
“SimNet” on page 28).
4
Video Out. Connect to an external monitor via optional DVI cable (see “Video
Out” on page 37).
5
Network 1, 2 and 3. Three Ethernet network ports for connecting to other NSE
displays and Network modules. (see “Ethernet” on page 33)
6
USB. Used for Software updates, chart data base updates, backing up way-
points routes and tracks. A better option to the front port if it is exposed to
the weather.
Note. A Water proof optional USB cable is available to extend this port to a dry
location. (AA010078 USB dash mount)
