Simrad NSE12 Installation Manual

Wiring the NSE | 43

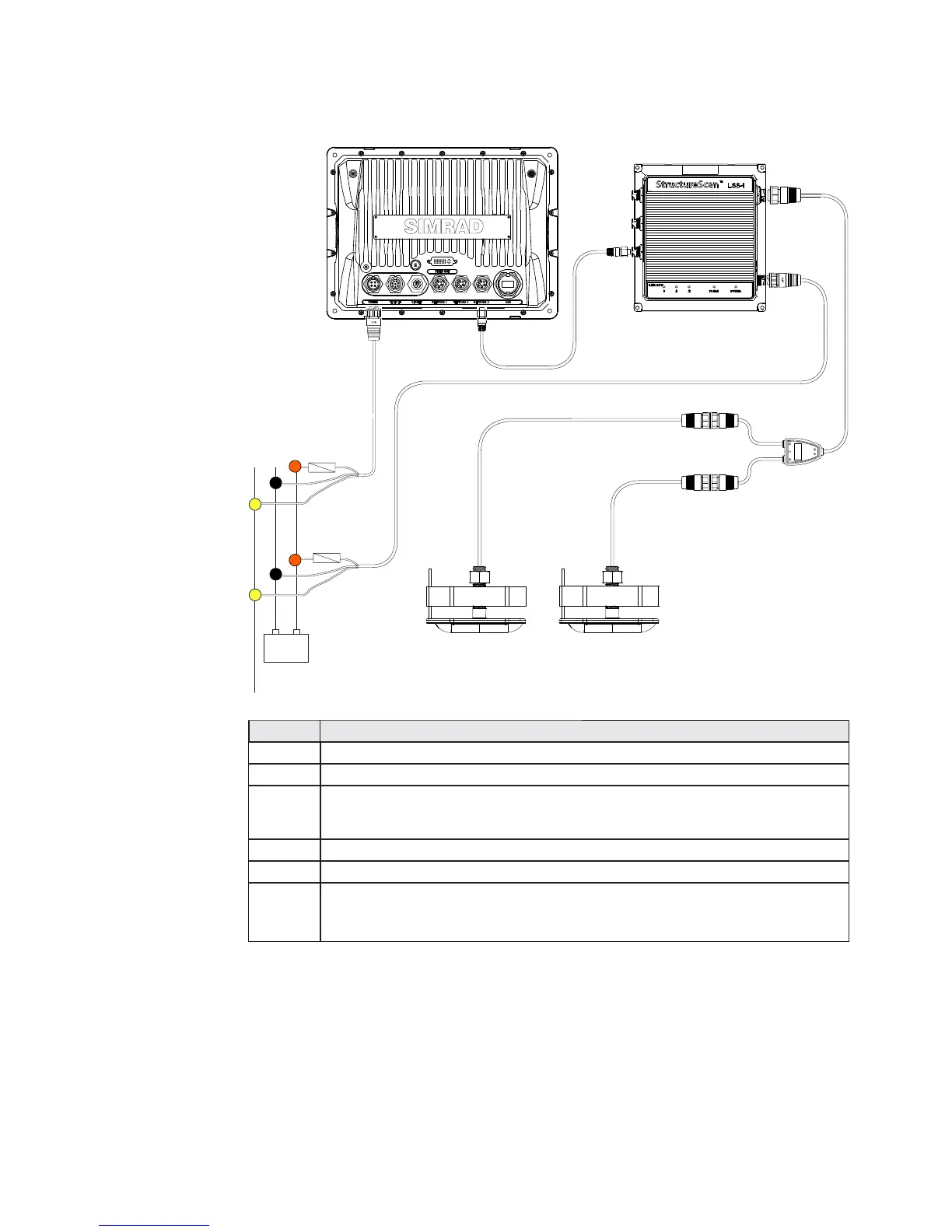

Connecting LSS-1 StructureScan
Key Description
ANSE display
B LSS-1 StructureScan module
C Ethernet cable yellow 5 pin (see “Ethernet cables (yellow)” on page 78)
for more cable length options. Cable can be connected directly to NSE or via
a Network Expansion Port (see “Ethernet” on page 33)
D 12 or 24 V DC
E StructureScan Y-cable (optional)
F LSS-1 Thru-hull transducer
See the LSS-1 Sonar Module manual for further transducer mounting
information.
+
_
A
C
D
LTW LTW
LTW LTW
LTW
B
F
E
