Simrad NSE12 Installation Manual

Wiring the NSE | 37

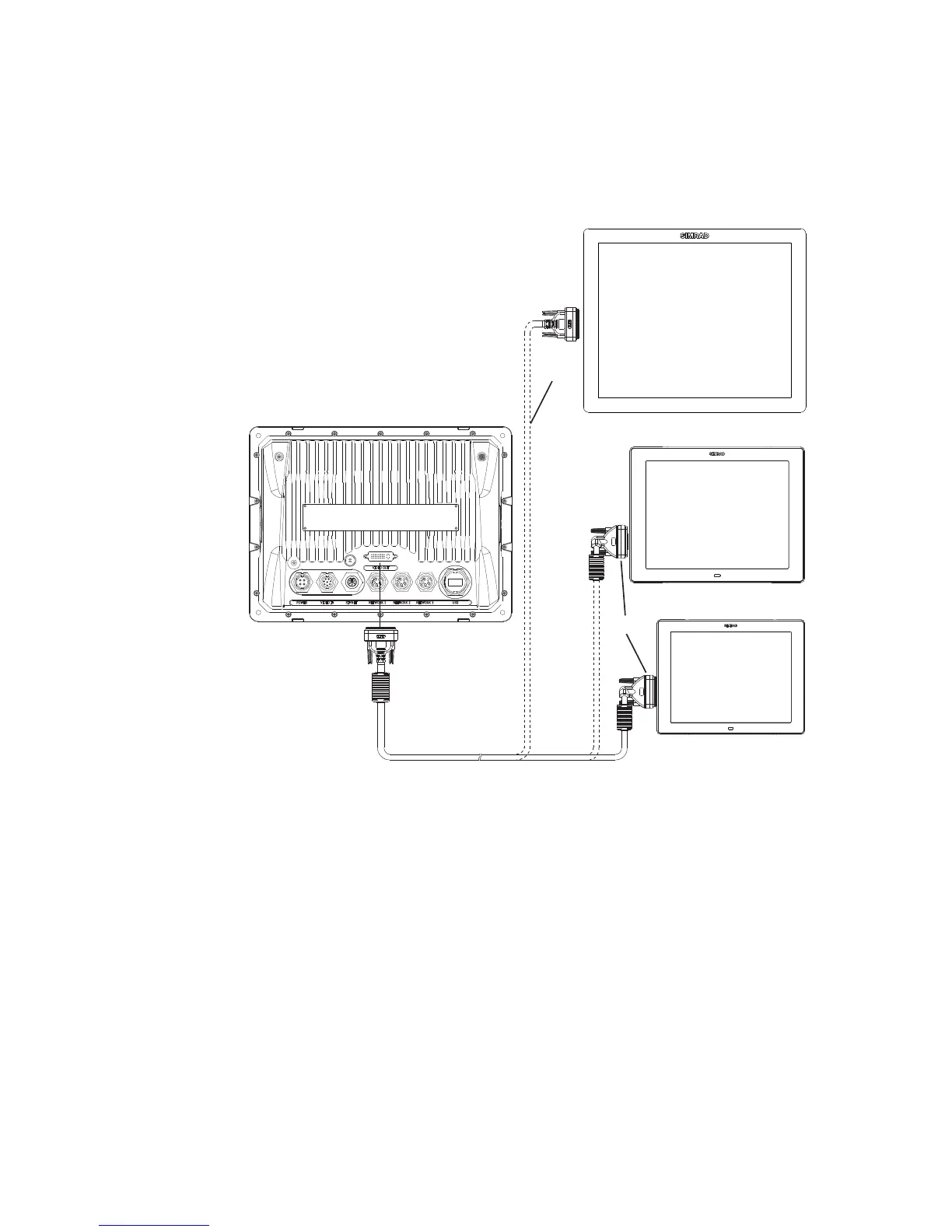

Video Out
The NSE display has a DVI-I Video connector. Connect a second display to replicate what
is on the screen of the NSE display.
A DI10 display can only interface to NSE8 and DI15 only to NSE12 due to fixed
resolutions.
The MO-L series monitors or another scalable monitor or TV can be connected to either
NSE8 and NSE12
VIDEO OUT
DI15
From NSE12
only
(1024x768)
DI10
From NSE8
only
(800x600)
A
B
MO15-L, MO17-L,
or MO19-L
(scales to suit input)
See page 78 for monitor and cable options and part numbers.
