Data setup
Data set up is required on initial start up of the system, or if any part of the SimNet or
NMEA 2000 network has been changed or replaced.
From Network in the main system settings menu you can
• Select SimNet / NMEA2000 data sources either automatically
or manually
• Configure SimNet / NMEA2000 devices
• Control how device parameters such as backlighting, units
and damping are grouped on the network
• Share waypoints via SimNet or NMEA2000
• Monitor and diagnose both Ethernet and SimNet Networks
• Setup NMEA0183 port, baud rate and output data
• Control damping
SimNet / NMEA2000 setup
Source selection (Auto select)
SimNet Plug and Play offers easy and uncomplicated interfacing to data sources with
automatic system setup.
The Auto Select option will look for all sources connected to the NSE system. If more
than one source is available for each data type, the NSE will automatically select from an
internal SimNet priority list.
Make sure all devices are connected and are turned on

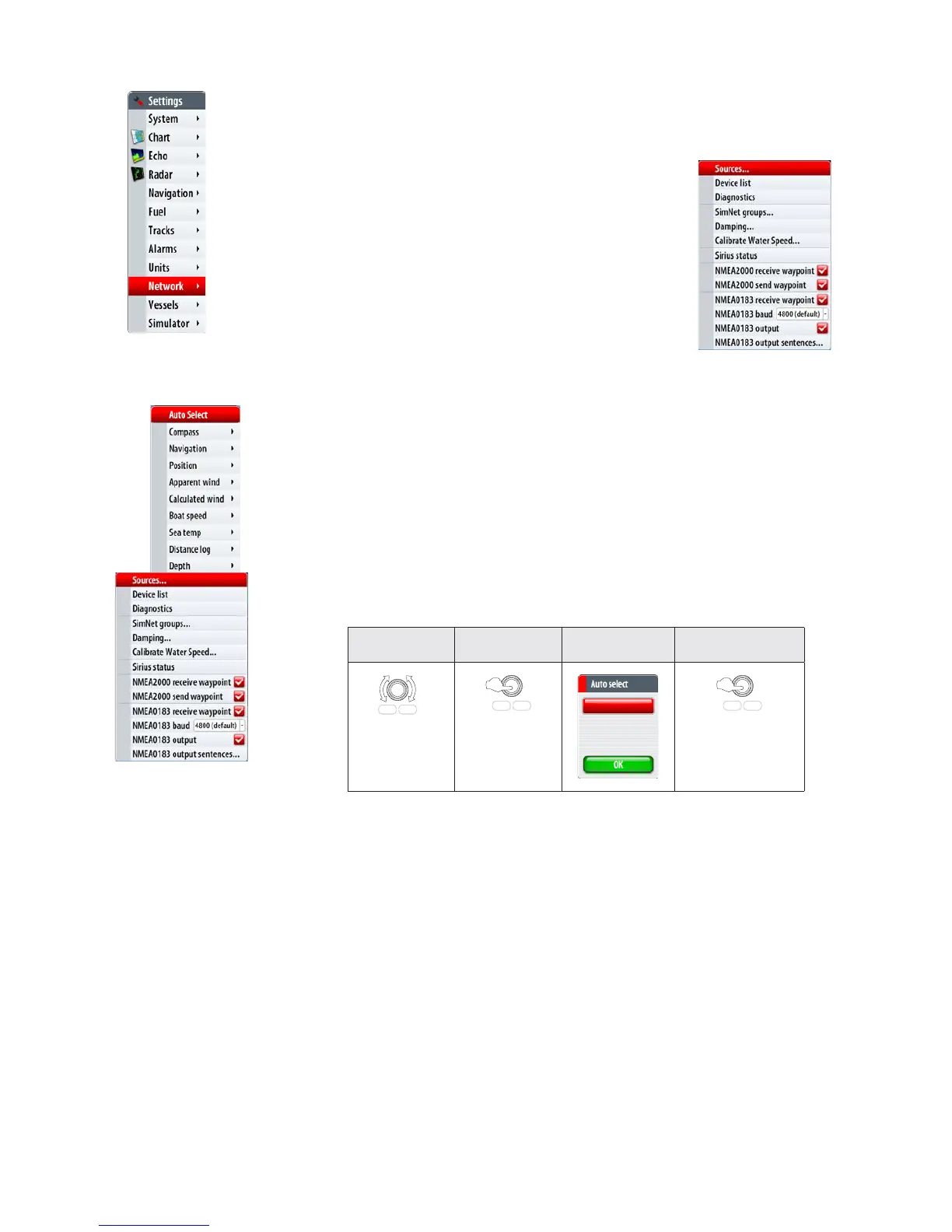

Step 1 Step 2 Step 3 Step 4
PLOT
MARK
GOTO
VESSEL
Choose
Auto Select
PLOT
MARK
GOTO
VESSEL
Start Auto
Select
PLOT
MARK
GOTO
VESSEL
Select OK
when fi nished
Source selection (Manual)
Devices can be selected manually to be the preferred source. This is useful if you have
more than one of the same type of device on the network e.g. two GPS antennas.
It is also useful if you prefer that one display is to get position from one GPS antenna
and another display to get position from another GPS antenna.
Group Source Selection (SIMRAD)
SimNet products such as the NSE, IS20 or AP24 have the ability to;
• use data sources that all other products on the network use, or use a data source
independently from other units.
• globally change all displays over to a different source from any display. (This will only
include products set to Simrad Group mode.)
When configuring data sources on an NSE display you can select or change a source
used by all the displays on the SimNet network, this is called group source selection.
For example you can select to change the position source globally on all displays that are
