Commission the system
Turning on the system for the fi rst time
Before starting the system for the first time, check the following;
• Check radar is physically clear to rotate (where ‘open array’ scanner is fitted)
• Leave a HD pulse radar in standby for 30 minutes before transmitting for the first
time
• Check all personnel are clear of radar beam (HD Radar)
• Check all wiring is correctly connected. Apply power to the breaker
To turn ON the display, press and release the PWR key.
To place display in to Standby, press PWR key and select stand by.
To turn OFF the display, press and hold PWR key for three seconds.
If you turn the unit ON when no external equipment is connected you will be asked to
run in simulator mode.

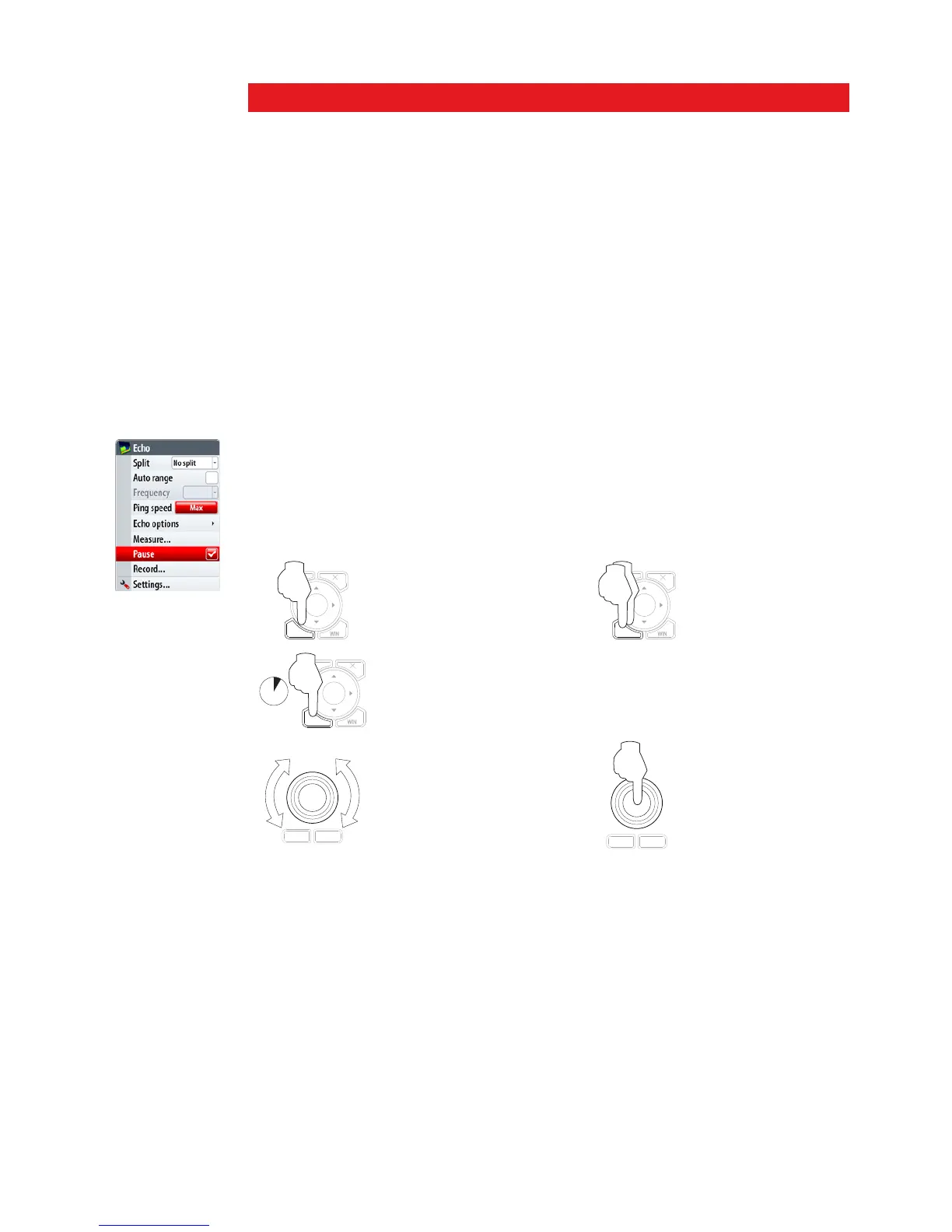

Operating the menu system
In this manual you will see few direct text references to keys, menus and menu entries,
and few step-by-step descriptions. By using graphics we will guide you to the key and
the required menu selections.
In the illustrations throughout the commissioning section the following symbols are used:
MENU WIN
Single short
press on illus-
trated key
MENU WIN
x2
Press twice
on illustrated
key
MENU WIN
3 s
Press and hold
on illustrated key
with time indica-
tion
PLOT
GO TO
MARK
VESSEL
Rotate rotary
knob
PLOT
GO TO
MARK
VESSEL
Single short
press on ro-
tary knob
References to keys on the operator panel are written in boldface, e.g. WIN key.
For further information on the operating the system refer to the Operation Manual
