Installing the display | 13

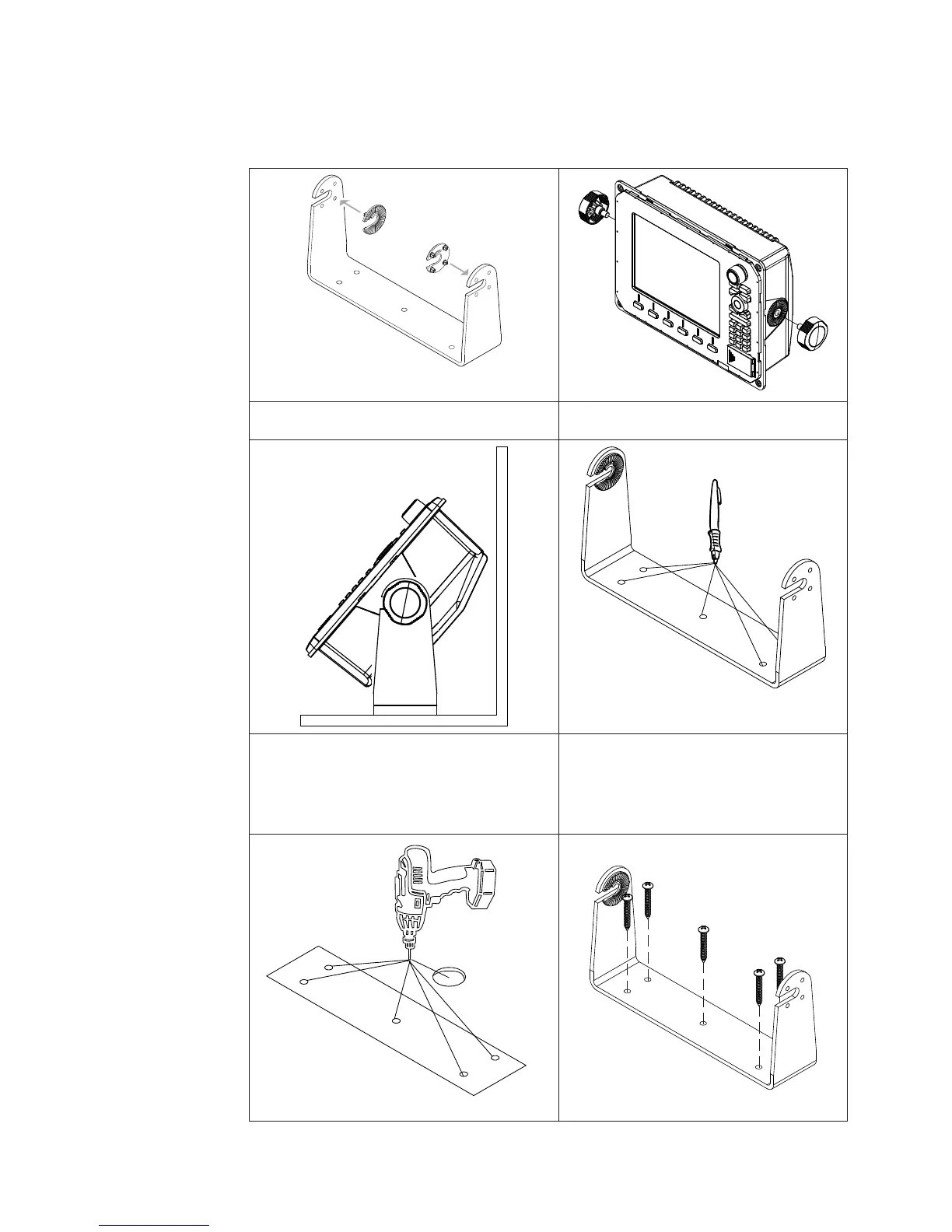

Bracket Mount
An alternative to flush mounting the NSE8 or NSE12 is to bracket mount the unit. This
method has the advantage that the display can easily be removed when not in use. The
display may be tilted for best possible viewing angle when bracket mounted.
1 Press the ratchet washers into the
bracket.
2 Loosely screw securing knobs to
the Display unit.
3 Temporarily mount the display unit
in the bracket and make sure the
display can be adjusted to the correct
angle without interfering with the
surroundings. Allow space for cables
attached to the rear of the unit.
4 Remove the display unit and
use the mounting bracket as a
template to mark the ve positions
of the screw holes.
