Simrad NSE12 Installation Manual

Wiring the NSE | 41

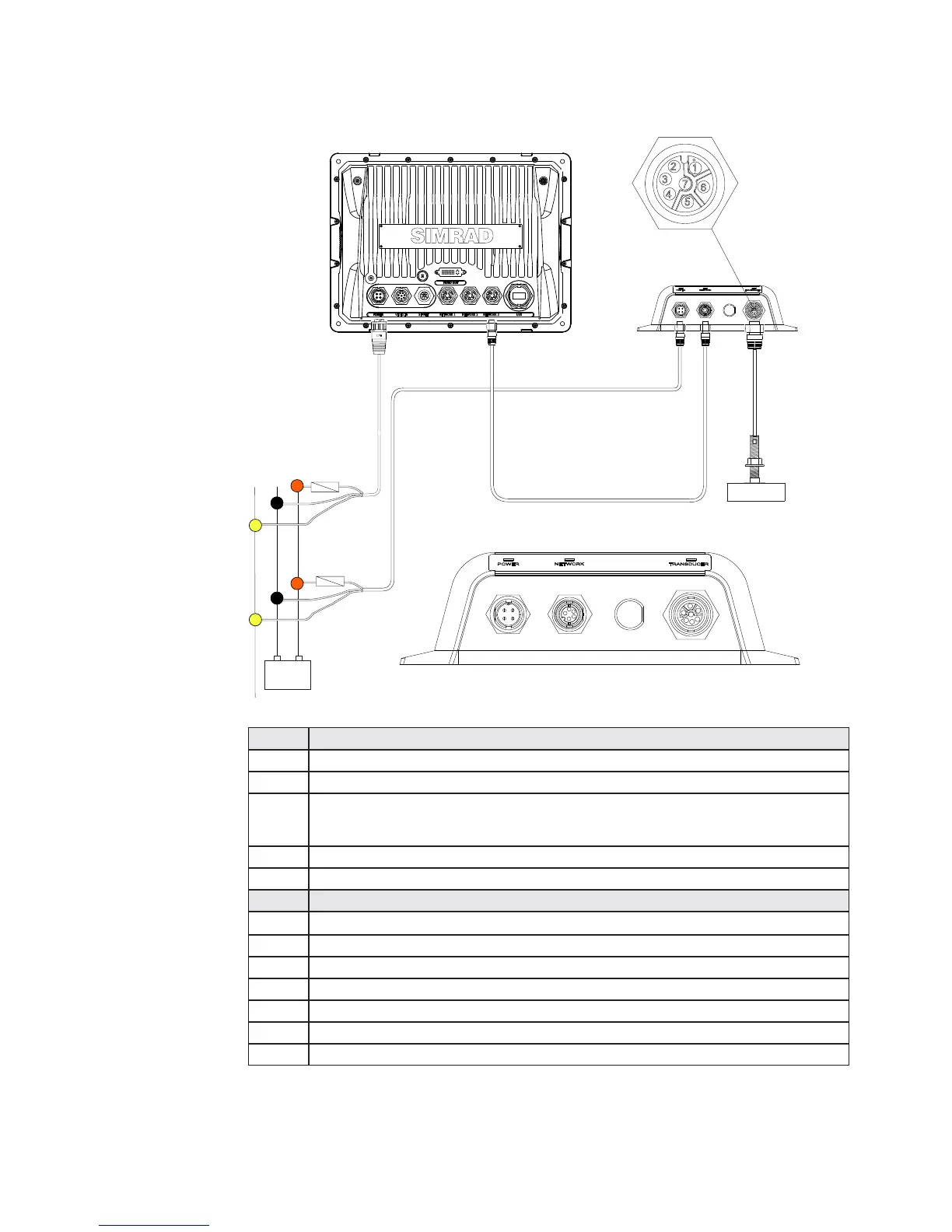

Connecting BSM-1 Broadband Echosounder
+
_
A
B
B
C
D
E
F
1
2
3
4
5
7
6
Key Description
ANSE display
B BSM-1 Broadband Echosounder module
C Ethernet cable yellow 5 pin (see “Ethernet cables (yellow)” on page 78) for
more cable length options. Cable can be connected directly to NSE or via a
Network Expansion Port (see “Ethernet” on page 33)
D 12 or 24 V DC
E Transducer:. (see “Compatible BSM-1 Transducers” on page 77)
F Transducer Connector
Pin 1 Depth +
Pin 2 Speed
Pin 3 Speed power
Pin 4 Temp
Pin 5 Depth -
Pin 6 Shield
Pin 7 Temp / speed ground
