Simrad NSO evo3S MPU User Manual

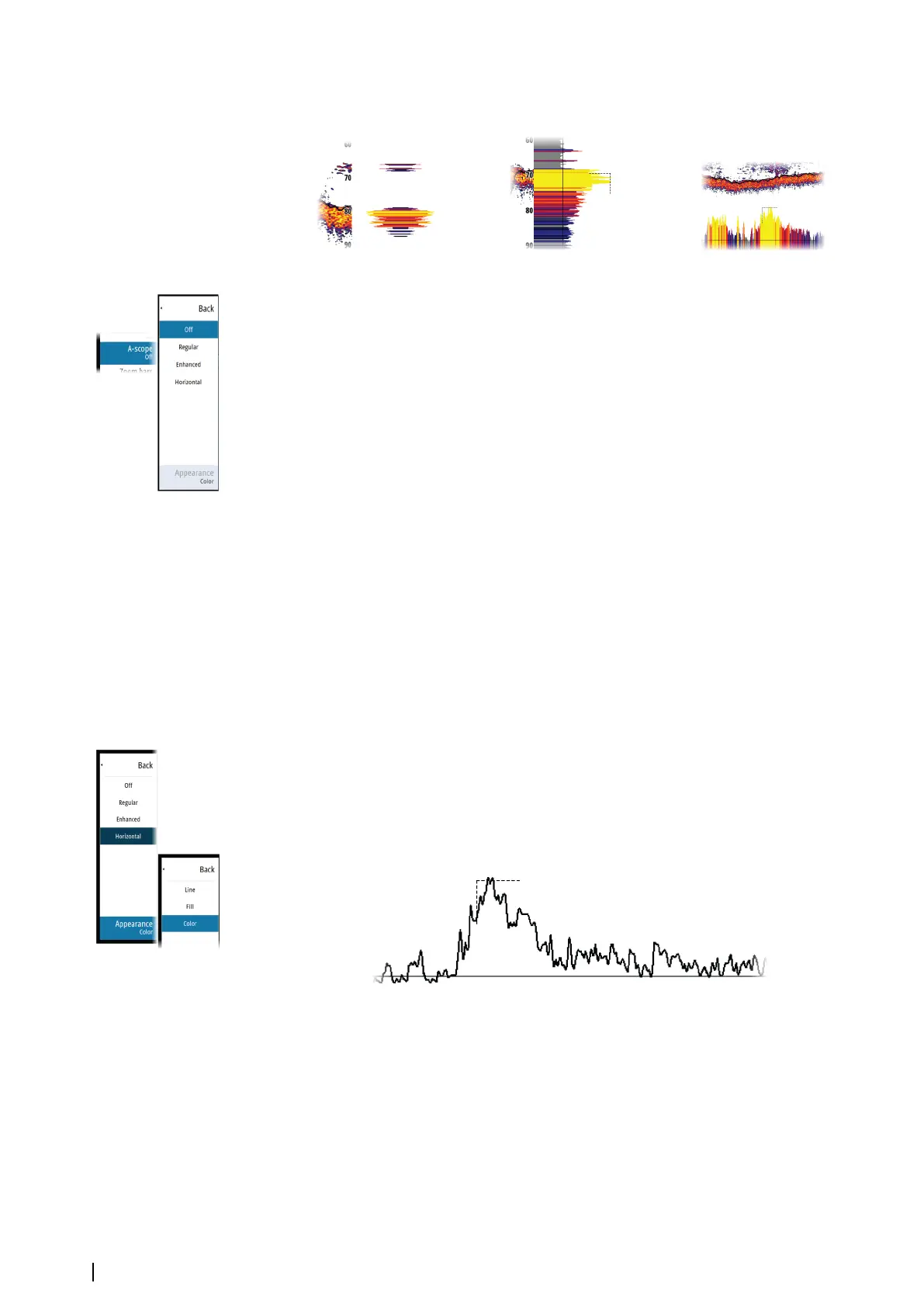

Amplitude scope options
Regular Enhanced Horizontal
Off
Removes the amplitude scope from the panel.
Regular
Displays the amplitude scope vertically on the side of the panel. There are no customizable
options to the appearance of the regular amplitude scope display.
If the cursor is placed on the panel, the amplitude scope continues to display the newest
echo sounding as it appears on the panel.
Enhanced
Displays the amplitude scope vertically on the side of the panel. Select the appearance menu
option to change the enhanced amplitude scope display.
If the cursor is placed on the panel, the amplitude scope displays the echo sounding at the
cursor.
Horizontal
Displays the amplitude scope horizontally at the bottom of the panel. Select the appearance
menu option to change the horizontal amplitude scope display.
If the cursor is placed on the panel, the amplitude scope displays the echo sounding at the
cursor.
Appearance
The appearance menu option is available when the amplitude scope is set to enhanced or
horizontal.
Line
Displays the amplitudes as a single line.
Fill
Illustrates the amplitudes with a gray fill color.
70
Echosounder | NSO evo3S MPU Operator Manual
