Simrad NSO evo3S MPU User Manual

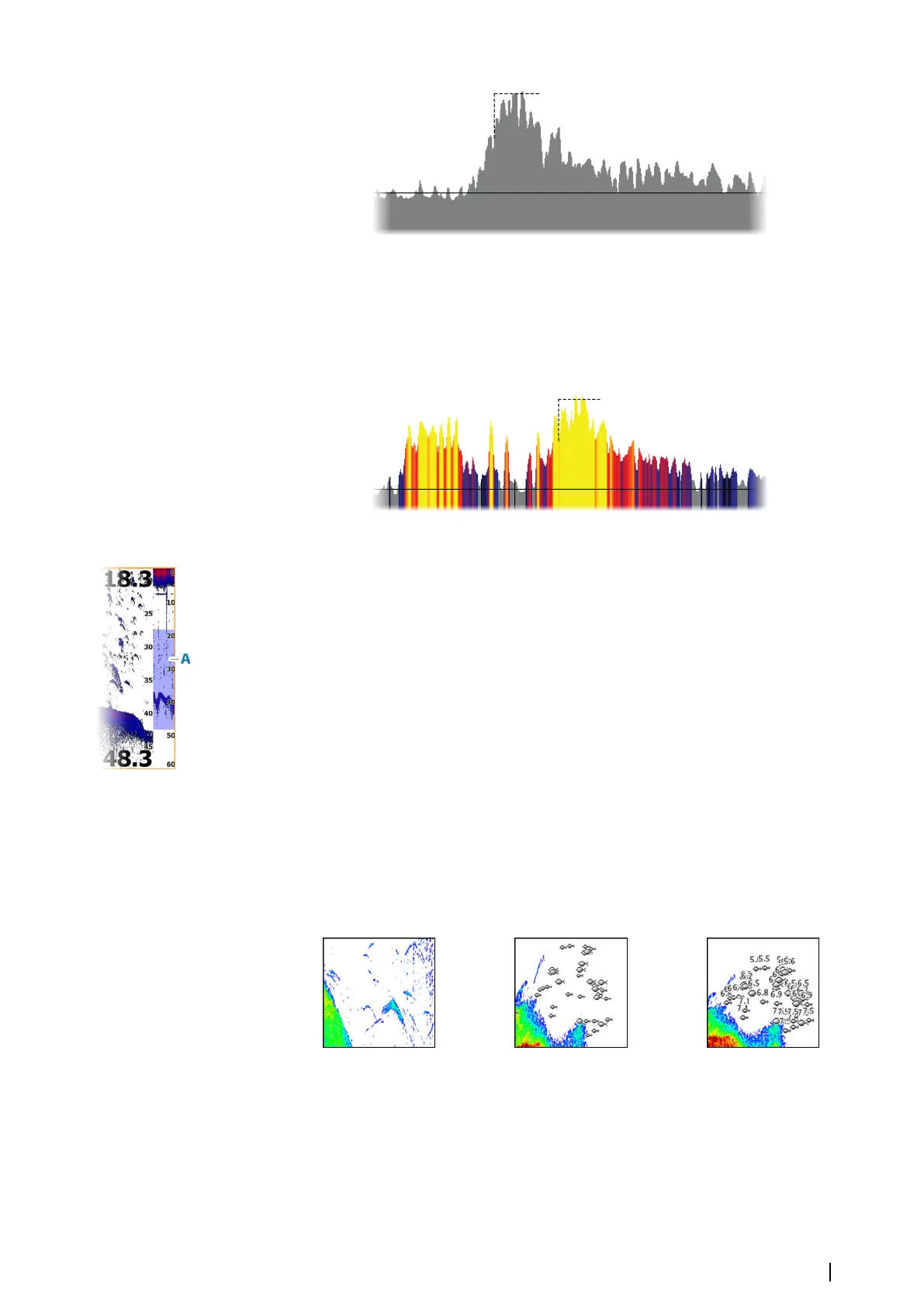

Color
Displays each amplitude value with the same color as in the panel. For amplitudes close to or
below the gain threshold, the color is gray. The gray amplitudes indicate no echo target
returns. The gray amplitudes replace the background color that is shown on the panel which
also indicates no echo targets.
Zoom bar
The zoom bar (A) is displayed when you zoom the image.
Drag the zoom bar vertically to view different parts of the water column.
Overlay DownScan
When a DownScan capable transducer is connected to your system, you can overlay
DownScan images on the regular Echosounder image.
When overlay DownScan is activated, the Echosounder panel menu expands to include basic
DownScan options.
Pause
Pauses the image, allowing you to examine the image in detail.
The pause function stops the echosounder from pinging. The system is not collecting data
when paused in this manner.
Fish ID
You can select how you want the fish targets to appear on the screen. You can also select if
you want to be notified by a beep when a fish ID appears on the panel.
Traditional fish arches Fish symbols Fish symbols and depth indication
Ú
Note: Not all fish symbols are actual fish.
Color marker
This option allows you to change certain colors on the image.
Ú
Note: Only the colors above the sea floor are changed in the image.
Echosounder | NSO evo3S MPU Operator Manual
71

Simrad NSO evo3S MPU Specifications

General

Video Output	2 x HDMI
Connectivity	Wi-Fi, Bluetooth
Operating System	Linux
Ethernet Ports	2
USB Ports	2
Operating Voltage	12/24V DC
Power Supply	12/24V
