6. Assembly
- 57 -
951-180-083-EN
Version 01

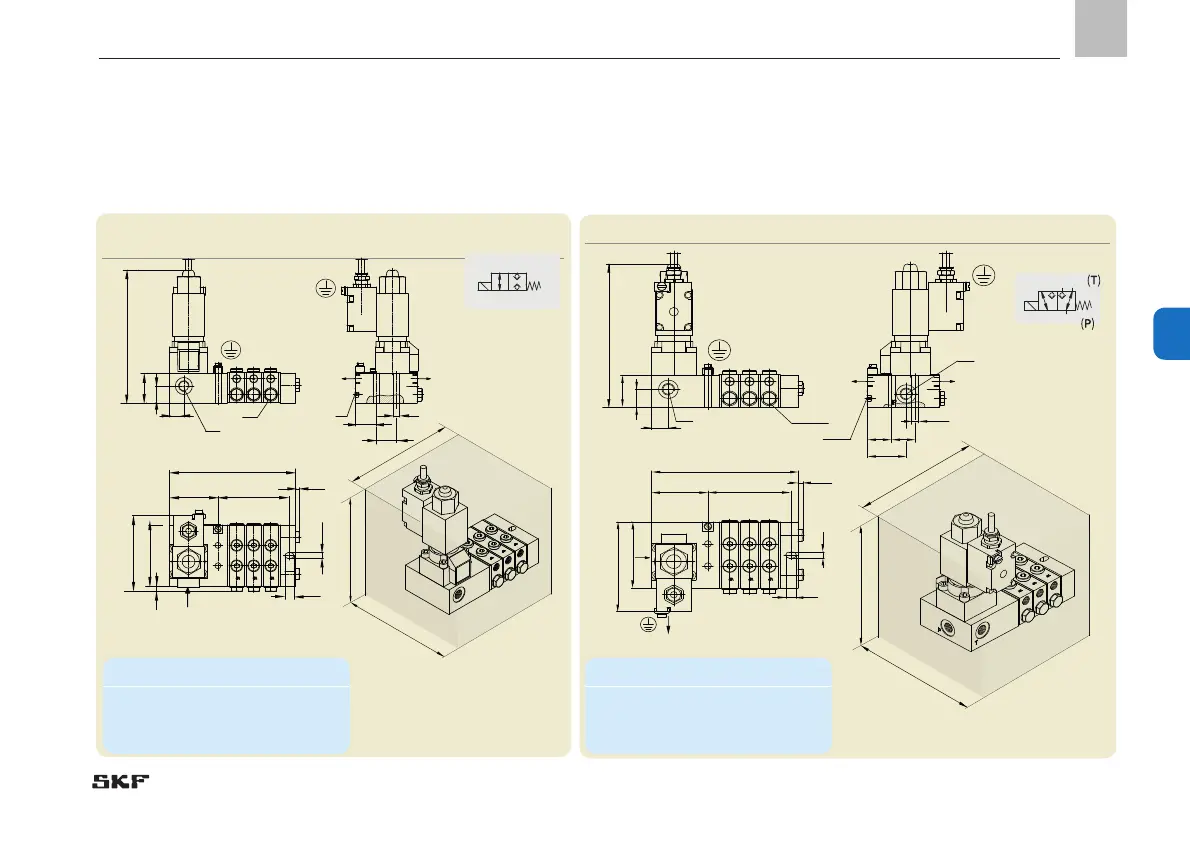

Fig. 15 VP progressive metering device with 3/2 directional solenoid valve
HM
BM
LM
ø7
24
24
17
20
35
156.3
6.5
57 L1 ±2
L2 ±2
max.5
10.5
72
98
(für VPG und VPM)
G1/4
39
SW5
SW13
G1/4
BA
C
Fig. 14 VP progressive metering device with
2/2 directional solenoid valve
HM
BM
LM
ø7
24
24
17
20
35
156
6.5
57 L1 ±2
L2 ±2
max.5
10.5
72
89
6
(für VPG und VPM)
G1/4
SW13
SW5
B
A
6.3.5 VP progressive metering device with 2/2 directional
solenoid valve
6.3.6 VP progressive metering device with 3/2 directional solenoid
valve
Minimum mounting dimensions
BM = Width: 130 mm
HM =
Height: 185 mm
LM =
Length: L2+110 mm
Minimum mounting dimensions
BM = Width: 130 mm
HM =
Height: 185 mm
LM =
Length: L2+110 mm
Seat valve, double-
sided blocking,
de-energized C
connected to B, A
blocked
Seat valve, double-
sided blocking, de-
energized closed
