6
EN
6. Assembly
- 81 -
951-180-083-EN
Version 01
Use only grounded steel pipelines.
For higher operating pressures up to 250
bar, SKF compression fittings conforming
to DIN 2353 can be used. If using fittings
from other manufacturers, pay careful
attention to the assembly instructions
and technical specifications provided by
the manufacturer.
6.8.1 Assembly process
- See Figure 36
Deburr the connecting end of the lubrica-
tion line (1).
Loosen the union nut (2) and cutting
sleeve (3) from the threaded socket (4).
Screw the threaded socket into the me-
tering device outlet (4) and tighten.
Insert the lubrication line (1) into the
union nut (2) and cutting sleeve (3).
Insert the lubrication line (1), union nut
(2), and cutting sleeve (3) into the thread-
ed socket (4).
Apply the union nut (2) to the thread of
the threaded socket (4) and gently tighten
the union nut (2) by hand.
Tighten the union nut (2) with an open-
end wrench.
Tightening torque:
VP Chapter 6.3.2
VPK Chapter 6.4.2
VPB Chapter 6.5.2
1
4
2
3

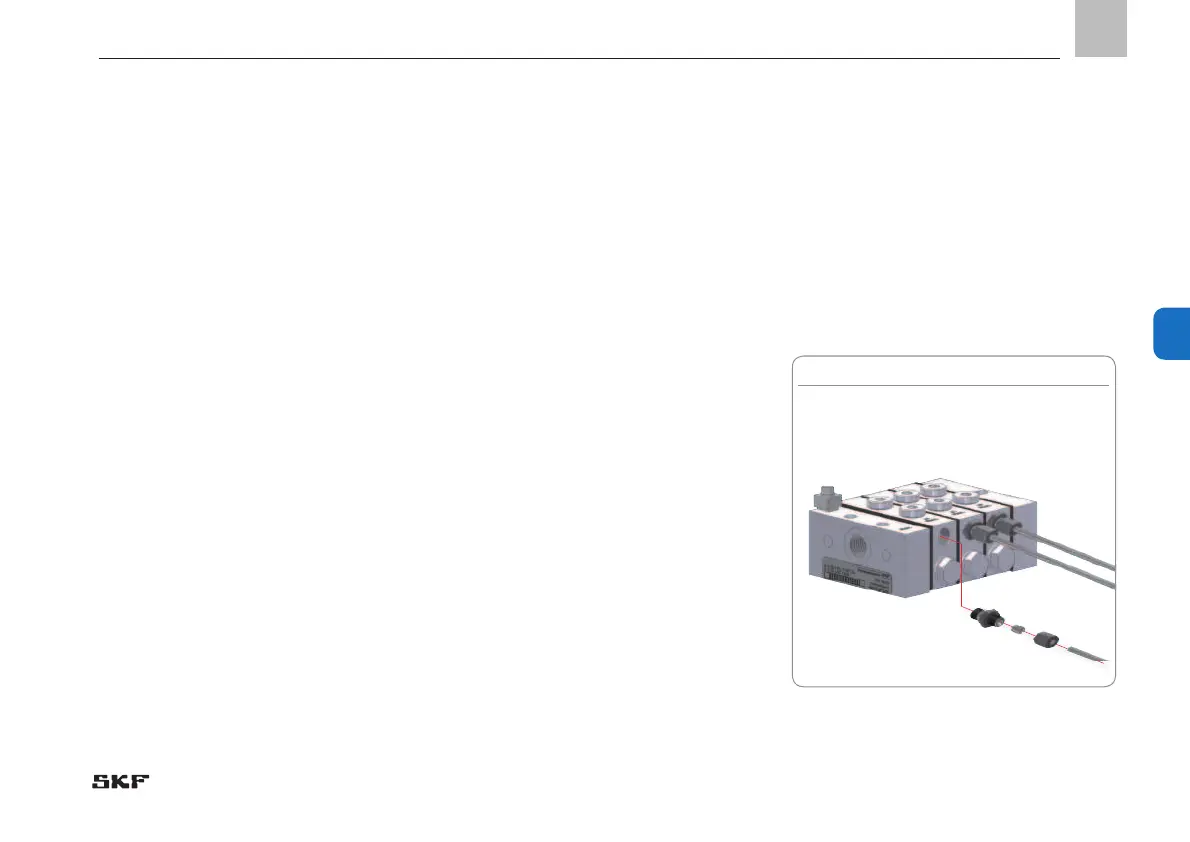

Fig. 36 Lubrication line connection
