6
EN
6. Assembly
- 65 -
951-180-083-EN
Version 01

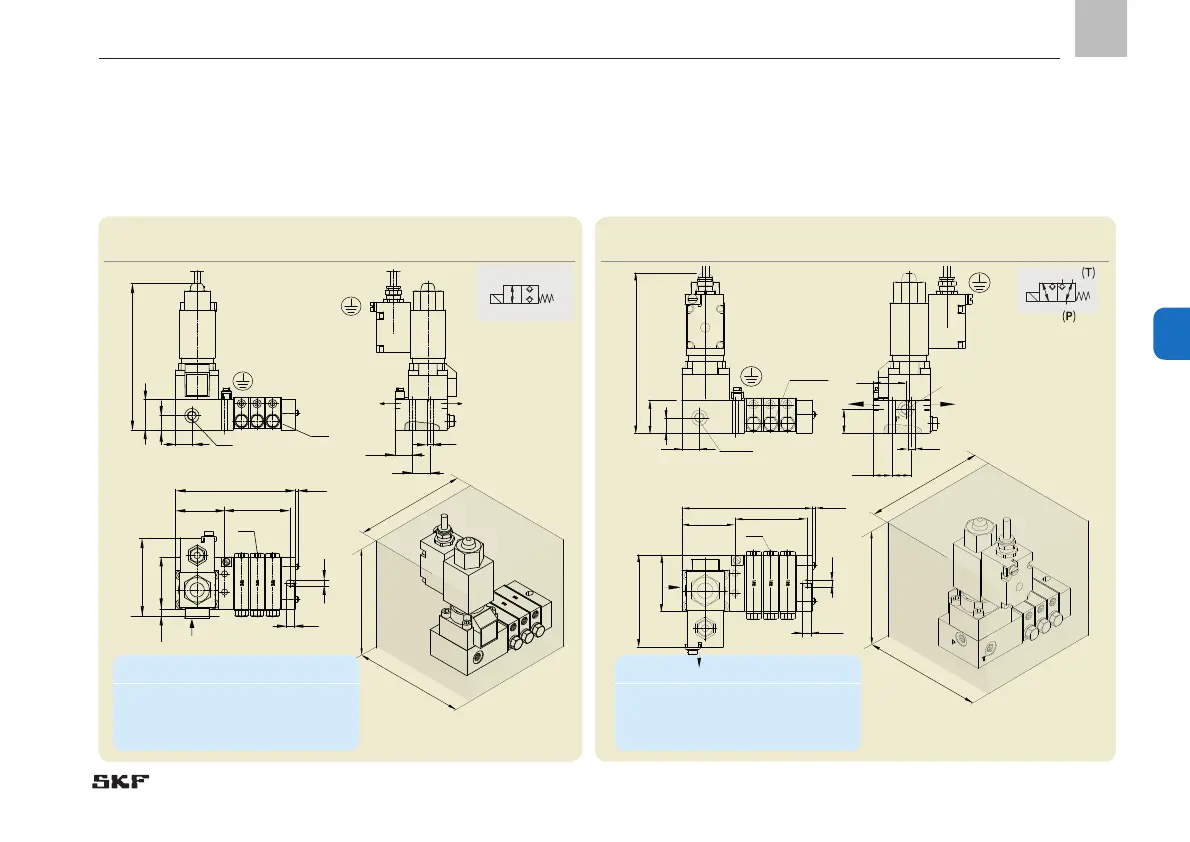

Fig. 22 VP progressive metering device with
3/2 directional solenoid valve
Fig. 21 VPKG progressive metering device
with 2/2 directional solenoid valve
6.4.5 VPK progressive metering device with 2/2 directional
solenoid valve
6.4.6 VPK progressive metering device with 3/2 directional sole-
noid valve
HM
BM
LM
51
L1 ±2
L2 ±2 max.5
8.7
6.5
54
81.5
7.5
SW5
17
15
32
153
(für VPG und VPM)
G1/8
SW12
ø6.4
17.5
19
B
A
Minimum mounting dimensions
BM = Width: 100 mm
HM =
Height: 180 mm
LM =
Length: L2+60 mm
Minimum mounting dimensions
BM = Width: 100 mm
HM =
Height: 180 mm
LM =
Length: L2+60 mm
HM
BM
LM
BA
C
51
L1 ±2
L2 ±2
max.5
8.7
6.5
54
89
SW5
17
15
32
153
(für VPG und VPM)
G1/8
SW12
ø6.4
17.5
19
23
31
G1/8
Seat valve, double-
sided blocking, de-
energized C connected
to B, A blocked
Seat valve, double-
sided blocking, de-
energized closed
