EN
6. Assembly
- 76 -
951-180-083-EN
Version 01
3
1
274
8
5
1
7
56
6
3
4
2
8
4
3
2 71
4
5
1
7
5 6
6
3
4
2
8
8
Plug screw 466-431-001
Plug
917-006-101 removed
Plug 917-006-101 (hexagon socket WAF 3)
Plug screw 466-431-001
Plug 917-006-101 (hexagon socket WAF 3)Plug
917-006-101 removed
Note!
Use only a fitting with check valve
(VPKM-RV-S4) on the metering
device outlet.
6.5.8 Consolidation of multiple outlets on the VPB (crossporting)

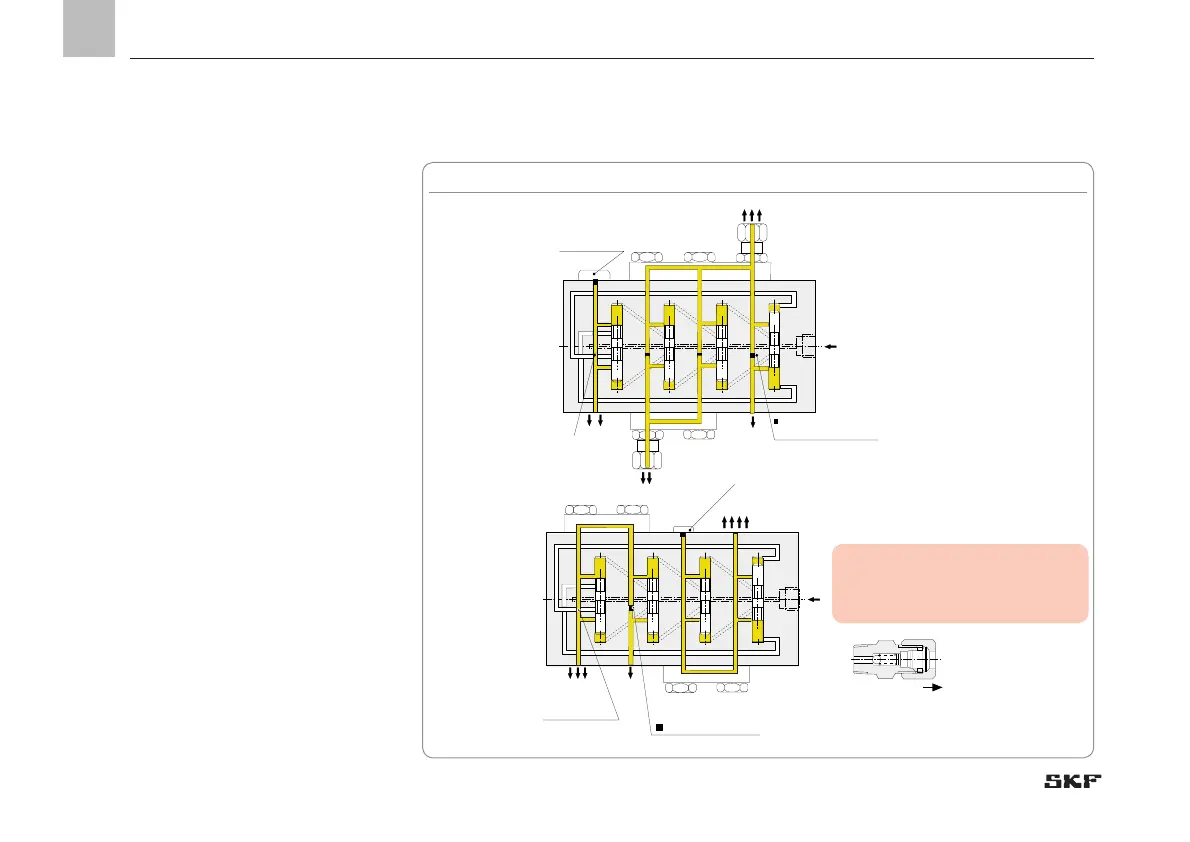

Fig. 30 VPB functional diagram of bridge designs (crossporting)
-See Figures 30 to 32
It is possible to subsequently connect two
opposite outlets internally by removing a
plug from the right outlet borehole and
closing one of the two outlets.
