6. Assembly
- 77 -
951-180-083-EN
Version 01

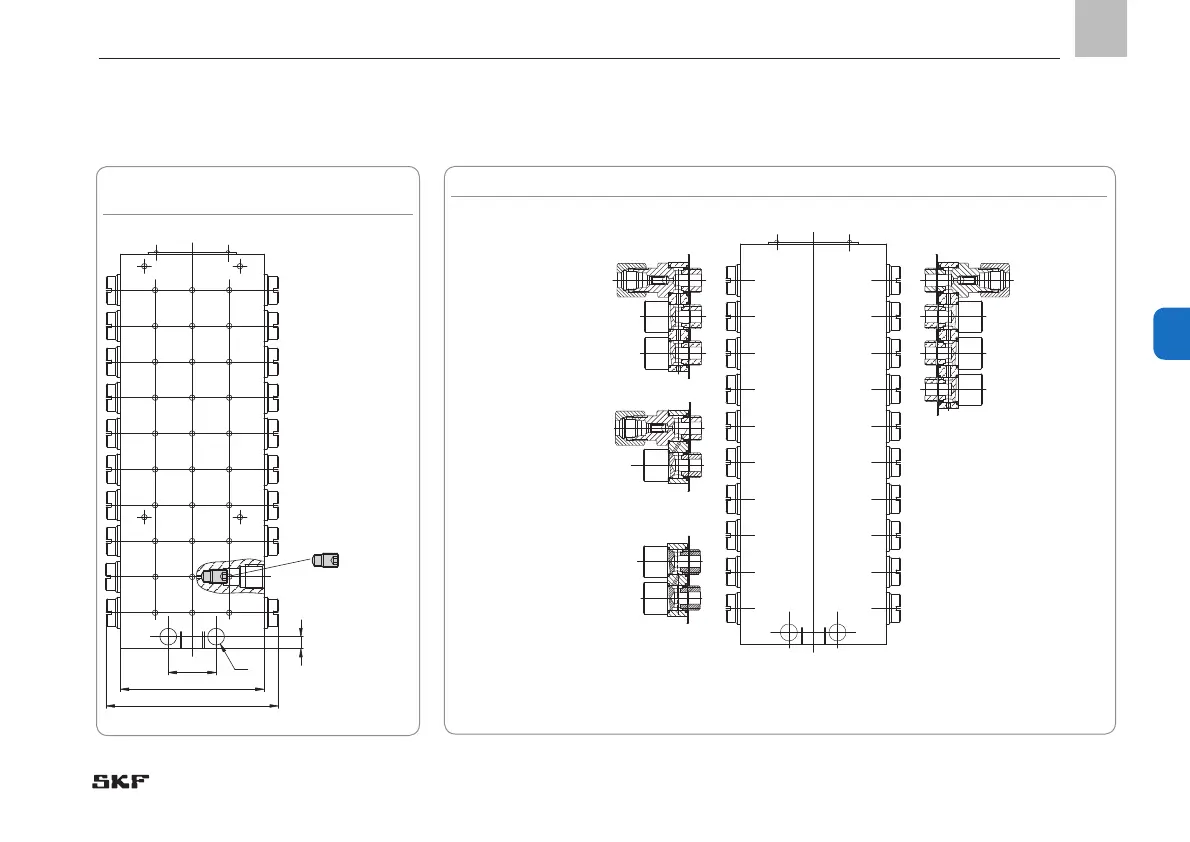

Fig. 32 VPB bridge designs (crossporting)
20
60
72
Ø7
5
1
3
5
7
9
11
13
15
17
19
2
6
8
10
12
14
16
18
20
Outlet boreholes
At top, viewed
from lubricant
inlet
Plug
917-006-101
(WAF 3)
Fig. 31 VPB consolidati-
on of opposite outlets
21
6
4
5
3
7
9
8
10
11
13
15
17
12
14
16
18
1920
Bridge, installation position left or bridge, installation position right
Metering device inlet
Crossporting
3-bridge, with one
outlet and check valve
M10x1 = VPBM-C3
G1/8” = VPBG-C3
Crossporting
2-bridge, without outlet port
without check valve
M10x1 = VPBM-C-S2
G1/8” = VPBG-C-S2
Crossporting
4-bridge, with one outlet
port and check valve
M10x1 = VPBM-C4
G1/8” = VPBG-C4
Crossporting
2-bridge, with one
outlet port and check valve
M10x1 = VPBM-C2
G1/8” = VPBG-C2
