EN
6. Assembly
- 82 -
951-180-083-EN
Version 01
6.9 Assembly of the lubrication lines using quick disconnect couplings
• Manually insert the pipe (1) fully into
the collet (4) of the SKF quick disconnect
coupling until it clears the O-ring (2) and
the locking claw (5) of the collet (4) and
reaches the mechanical stop (3).
To remove the metal pipe (1), press the
collet (4) inward into the SKF quick discon-
nect coupling. The metal pipe (1) can now be
pulled out of the collet (4) of the SKF quick
disconnect coupling.

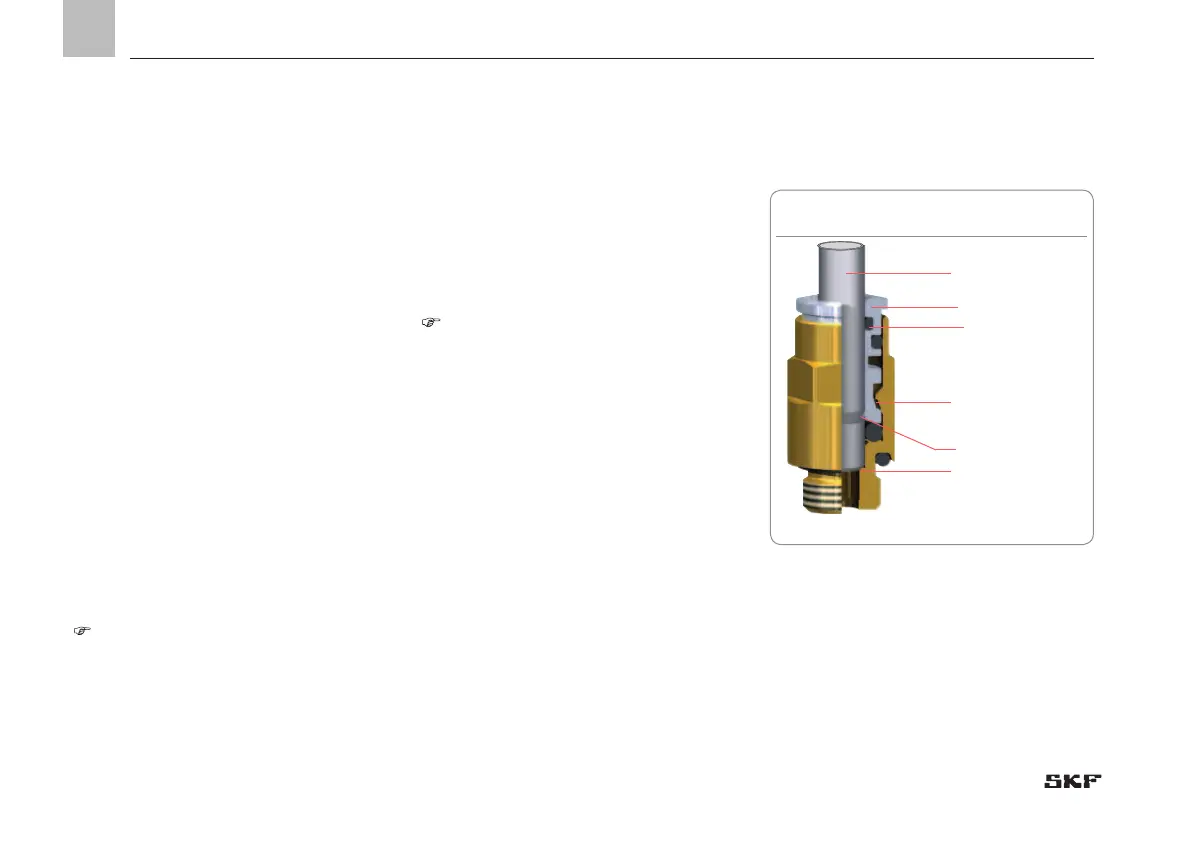

Metal tube (1)
Collet (4)
O-ring (2)
Claw groove
Locking claw (5)
Mechanical stop
(3)
Fig. 37 Quick disconnect cou-
pling for metal tube
- See Figure 37
The SKF quick disconnect couplings are
available in designs for metal pipes. There
is a choice available between a pipe ver-
sion with and without claw groove. The
claw groove securely fastens the pipe in the
quick disconnect coupling, which prevents
the metal pipe from slipping out of the SKF
quick disconnect coupling. The quick discon-
nect coupling has a locking claw. The locking
claw of the collet secures the pipe in the SKF
quick disconnect coupling.
Operations:
• Cut the connecting pipe (1) to the cor-
rect length with a pipe cutter (see
Accessories).
In the following installation of the pipe,
a noticeable resistance must be overcome
when passing through the O-ring (2), the
locking claw (5) of the collet (4). If a claw
groove is not used, fix the pipe using appro-
priate fastening hardware.
