EN
6. Assembly
- 78 -
951-180-083-EN
Version 01

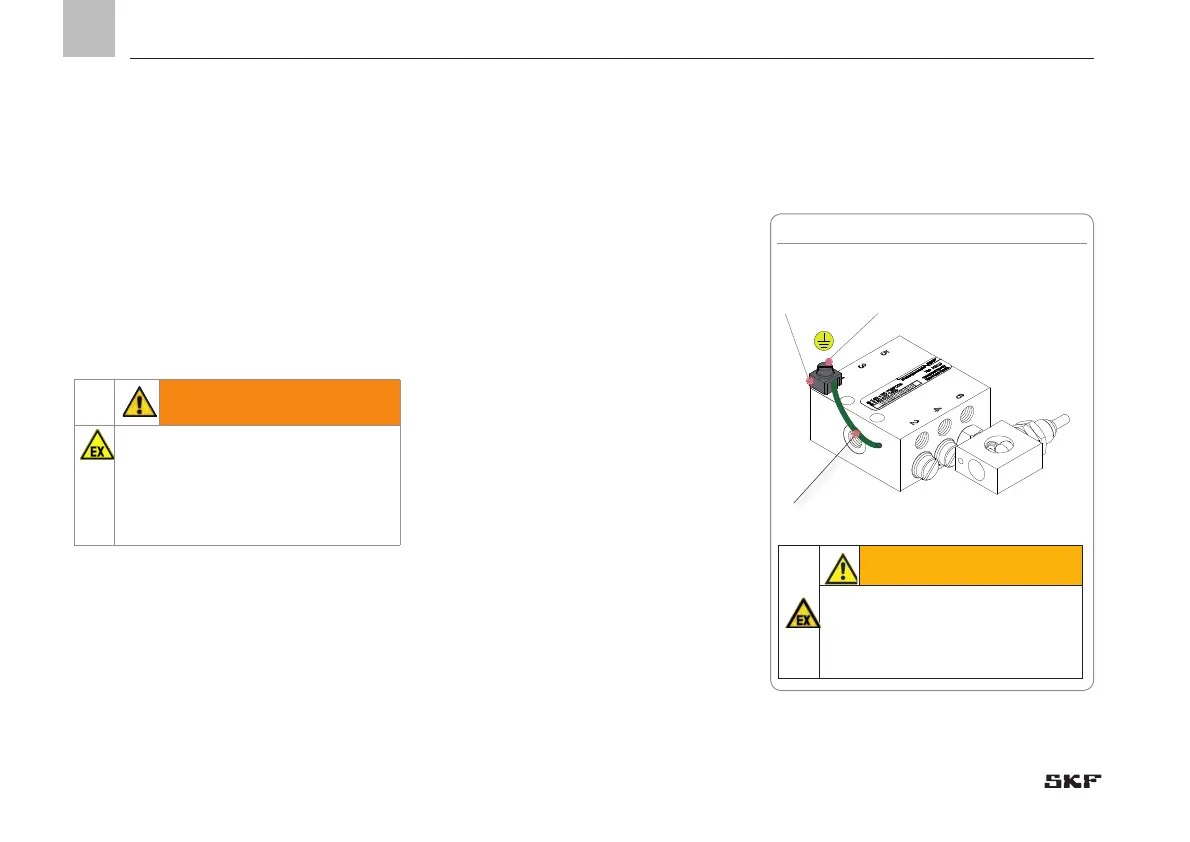

Fig. 33 Equipotential bonding
WARNING
Follow ATEX guidelines when
connecting the equipotential
bonding cable!
PE cable provided by customer
24-3820-
XXXX
-
A
TEX
6.6 Establishing equipotential bonding
- See Figure 33
The product has an equipotential bonding
connection (screw M6).
The product and its equipotential bonding
connection must be connected to the equi-
potential bonding of the main machine.
WARNING
Explosion protection
The cross-section of the standard
grounding cable to be supplied by the
customer must be at least 2 mm
2
.
• Loosen the clamping screw (2) on the
ground terminal (1).
• Insert the cable end of the standard
grounding cable (3) into the ground
terminal.
• Tighten the clamping screw (2).
• Perform PE continuity test.
Equipotential bonding connection (screw M6)
1
3
2
