6. Assembly
- 61 -
951-180-083-EN
Version 01
Intermediate plates (7)
VP2.08
End plate (5)
VP2.09
Inlet section (3)
Metering device sections (6)
End section (4)
Tie-rod (2)
Self-locking
nuts 1)
Borehole for positioning the plates
Guide knobs for
positioning the plates

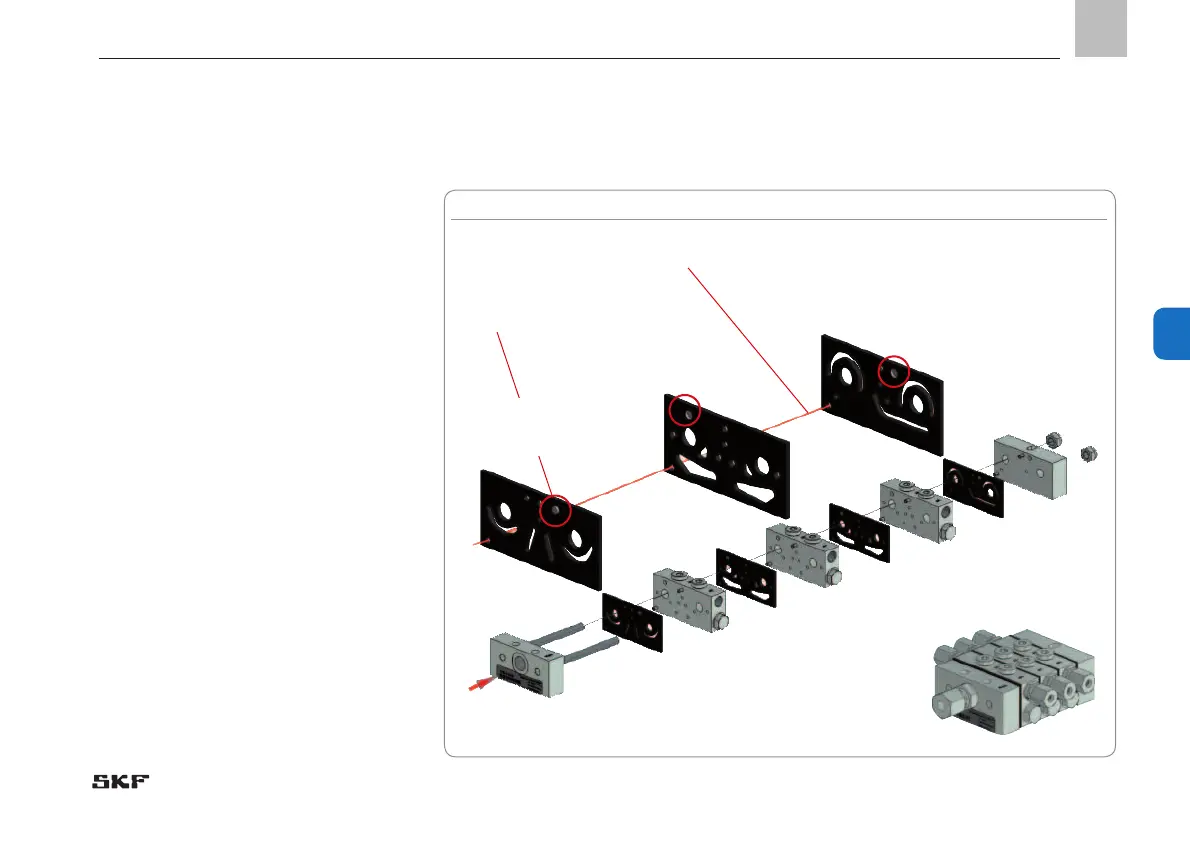

Fig. 17 Assembly of a three-port VP progressive metering device
• Apply self-locking nuts (1) to tie-rods (2)
and tighten alternatingly up to a torque of
12 Nm each.
• Reinstall the metering device and check
that it is properly sealed.
