6. Assembly
- 68 -
951-180-083-EN
Version 01
IMPORTANT
The metering device section behind the
inlet section must not be closed.
Always ensure that plug 917-006-101
has been removed before screwing in plug
screw 466-431-001; otherwise, the me-
tering device may jam.
Procedure:
• Unscrew the appropriate plug 917-006-
101 using a hexagon socket screw key
(WAF 4).
• Close the outlet borehole with a plug
screw.
The fluid of the two outlets will then flow
out of the outlet near the inlet section.
After crossporting from
466-431-001
6 5 1
T T T
3
2 4
10 9 8
T T S
5
4 3
T T
7
1
2
6
Quantities 5 and 6
consolidated
Quantities 2 and 3
consolidated
Quantities 2 and 6
consolidated
Quantities 9 and 10
consolidated
Quantities 3, 7, and 8
consolidated
Plug screw
Inlet
section
Plug 917-006-101 (hexagon socket WAF 3)
(Detail A)
Internal plug removed

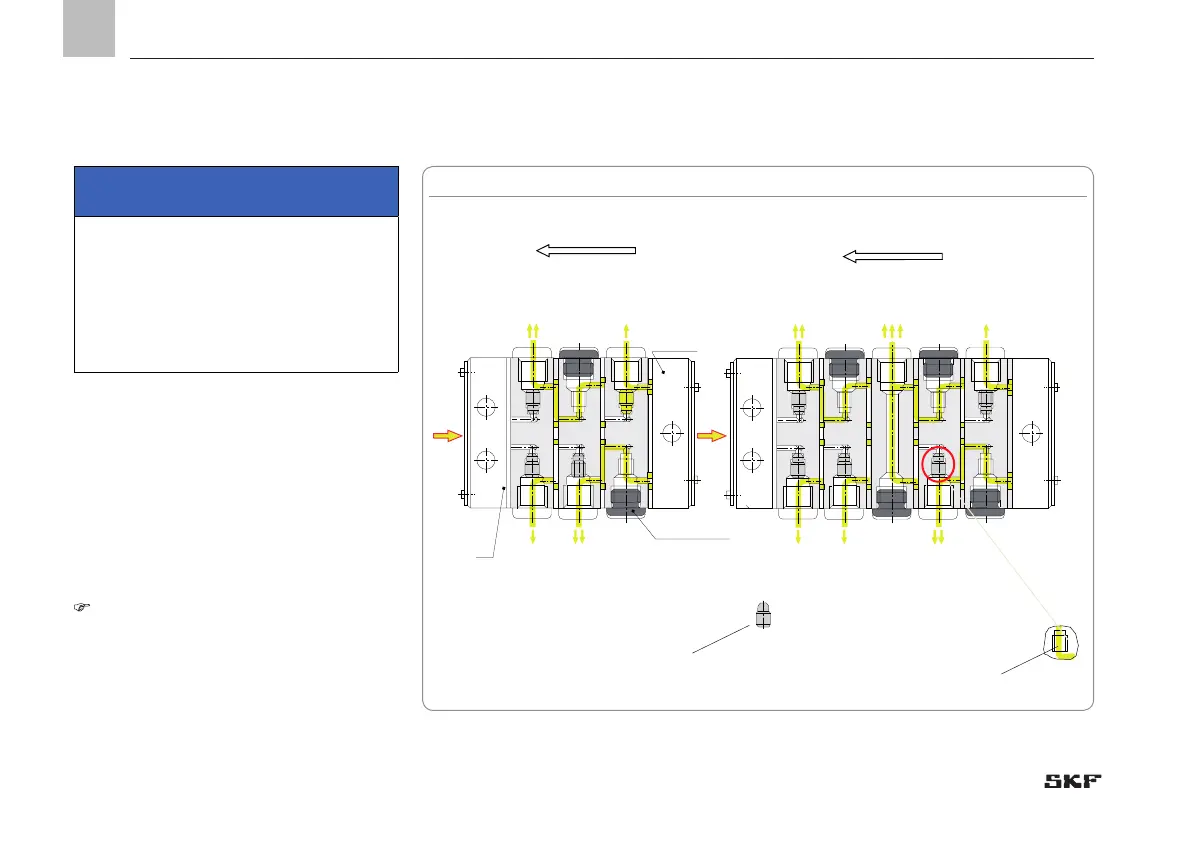

Fig. 23 Examples of crossporting
