6. Assembly
- 70 -
951-180-083-EN
Version 01
• Apply self-locking nuts (1) to tie-rods (2)
and tighten alternatingly up to a torque of
12 Nm each.
• Reinstall the metering device and check
that it is properly sealed.
Inlet plate
VPKM.07
Intermediate plates (7)
VPKM.08
End plate (5)
VPKM.09
Inlet section (3)
Metering device sections (6)
End section (4)
Tie-rod (2)
Self-locking
nuts 1)
Borehole for positioning the plates
Guide knobs for
positioning the plates

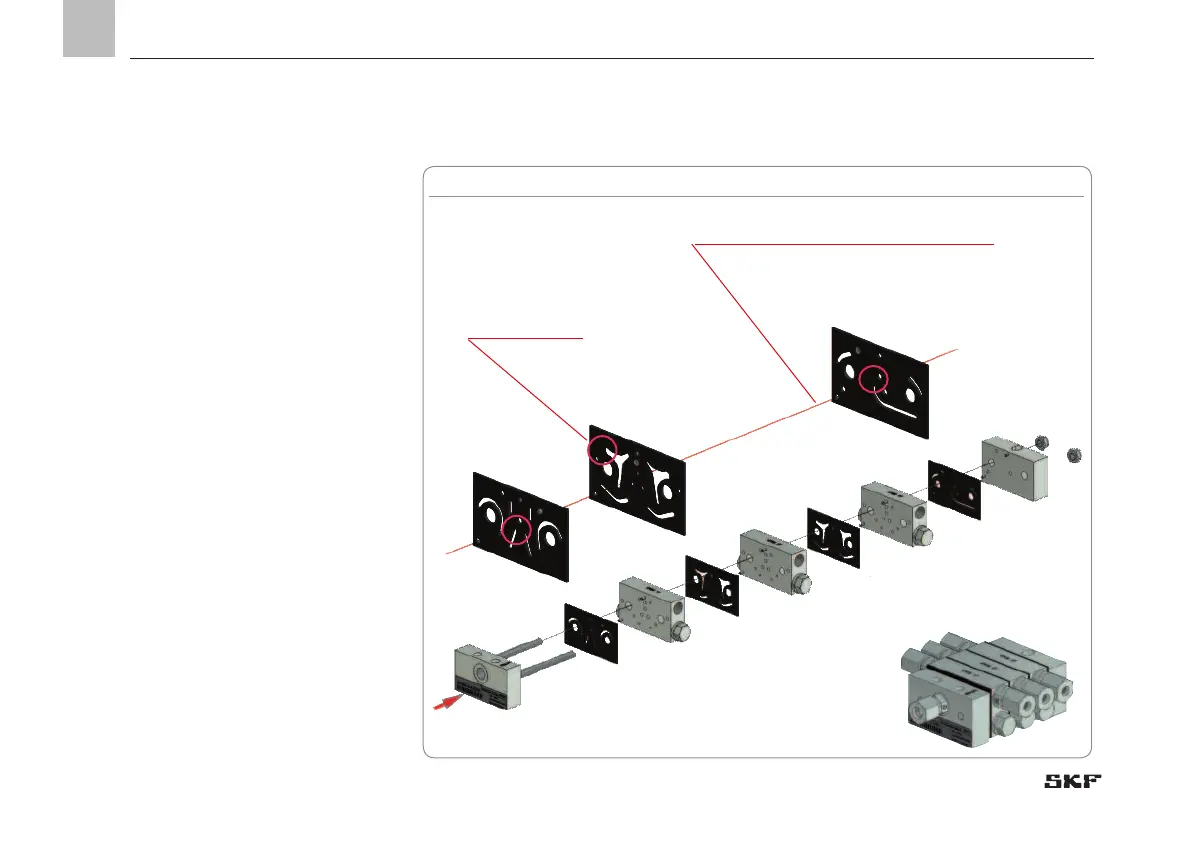

Fig. 24 Assembly of a three-port VPK progressive metering device
