Ce nter Shock M otion R at io — D a m ping Strength
XR-S Package O nly
Center shock on the above m entioned m odels feature 2 adjust-
ments.
Low Speed Com pression Adjuster
The low speed adjuster modifies the damping force for small suspen-
sion veloci ties. This adjuster has 5 turns of adjustment. Use a flat
screwdrive r to adju st it. Turn ing it cloc kwi se i nc reases shock d amp-
ing action (stiffer) for these low compression speeds.
High Speed Compression Adjuster
The high speed adjuster m odif ies the damping force for high suspen-
sion velocities . Use a 17 mm wren ch to adjust it. Turni ng it clock-
wise increases sh ock damp in g actio n (st iffer) for these high com-
pressi on speeds.
mmo2007-004-005_a

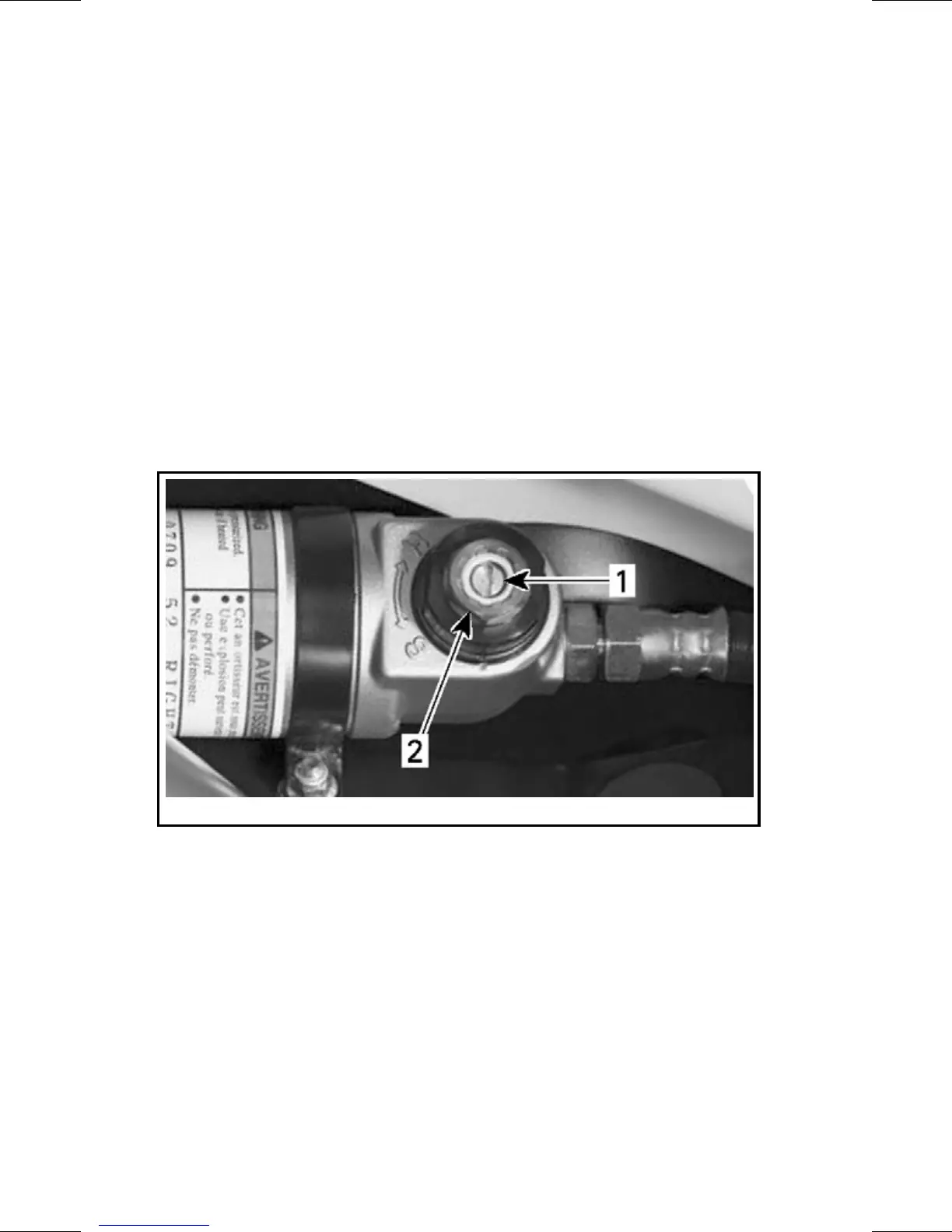

TYPICAL — CENTER SHOCK RESERVOIR
1. Low speed compression adjuster (flat screwdriver)
2. High speed compression adjuster (17 mm wrench)
