1) Speedometer/Tachometer
Liquid Cooled Summit Models
A combined speedometer/tachometer gauge that will show vehicle
speed in km/h or MPH via its multif unction display and the engine
num ber of thousand of revolutions per minute (RP M) via its pointer.
As soon as the vehicle is moving, the multifunction display will show
speed only instead of the selected m ode.
8
A35A04C
9
1-253
7
4
6

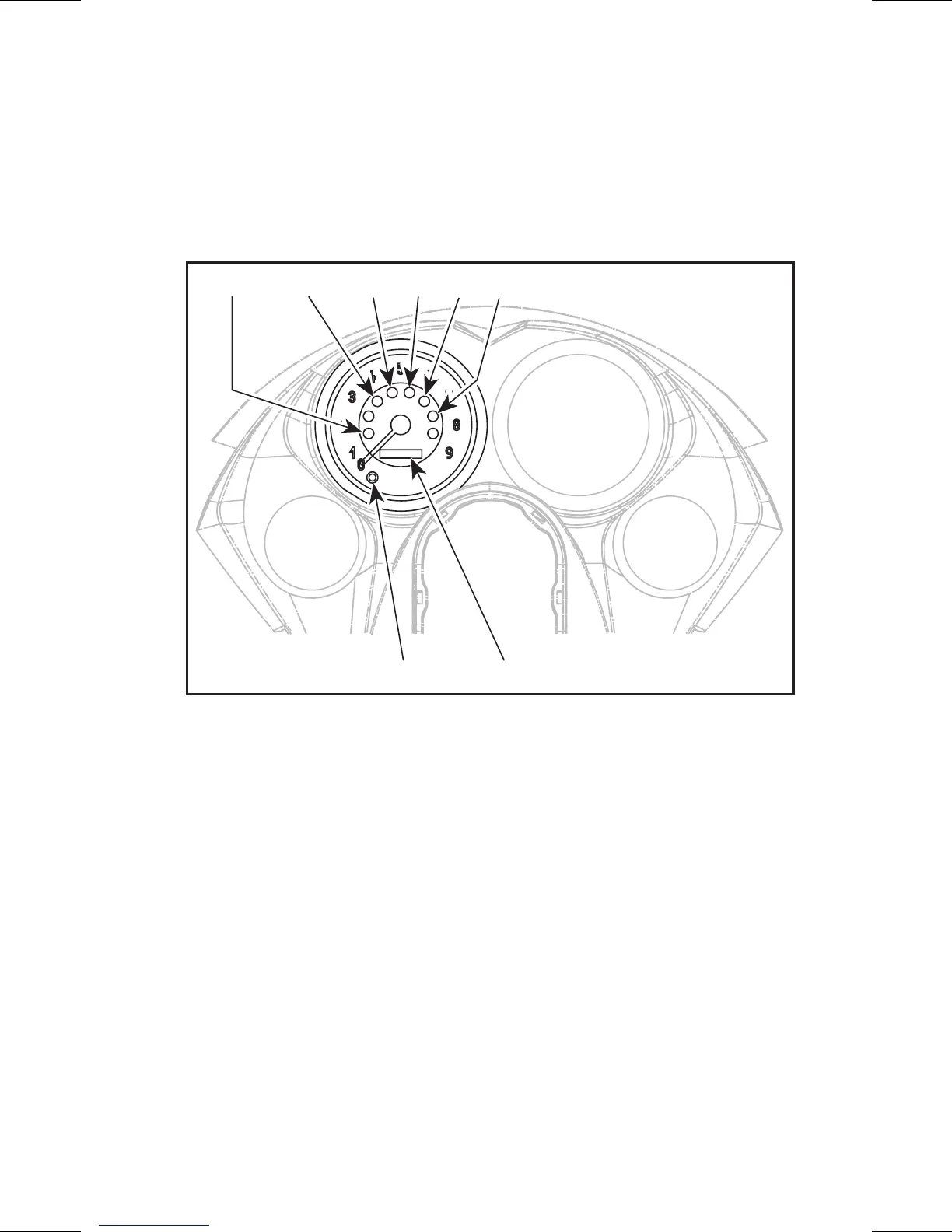

TYPICAL — MODELS WITH TACHOMETER ONLY
1. Reverse pilot lamp
2. DESS/RER pilot lamp
3. High beam pilot lamp (blue)
4. Oil pilot lamp
5. Low battery voltage pilot lamp
6. Engine management system (EMS) pilot lamp
7. Engine overheat warning lamp (red)
8. Mode Button
9. Multifunction dis play
All Models exce pt L iquid Coole d Sum m it
Electronic multifunction speedometer that may show speed in km/h
or MPH.
At vehicle speed of 90 km/h (55 MPH) and more, the multifunction
display will show speed only instead of the selected mode.
__________________________
71
To Next Page
