DRIVE SYSTEM
Belt Guard Removal and Inst allation
WARNING
NEVER operate engine:
– wi thou t s hie ld s a nd be lt gua rd s ecurely in stalled
– wi th hood open ed or re m ove d.
NE VE R att empt to mak e a djus tments to movin g parts w hil e
eng ine is running .
N O TE: Beltguardispurposelymadeslightlyoversizetomaintainten-
sion on its pins and retainers preventing undue noise and vibration.
It is important that this tension be maintained when reinstalling.
– Remove tether cord cap.
– Open engine compartment.
– Open retainer to release pin then pull belt guard out of vehicle.

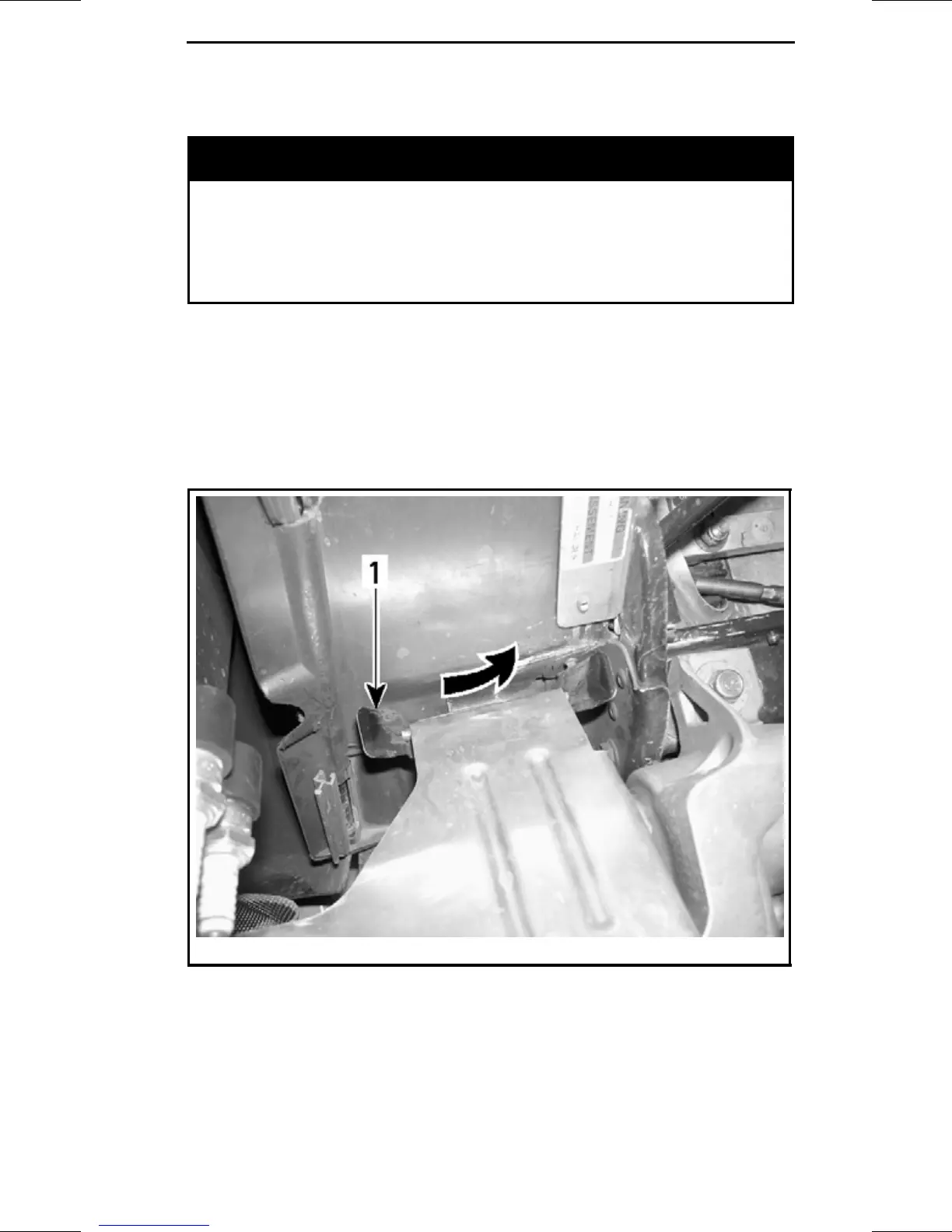

mmo2006-005-011_a
TYPICAL
1. Pin retainer
W hen reinstalling belt guard, position i ts cut away toward front of
snowmobile. Refer to decal in belt guard.
Place belt guard slots over tabs first, then snap the other end in re-
tainer.
_________________________
195
