6.9 Mounting the Sunny WebBox (Wall or Top-Hat Rail)
This section describes how to mount the Sunny WebBox in the following ways:
• Mounting the Sunny WebBox onto the wall
• Mounting the Sunny WebBox on the top-hat rail
Mounting the Sunny WebBox onto the wall
1. Determine the mounting location taking into consideration the mounting / installation location
requirements.

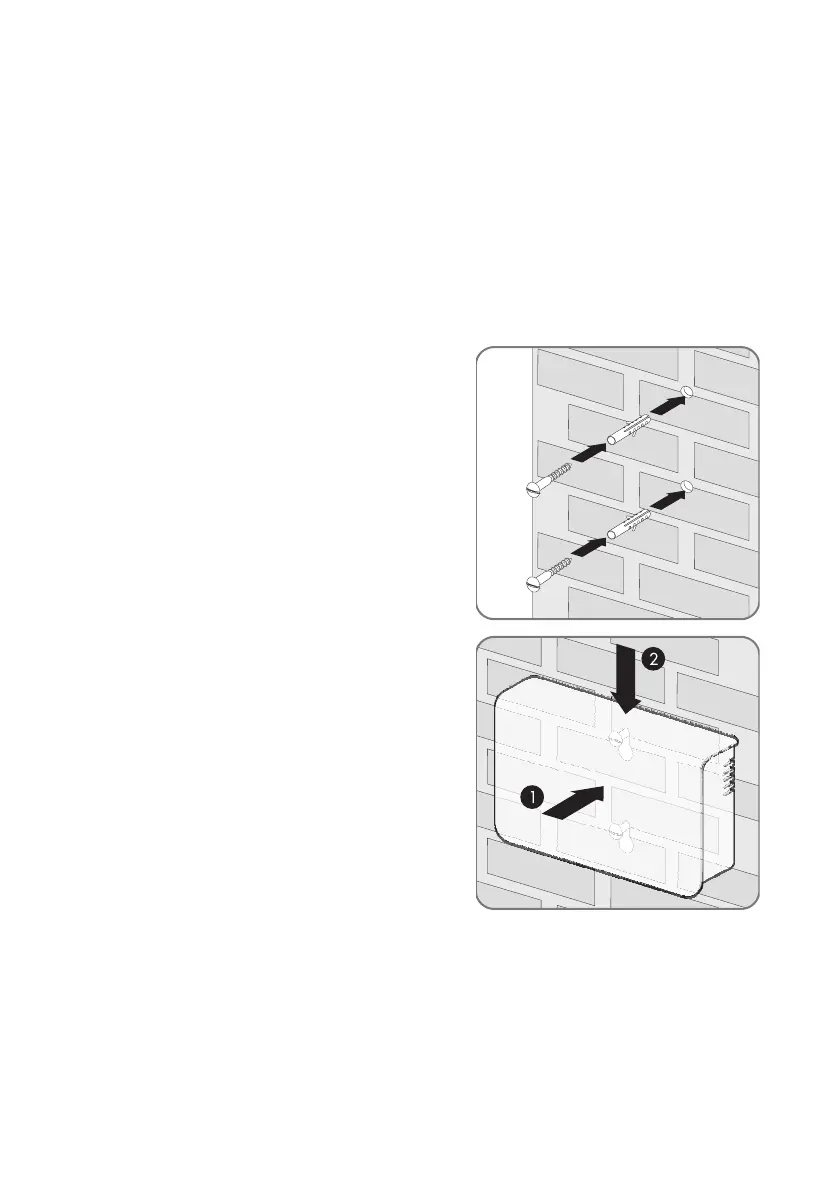

2. Use the supplied drilling template to determine the
position of the Sunny WebBox on the wall and to
mark the drilling holes with a pen.
3. Drill holes with 6 mm diameter at the marked points
and insert screw anchors.
4. Screw in the screws and leave about a 6 mm
clearance between the screw head and the wall.
5. Hang the Sunny WebBox onto the screws.
☑ The Sunny WebBox is now mounted on the wall.
