Operation SMA Solar Technology AG
46 SWebBox-BEN111033 User Manual

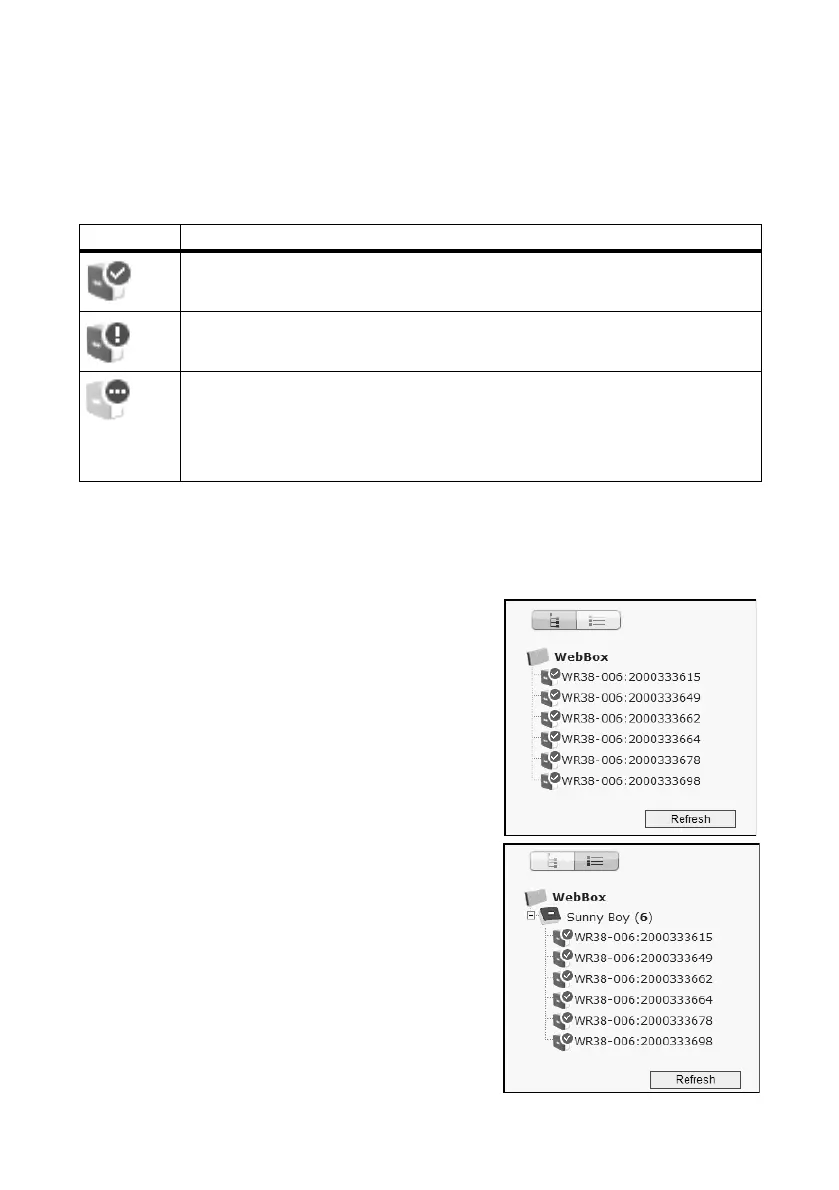

8.1.1 Explanation of the Status Symbols
This section explains the meanings of the various status symbols in the Web interface of the Sunny
WebBox. The symbol of a Sunny Boy appears in each of the following examples. The Sunny WebBox
user interface shows other devices in the PV plant with corresponding symbols.
8.1.2 Structural View and Device View
In the structural view and the device view, you can access additional data by selecting
"Plant > Devices".
Structural view
In the structural view, the user interface shows the devices
in the order in which they are connected to the data bus.
Device View
In the device view, the user interface shows all devices
sorted by device type. Device types are, for example, all
Sunny Boys. The number shown in parentheses indicates
the number of devices of the device type.
Symbol Explanation
This symbol indicates that the inverter is operational and communicates with the
Sunny WebBox.
This symbol indicates that communication has been established with the Sunny
WebBox but that the inverter has an error.
This symbol is displayed in the following cases:
• The inverter is unable to communicate with the Sunny WebBox.
• A fault has occurred in the communication with the inverter.
• It is night time and the inverter is switched off.
