QoS Queue Config
On this page, you can configure a queue and add it to a Layer2 interface.

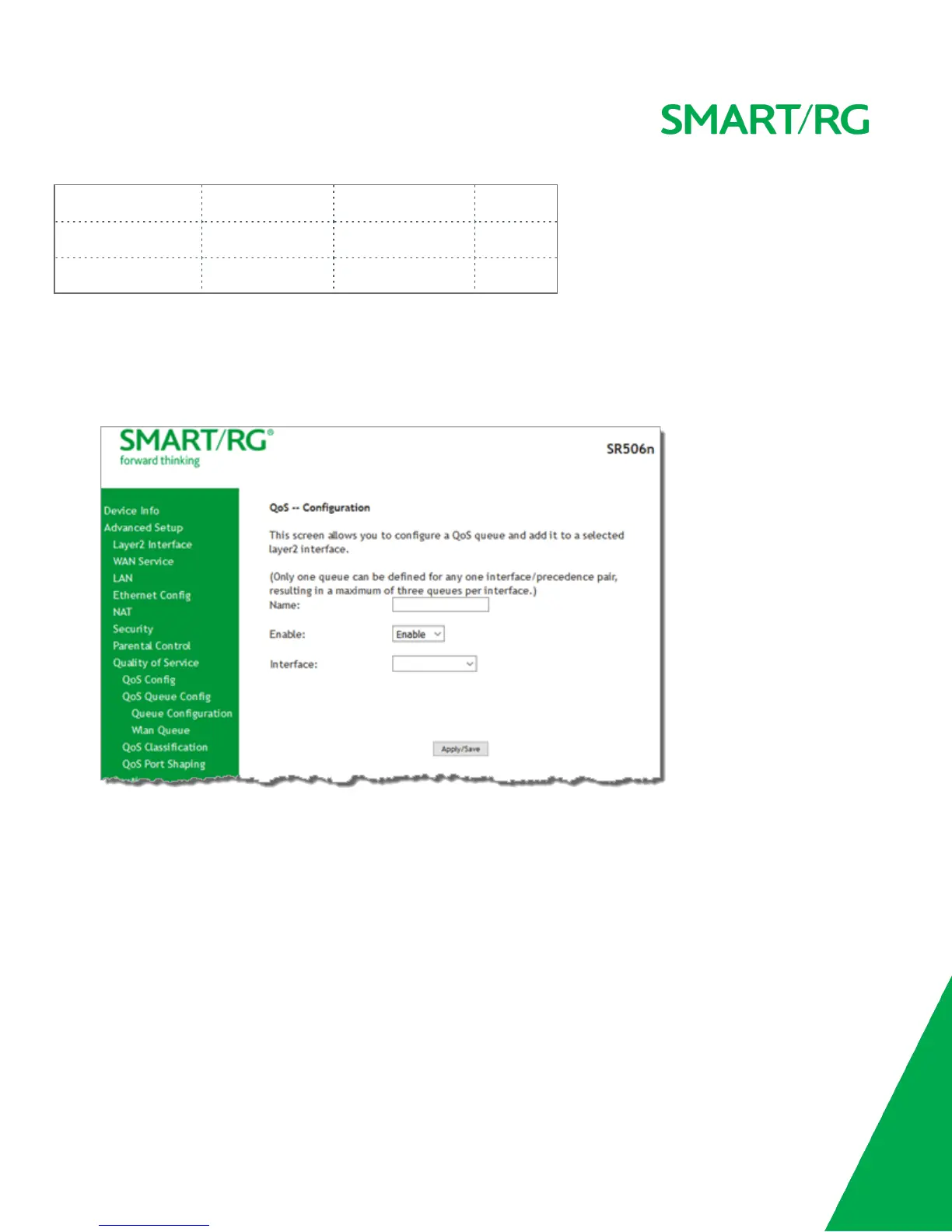

1. In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Queue Config and then click Add. The following
page appears.
2. In the Name field, type a descriptive name for this queue.
3. In the Interface field, select the Layer 2 interface to be associated for this queue. Additional fields appear.
4. Fill in the fields, using the information provided in the table below.
Note: For Dynamic WAN interfaces, the Queue Priority settings appear twice - once for ATM WAN QoS configuration and once
for PTM WAN QoS configuration.
5. Click Apply/Save to save your settings.
The fields on this page are explained in the following table.
