SMARTRG INC. PROPRIETARY AND CONFIDENTIAL. ALL RIGHTS RESERVED. COPYRIGHT © 2016 51
Field Name Description
For tagged service, enter values in this field and the 802.1P Priority field.
For untagged service, enter -1 (disabled) in this field and in the 802.1P Priority field.
Select VLAN TPID (
Optional
) Select the TPID for this VLAN. Options are
0x8100
,
0x88A8
, and
0x9100
.

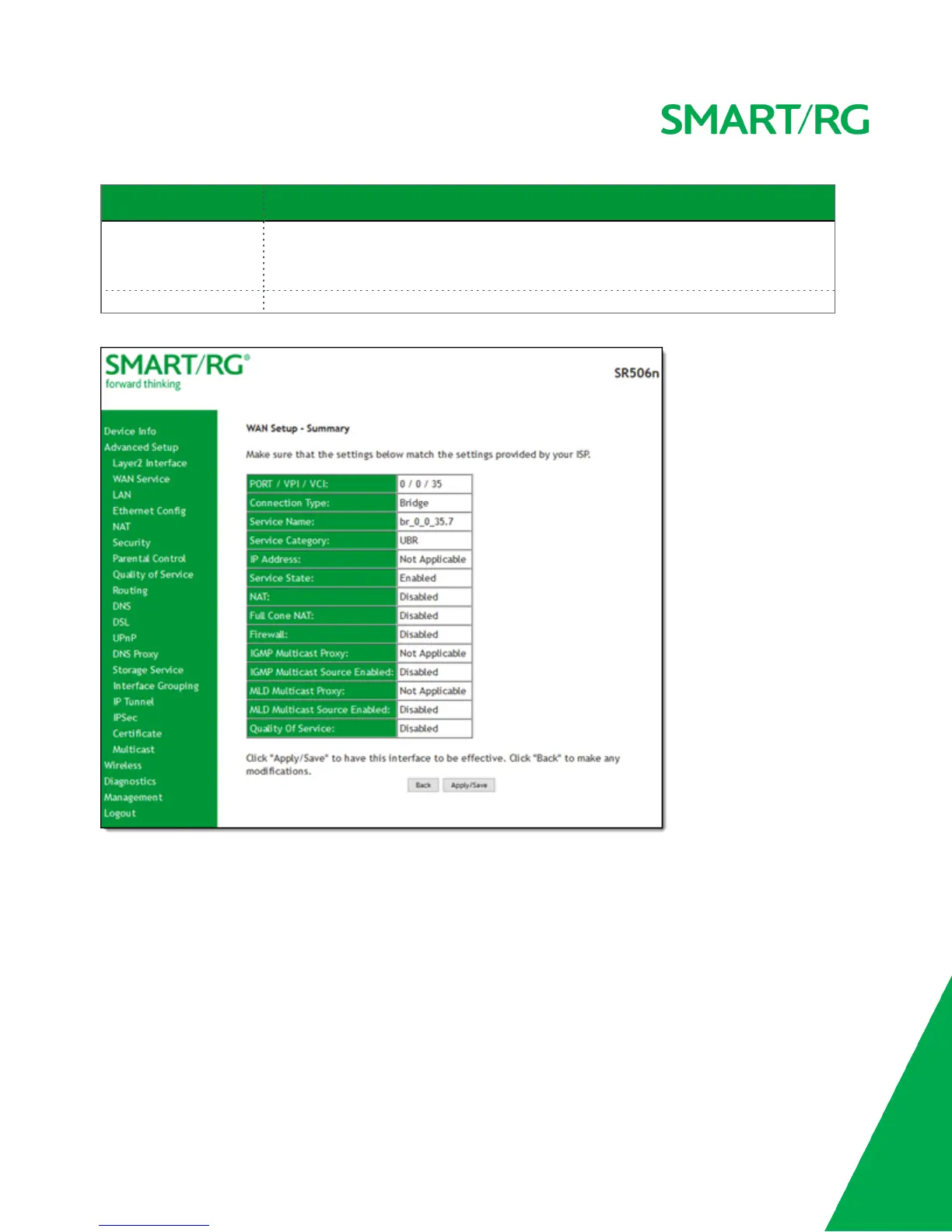

5. Click Next. The summary page appears indicating that your Bridging WAN setup is complete.
6. Review the summary and either click Apply/Save to commit your changes or click Back to step through the pages in reverse
order to make any necessary alterations.
LAN
On the Local Area Network (LAN) Setup page, you can configure the router’s local IP addresses, subnet mask, DHCP behavior and
other related LAN side settings for your gateway.
