QoS Port Shaping
QoS Port Shaping facilitates setting a fixed rate (Kbps) for each of the Ethernet ports.

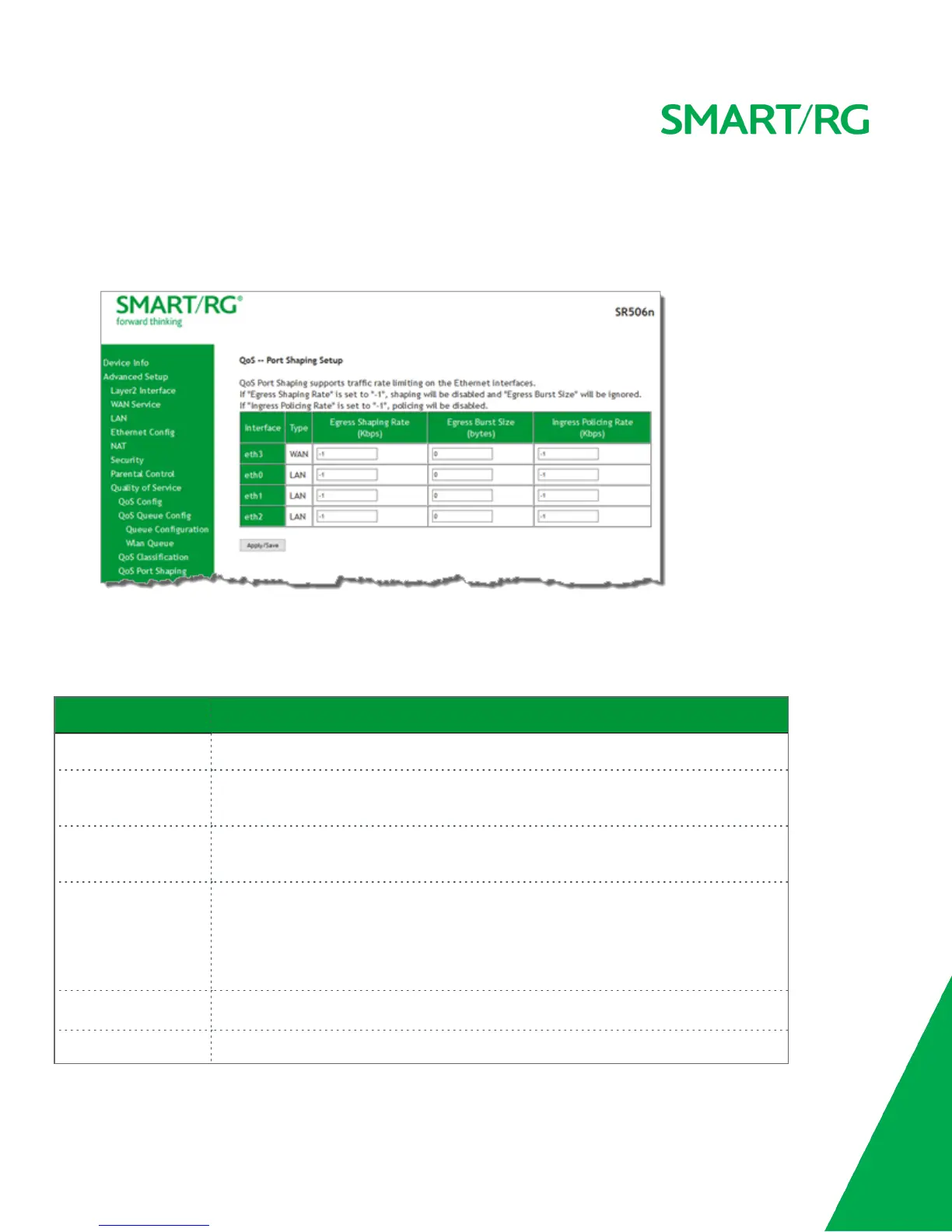

1. In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Port Shaping. The following page appears.
2. Fill in the fields, using the information in the table below.
3. Click Apply/Save to commit your changes.
The fields on this page are explained in the following table.
Field Name Description
Interface Each entry in this column represents one of the Ethernet LAN ports on the gateway.
Type Each entry in this column identifies the function for which each physical port is con-
figured on the gateway.
Shaping Rate (Kbps) Enter the data rate for packets on the specified Interface. Options are: 1 - 1,000,000
Kbps. The default is -1 (no shaping).
Burst Size (bytes) Enter the burst size to be applied to packets in the defined queue. Options are 1600
bytes or greater.
If you enter a value of -1 (disabled) in the Shaping Rate field, the value in this field is
ignored.
Egress Shaping Rate
(Kbps)
Enter the data rate for packets on the specified Interface. Options are:
1
-
1,000,000
Kbps. The default is
-1
(no shaping).
Egress Burst Size (bytes
Enter the burst size to be applied to packets in the defined queue. Options are 1600
