SMC Networks SMC8126L2 - Binding a Port to an Access Control List; Figure 3-46 Configuring MAC Acls

Access Control Lists
3-73
3

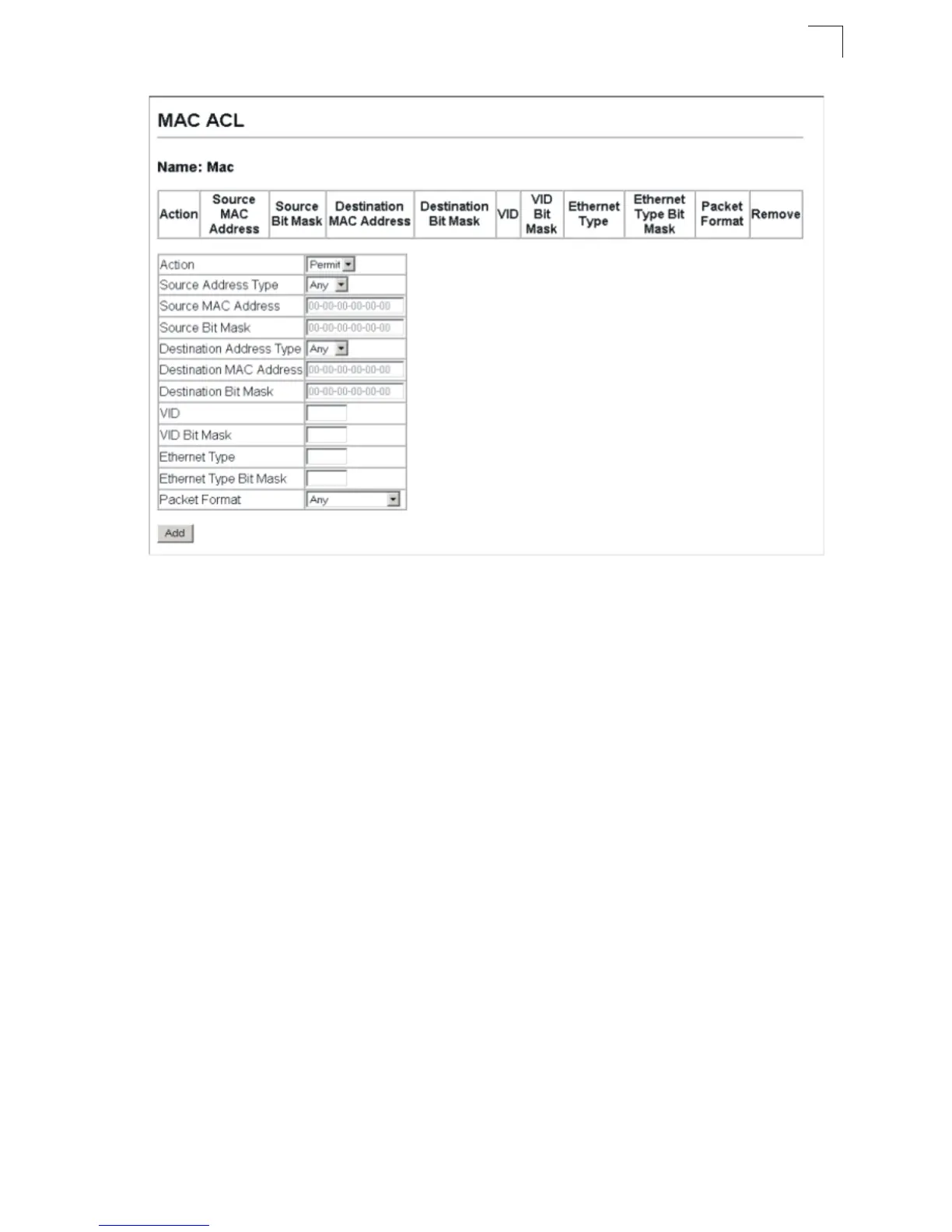

Figure 3-46 Configuring MAC ACLs
Binding a Port to an Access Control List
After configuring the Access Control Lists (ACL), you can bind the ports that need to
filter traffic to the appropriate ACLs. You can assign one IP access list to any port.
Command Usage
This switch supports ACLs for ingress filtering only.
Command Attributes
• Port – Fixed port or SFP module. (Range: 1-26/50)
• IP – Specifies the IP ACL to bind to a port.
• MAC – Specifies the MAC ACL to bind to a port.
• IN – ACL for ingress packets.
Web – Click Security, ACL, Port Binding. Click Edit to open the configuration page
for the ACL type. Mark the Enable field for the port you want to bind to an ACL for
ingress or egress traffic, select the required ACL from the drop-down list, then click
Apply.
