Configuring the Switch
3-94
3
Configuring Rate Limits
This function allows the network manager to control the maximum rate for traffic
transmitted or received on an interface. Rate limiting is configured on interfaces at
the edge of a network to limit traffic into or out of the switch. Traffic that falls within
the rate limit is transmitted, while packets that exceed the acceptable amount of
traffic are dropped.
Rate limiting can be applied to individual ports or trunks. When an interface is
configured with this feature, the traffic rate will be monitored by the hardware to
verify conformity. Non-conforming traffic is dropped, conforming traffic is forwarded
without any changes.
Rate Limit Configuration
Use the rate limit configuration pages to apply rate limiting.
Command Usage
• Input and output rate limits can be enabled or disabled for individual interfaces.
Command Attributes
• Port/Trunk – Displays the port/trunk number.
• Input/Output Rate Limit Status – Enables or disables the rate limit. (Default:
Enabled)
• Input/Output Rate Limit – Sets the rate limit level.
Web – Click Port, Rate Limit, Input/Output Port/Trunk Configuration. Enable the
Rate Limit Status for the required interfaces, set the Rate Limit Level, and click
Apply.

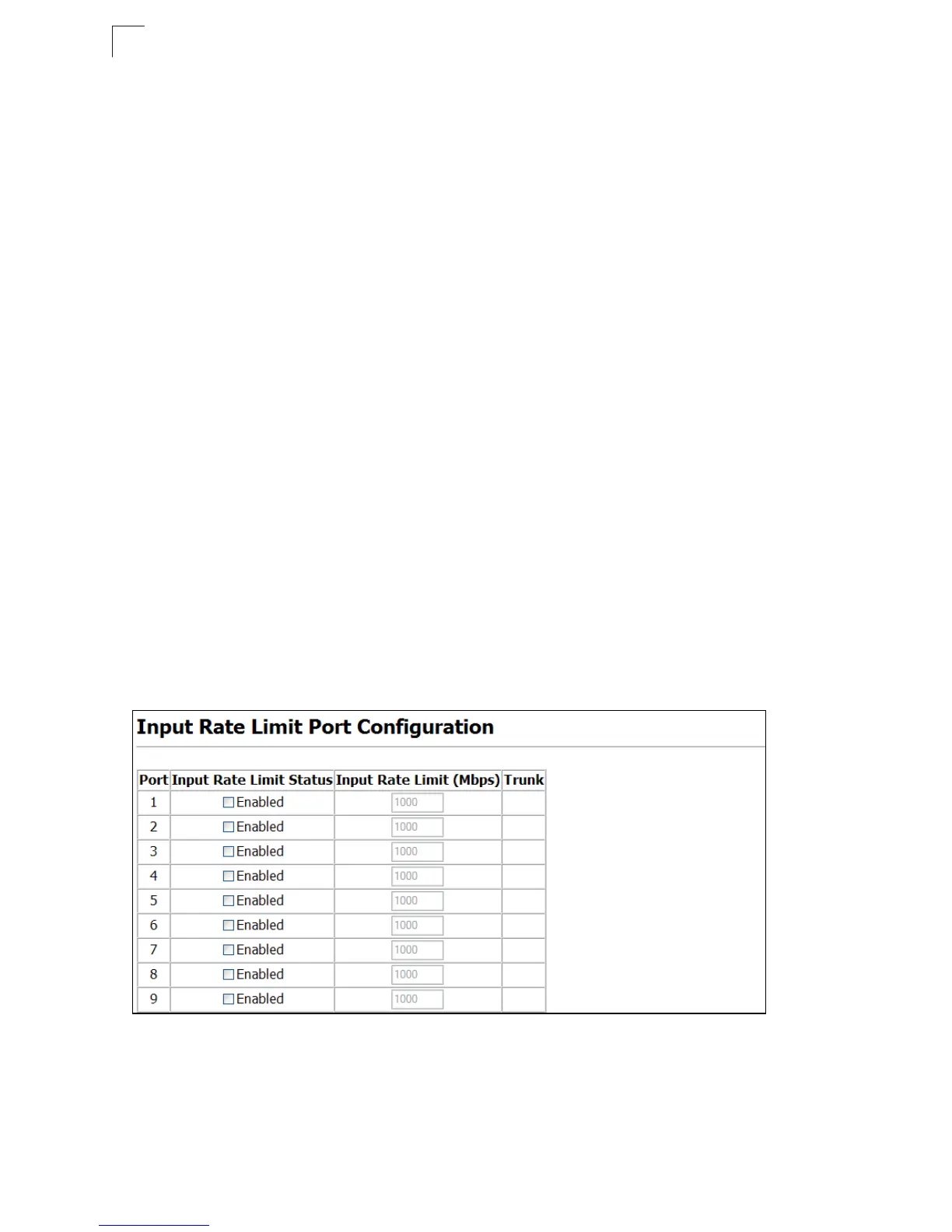

Figure 3-59 Input Rate Limit Port Configuration
