SMC Networks SMC8126L2 - Figure 3-79 Tunnel Port Configuration

Configuring IEEE 802.1Q Tunneling
3-139
3
- 802.1Q Tunnel Uplink – Configures IEEE 802.1Q tunneling (QinQ) for an
uplink port to another device within the service provider network.
Web – Click VLAN, 802.1Q VLAN, Tunnel Configuration or Tunnel Trunk
Configuration. Set the mode for a tunnel access port to 802.1Q Tunnel and a tunnel
uplink port to 802.1Q Tunnel Uplink. Set the TPID of the ports if the client is using a
non-standard ethertype to identify 802.1Q tagged frames. Click Apply.

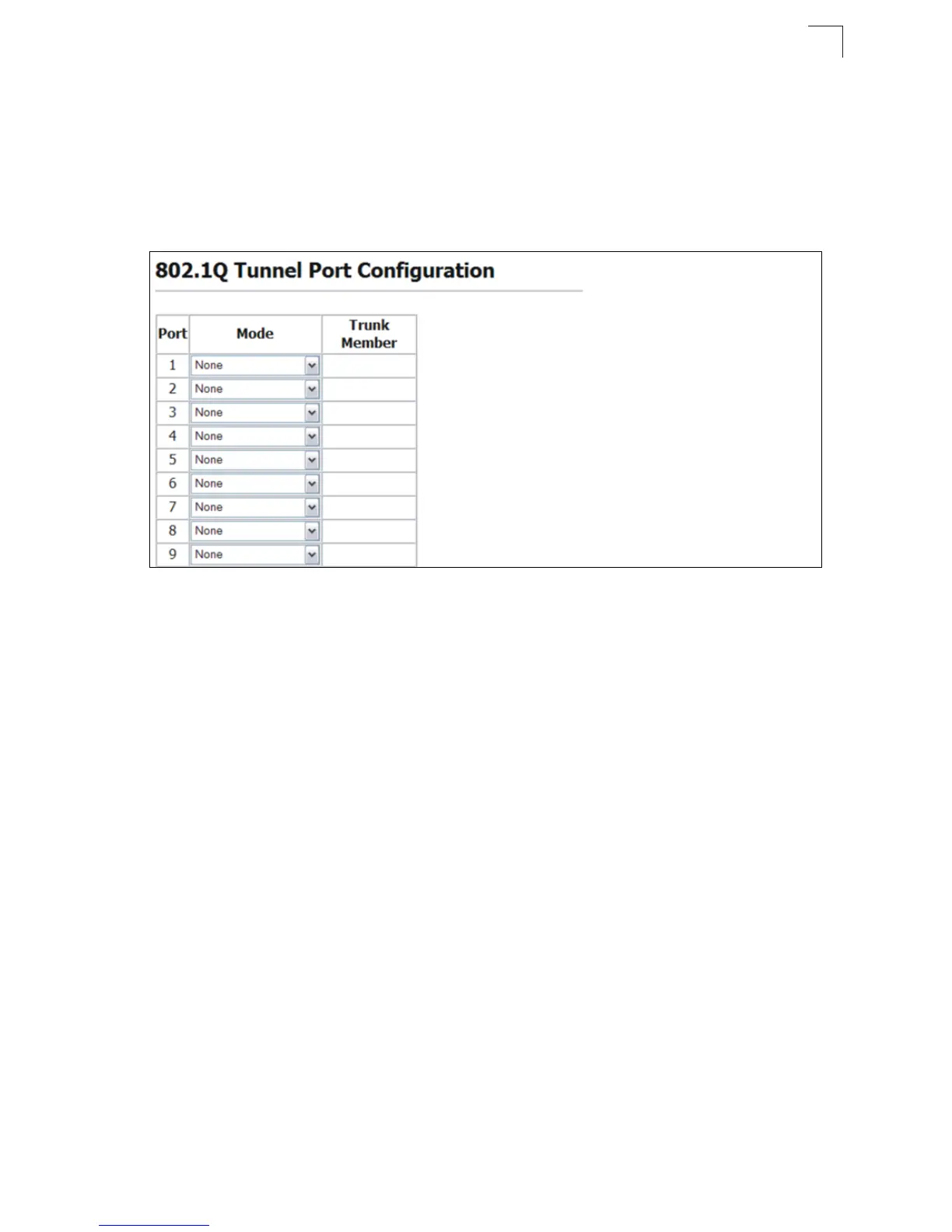

Figure 3-79 Tunnel Port Configuration
