Multicast Filtering
3-173
3
deny, IGMP join reports are only processed when a multicast group is not in the
controlled range.
Command Attributes
• Profile ID – Selects an existing profile number to configure. After selecting an ID
number, click the Query button to display the current configuration.
• Access Mode – Sets the access mode of the profile; either permit or deny.
(Default: Deny)
• New Multicast Address Range List – Specifies multicast groups to include in the
profile. Specify a multicast group range by entering a start and end IP address.
Specify a single multicast group by entering the same IP address for the start and
end of the range. Click the Add button to add a range to the current list.
• Current Multicast Address Range List – Lists multicast groups currently
included in the profile. Select an entry and click the Remove button to delete it from
the list.
Web – Click IGMP Snooping, IGMP Filter Profile Configuration. Select the profile
number you want to configure, then click Query to display the current settings.
Specify the access mode for the profile and then add multicast groups to the profile
list. Click Apply.

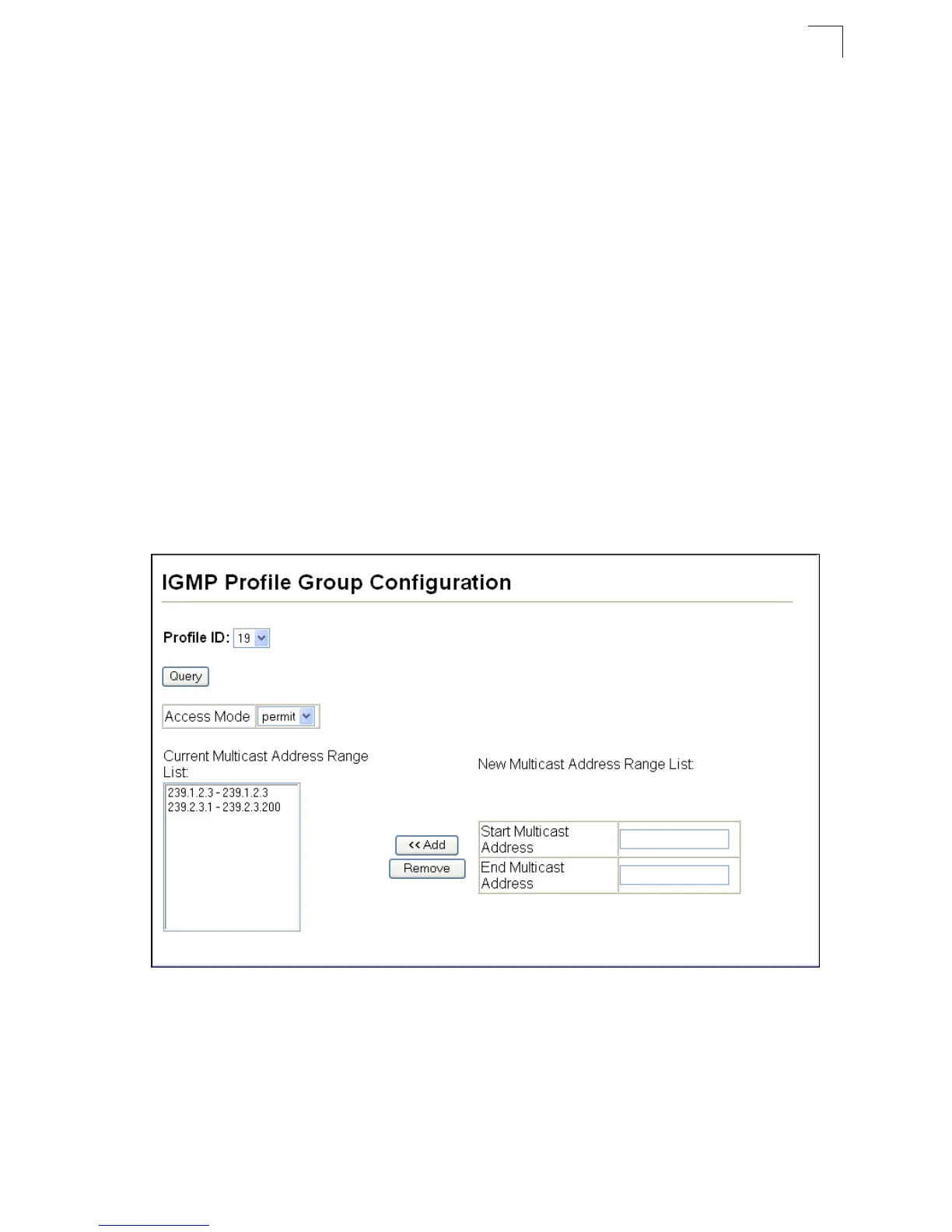

Figure 3-105 IGMP Profile Configuration
