Quality of Service
3-157
3
Web – Click QoS, DiffServ, then click Add Class to create a new class, or Edit Rules
to change the rules of an existing class.

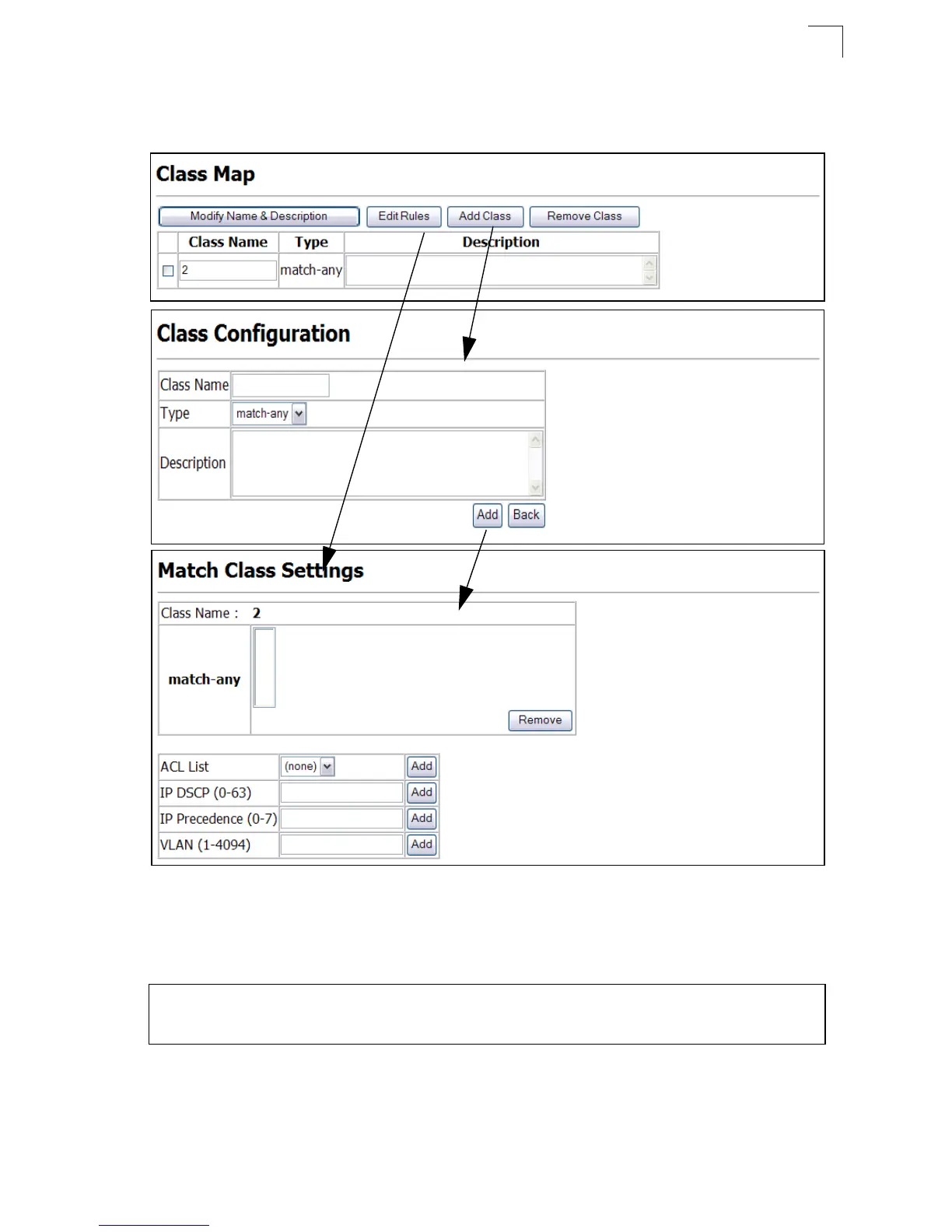

Figure 3-94 Configuring Class Maps
CLI - This example creates a class map call “rd-class,” and sets it to match packets
marked for DSCP service value 3.
Console(config)#class-map rd_class match-any 4-198
Console(config-cmap)#match ip dscp 3 4-199
Console(config-cmap)#
