Web – Click IGMP Snooping, IP Multicast Registration Table. Select a VLAN ID and
the IP address for a multicast service from the scroll-down lists. The switch will
display all the interfaces that are propagating this multicast service.

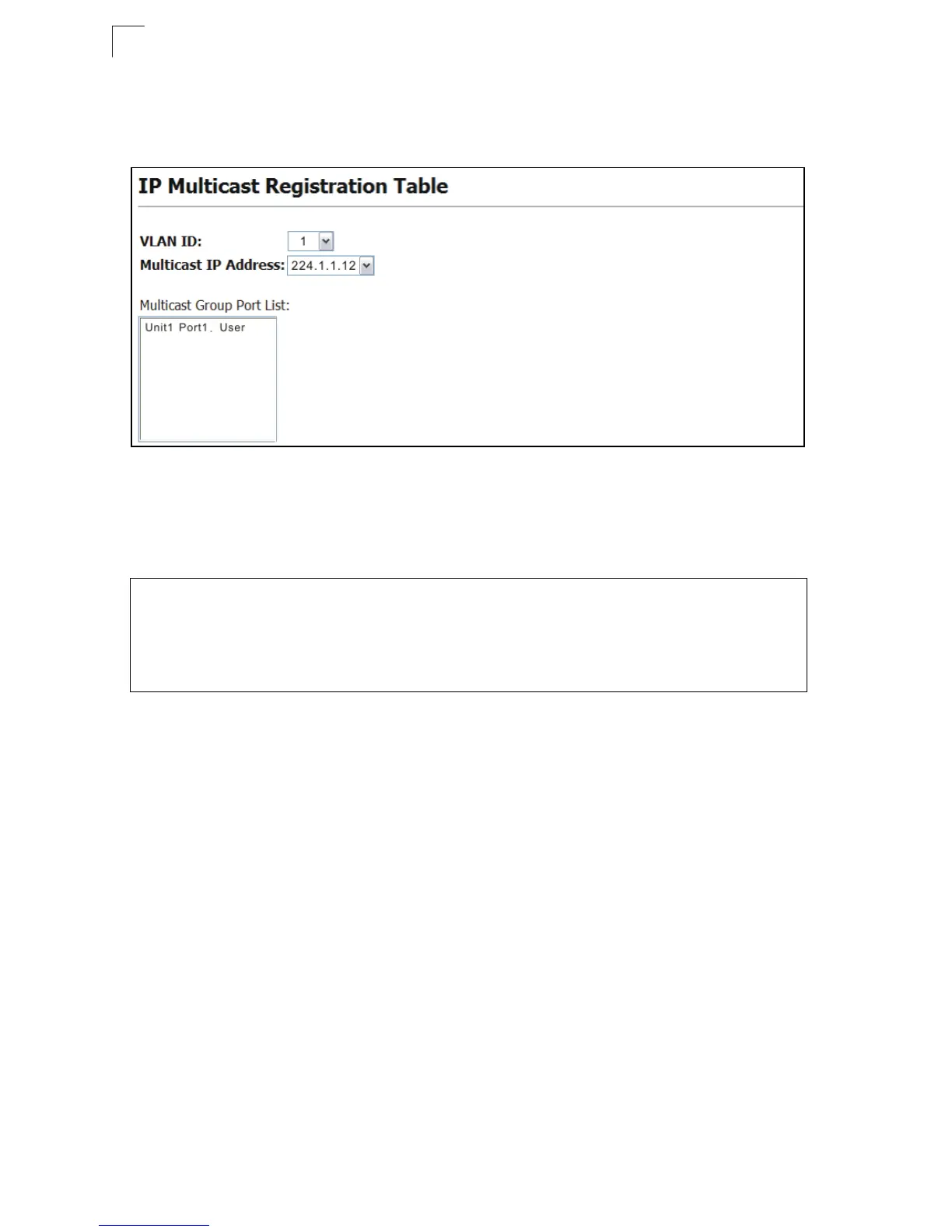

Figure 3-101 IP Multicast Registration Table
CLI – This example displays all the known multicast services supported on VLAN 1,
along with the ports propagating the corresponding services. The Type field shows if
this entry was learned dynamically or was statically configured.
Assigning Ports to Multicast Services
Multicast filtering can be dynamically configured using IGMP Snooping and IGMP
Query messages as described in “3-163. For certain applications that require tighter
control, you may need to statically configure a multicast service on the switch. First
add all the ports attached to participating hosts to a common VLAN, and then assign
the multicast service to that VLAN group.
Command Usage
• Static multicast addresses are never aged out.
• When a multicast address is assigned to an interface in a specific VLAN, the
corresponding traffic can only be forwarded to ports within that VLAN.
Command Attributes
• Interface – Activates the Port or Trunk scroll down list.
• VLAN ID – Selects the VLAN to propagate all multicast traffic coming from the
attached multicast router/switch.
• Multicast IP – The IP address for a specific multicast service
• Port or Trunk – Specifies the interface attached to a multicast router/switch.
Console#show bridge 1 multicast vlan 1 4-205
VLAN M'cast IP addr. Member ports Type
---- --------------- ------------ -------
1 224.1.1.12 Eth1/12 USER
1 224.1.2.3 Eth1/12 IGMP
Console#
