Section 2 General Information
The APOLLO D8
™
is a diagnostic scan tool with exclusive Snap-on
®
Intelligent
Diagnostics and Quick Lookups features.
This section describes basic feature locations, how the diagnostic tool is powered
and basic specifications.
Main Topic Links
• Basic Features page 3
• Powering the Diagnostic Tool page 4
– Vehicle Power page 4
– Internal Battery Pack page 4
– AC Power Supply page 4
• Technical Specifications page 5
2.1 Basic Features

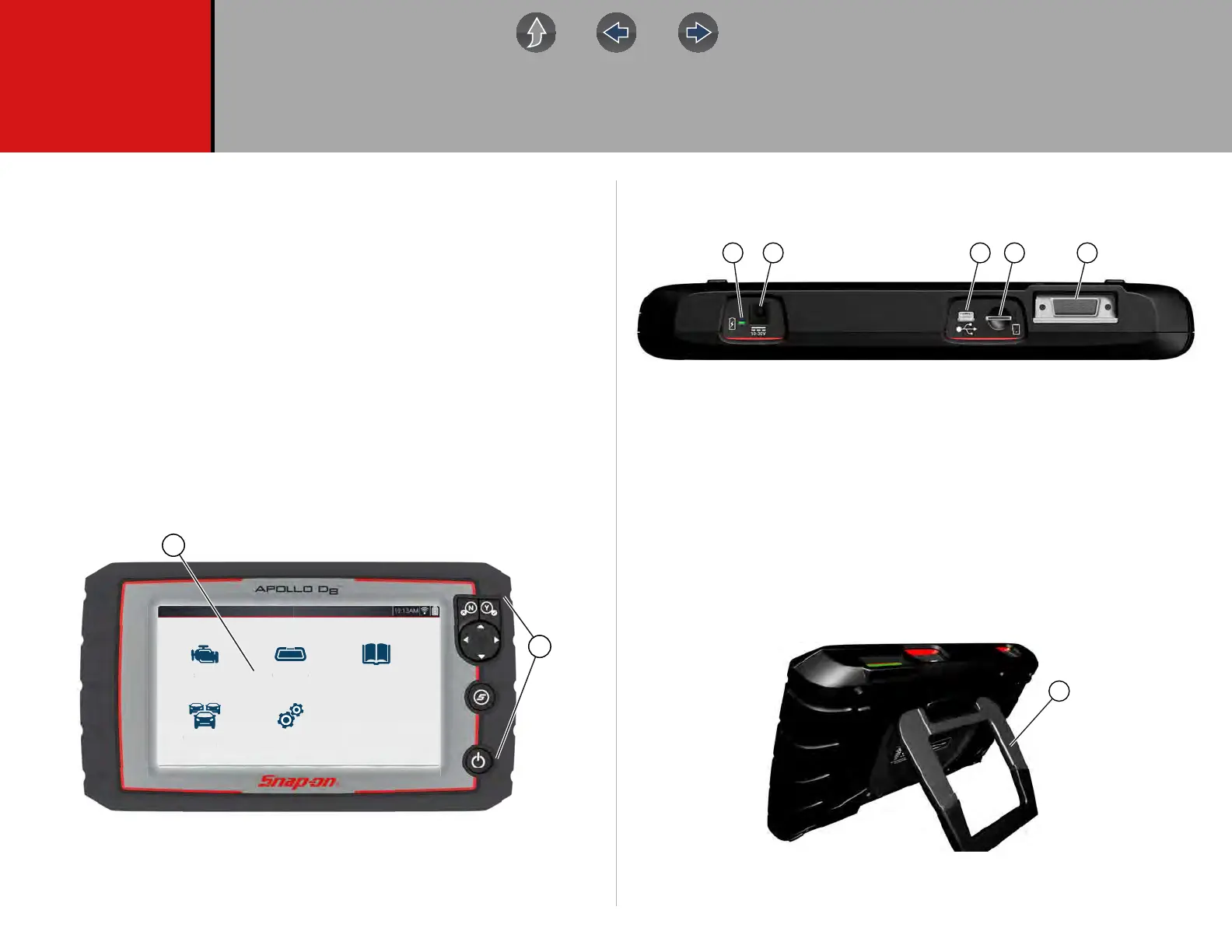

1— Touch Screen
2— Control Panel
Figure 2-1 Front view
Connectors and jacks for data communication cables and the AC power supply are
located on the top of the diagnostic tool.
Figure 2-2 Top view
1— Battery Status Indicator LED
2— Power Supply Jack
- AC power supply connection
3— Mini USB Jack - USB cable connection used to transfer saved data files to a
personal computer
4— Micro secure digital (uSD) Card - contains operating system programming.
IMPORTANT The uSD card must be installed for the diagnostic tool to
operate. Do not remove the uSD card while the diagnostic tool is powered
on.
5— Data Cable Connector
- Data cable connection used to connect the diagnostic
tool to a vehicle data link connector (DLC)
1— Built in-Stand
Figure 2-3 Back view
Scanner
Previous Vehicle
and Data
Quick LookupsOBD-II/EOBD
Tools
S
canne
r
P
revious Veh
icle
and Da
ta
Q
uick Looku
p
s
O
BD-II
/
E
O
B
D
Tool
s
2
1
   

1
