Intelligent Diagnostics Code Results Dropdown Menu
51

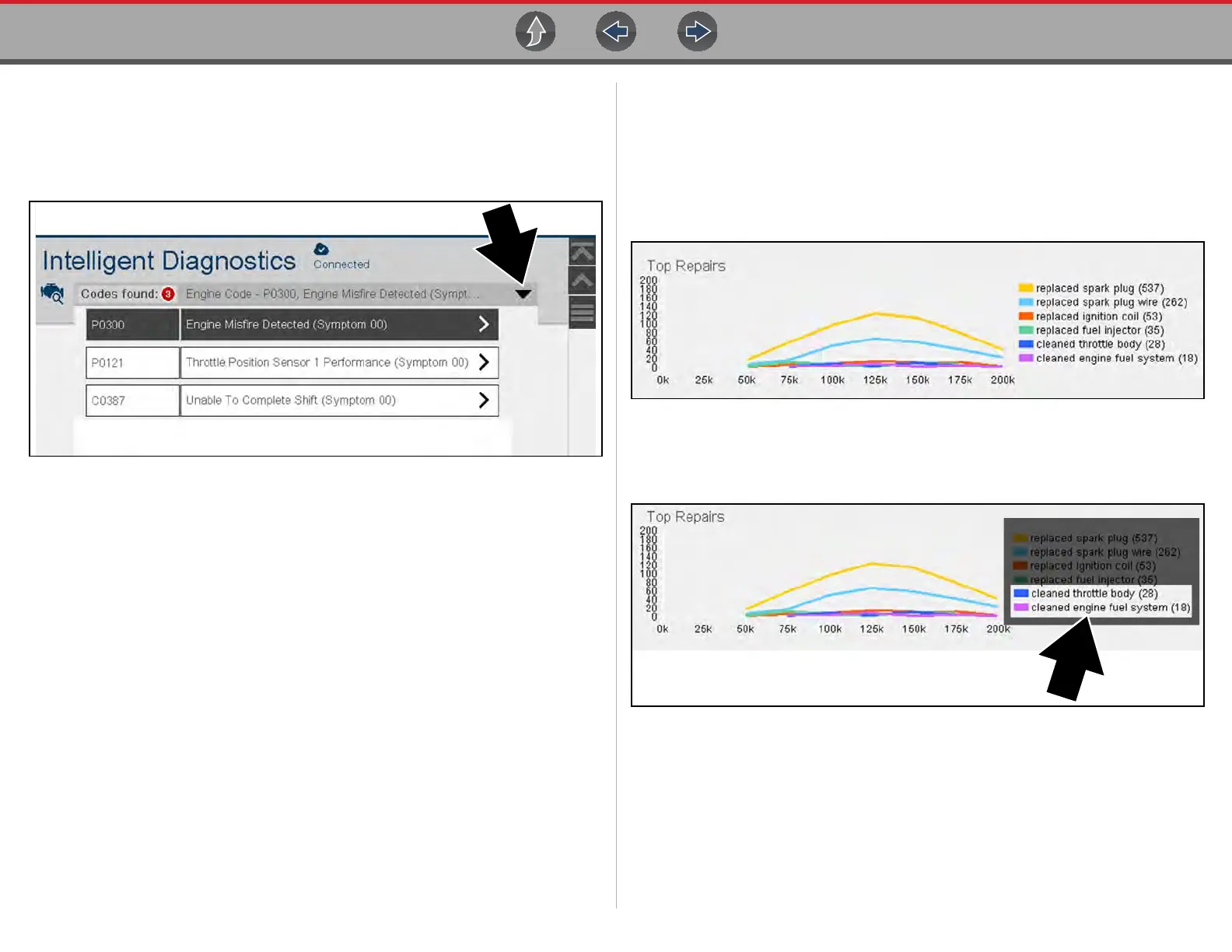

7.4 Code Results Dropdown Menu
The Code Results Dropdown menu allows you to quickly choose any of the
scanned codes from the code list, without having to exit Intelligent Diagnostics.
Select a code to view specific data about that code within Intelligent Diagnostics.
Figure 7-3 Dropdown Menu
7.5 Top Repairs Graph
The Top Repairs Graph (Figure 7-4) shows the most common verified fixes and
procedures.
Example - In the graph shown below, the most common fix for the code was
replacing the intake manifold gasket. This fix occurred 413 times, with the most
occurrences (85) at 100k miles in vehicles with up to 200k miles.
Figure 7-4 Top Repairs Graph (multiple components)
Depending on the information available, the graph may also include probable
causes. See example in Figure 7-5 “cleaned mass airflow sensor”.
Figure 7-5 Example - Probable Cause within Top Repairs Graph
