Introduction Functional Description
1— Battery Status Indicator LED (light emitting diode)
2— DC Power Supply Input Port
3— Scope/Multimeter Jacks
4— Mini USB Client Port
5— Micro secure digital (microSD) Card Port
6— Data Cable Port

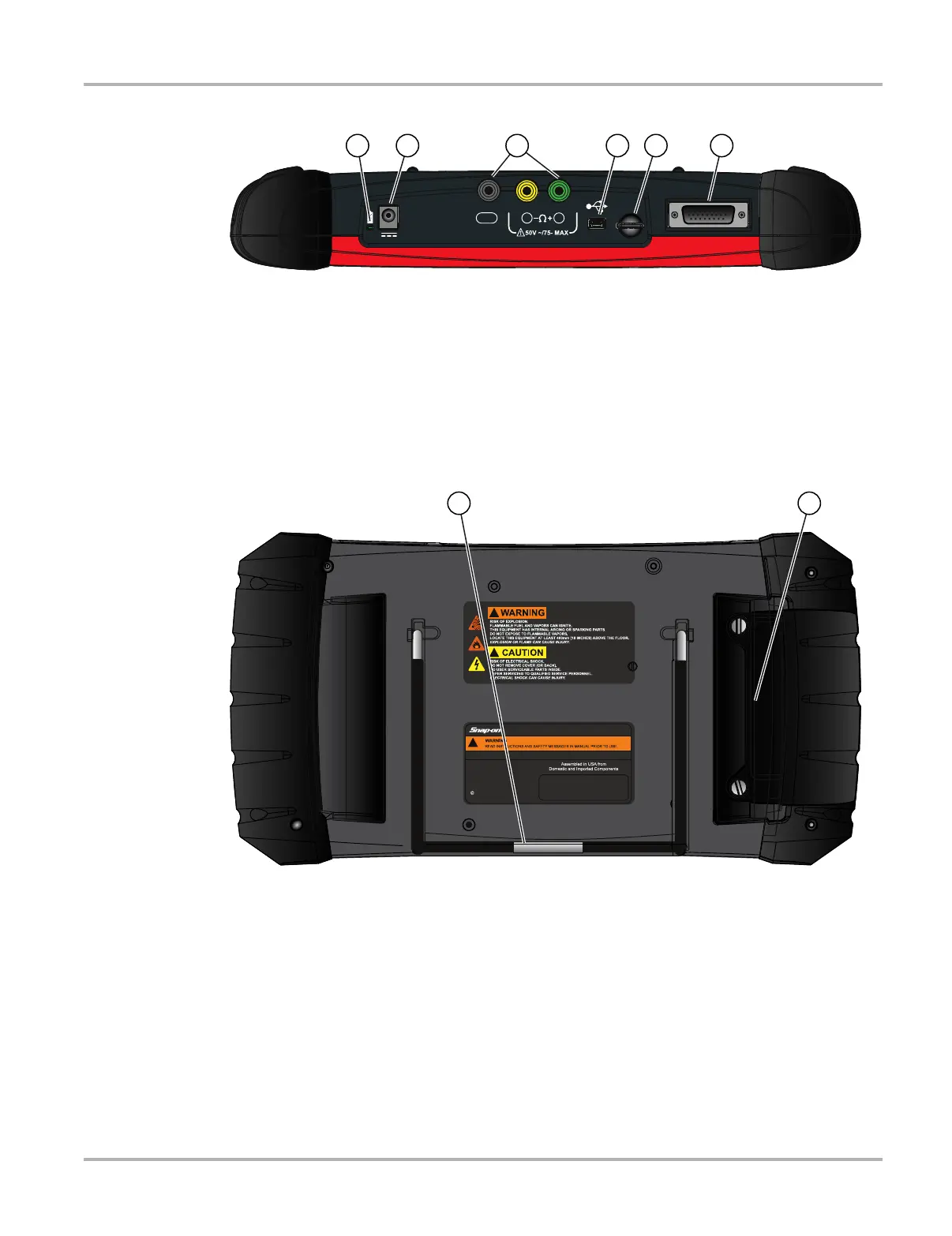

Figure 2-2 Top view
1— Collapsible Stand (closed)
2— Battery Compartment Cover
Figure 2-3 Back view
