Snap-On Modis Ultra User Manual

149
ShopStream Connect Printing the Code Scan Report

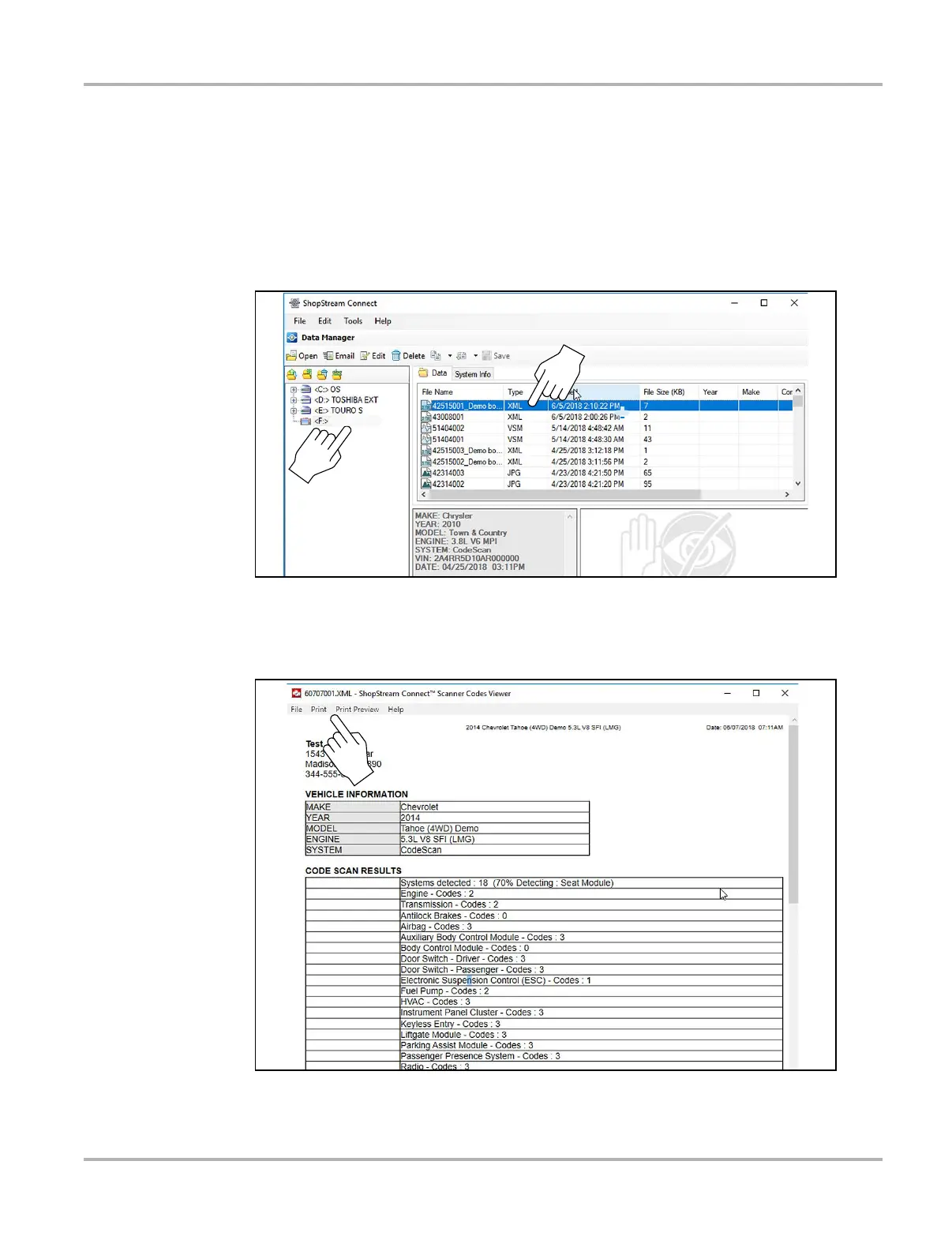

13.5 Printing the Code Scan Report
To print the Code Scan Report, the saved code scan .XML file must be opened using ShopStream
Connect.
To print the Code Scan Report using ShopStream Connect:
1. Double-click the code scan .XML file from the file list to open the report (Figure 13-5) in the
Code Scan Viewer (Figure 13-6).
Figure 13-5
2. Select Print or Print Preview from the Code Scan Viewer menu to print or preview the report
(Figure 13-6).
Figure 13-6
Diagnostic Tool

Snap-On Modis Ultra Specifications

General

Display Size	8 in
Operating System	Android
Storage	32 GB
Connectivity	Wi-Fi, Bluetooth
Warranty	1 year
Battery	Lithium-ion
Scanner	Integrated
Battery Life	10 hours
Display Type	Touchscreen LCD
Power	AC/DC adapter
