Scope Multimeter Test Leads and Accessories
8.3.3 Alligator Clips and Probes
Insulated alligator clips and probes (pointed type) can be attached to the end of the test leads.
Each alligator clip is color matched with a test lead, and the probes are available in red and black.

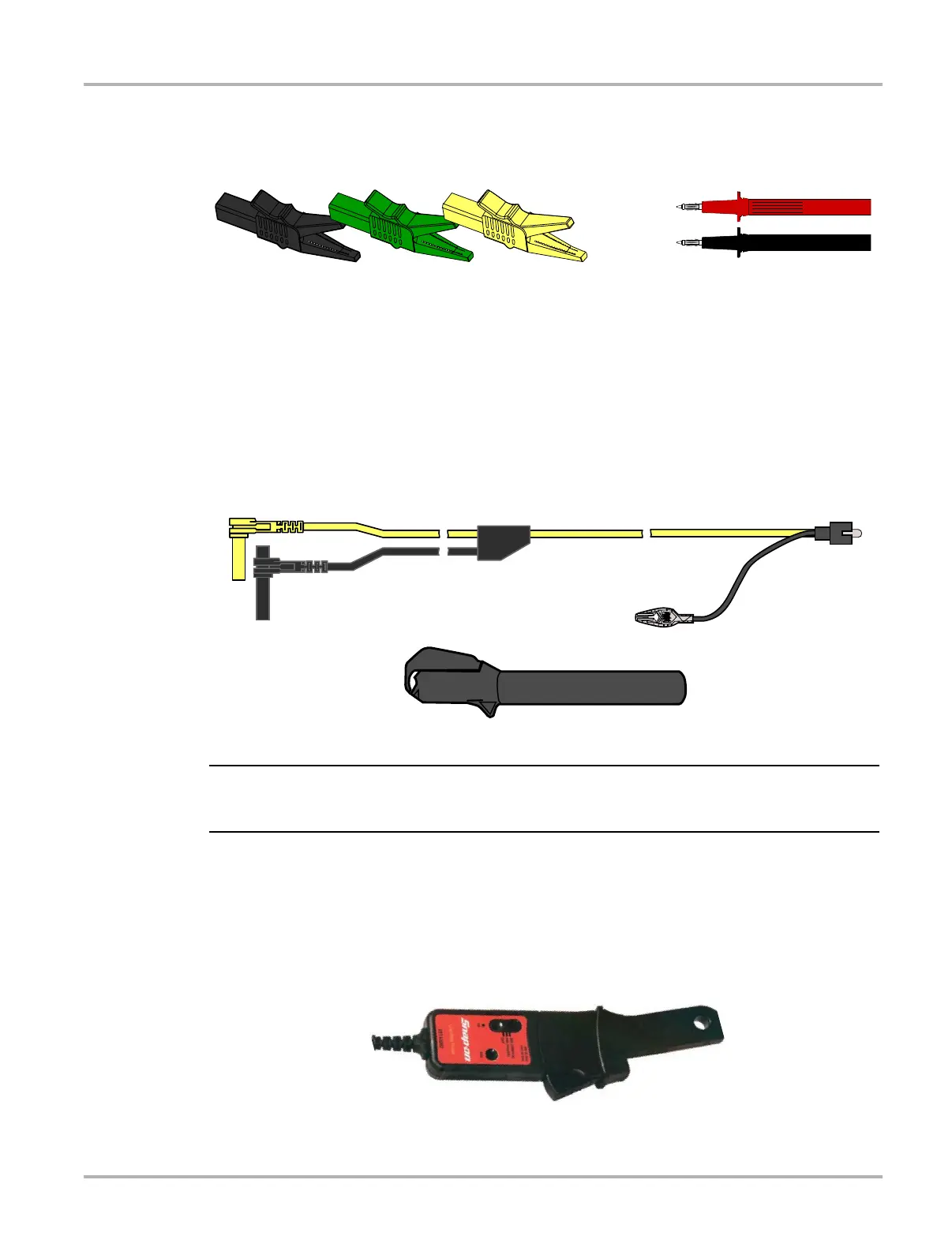

Figure 8-3 Alligator clips
8.3.4 Secondary Ignition Coil Adapter Lead and Clip-on Adapter
(optional)
The secondary ignition adapter lead can be used with the secondary ignition clip-on wire adapter,
coil-in-cap (CIC), or coil-on-plug (COP) secondary ignition adapters to display secondary ignition
signals. The clip-on adapter clips over a secondary ignition wire to pickup a signal, and the CIC
and COP adapters attach to the ignition coil. The coil adapter lead includes a black, right-angle
stackable ground plug, and a RCA type connector that is used to connect the lead to a secondary
ignition adapter. The spring clamp is used to connect to a ground.
Figure 8-4 Secondary Ignition Coil Adapter Lead and Clip-on Wire Adapter
i Contact your sales representative for additional information on OEM specific CIC and COP
secondary ignition adapters.
8.3.5 Low Amp Current Probe (optional)
The Low Amp Current Probe is used measure AC or DC current up to 60A. This probe includes
two scales (0 to 20A) and (0 to 60A) that can be used to provide accurate and reliable non-
intrusive current measurement for components such as, ignition coils, fuel injectors, fuel pumps,
relays, and electric motors.
Figure 8-5 Low Amp Current Probe
