Snap-On Modis Ultra User Manual

65
Guided Component Tests Operations

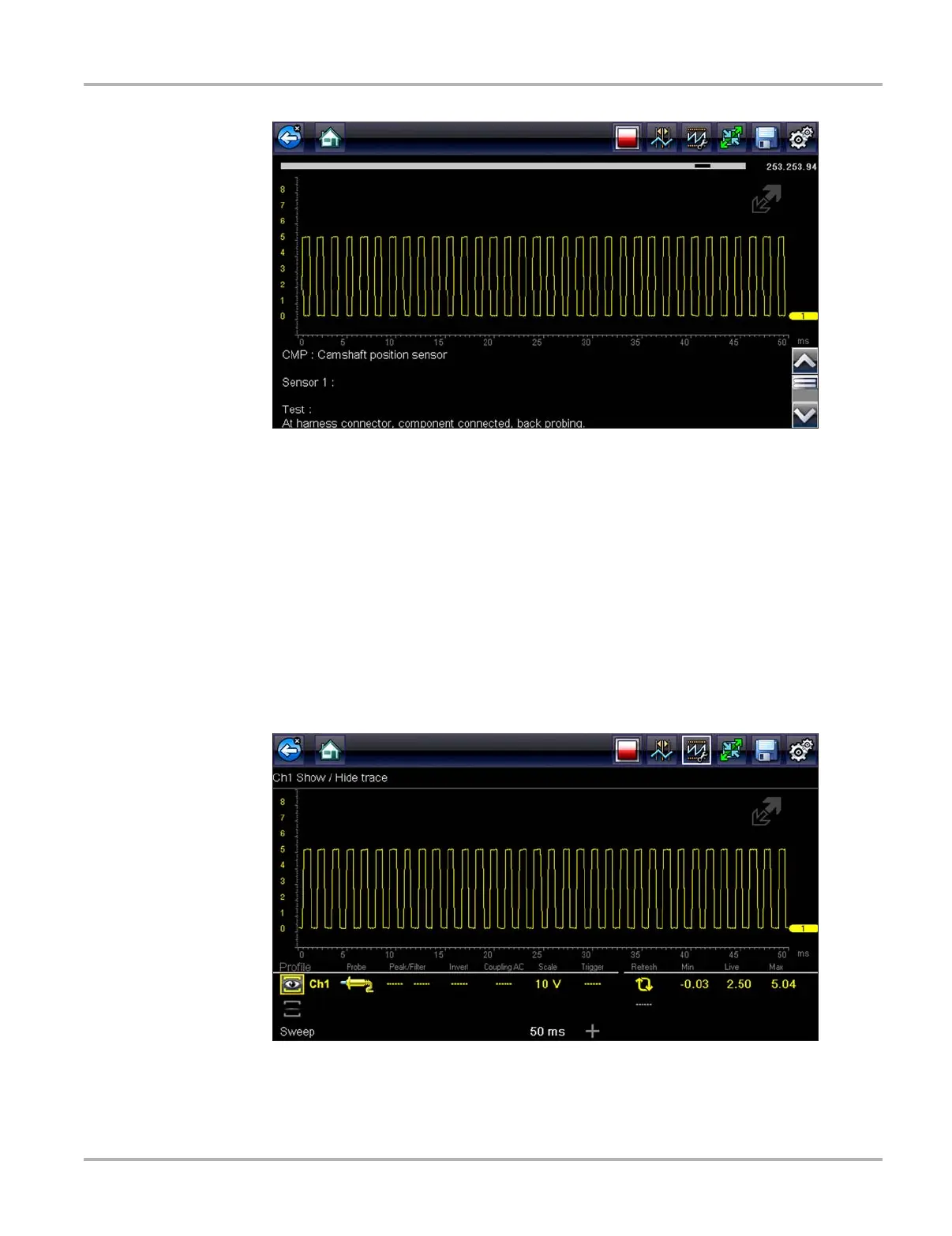

Figure 7-4 Sample Test screen
A Guided Component Test initially opens with the information panel below the main body of
the screen visible. Typically, connection information is on the screen and a scroll indicator
displays along the right edge if there is additional information below what is shown.
4. Tap the Expand/Collapse on the toolbar to view the test meter only.
5. Select Back on the toolbar to return to the menu.
Adjusting Profile
The pre-configured meter can be used as is for conducting most component tests. However, there
are some instances you may want to make adjustments in order to capture a better image of circuit
activity. This is done by selecting the Profile button from the toolbar.
Figure 7-5 Sample Profile window

Snap-On Modis Ultra Specifications

General

Display Size	8 in
Operating System	Android
Storage	32 GB
Connectivity	Wi-Fi, Bluetooth
Warranty	1 year
Battery	Lithium-ion
Scanner	Integrated
Battery Life	10 hours
Display Type	Touchscreen LCD
Power	AC/DC adapter
