Operations Viewing Data Graphically

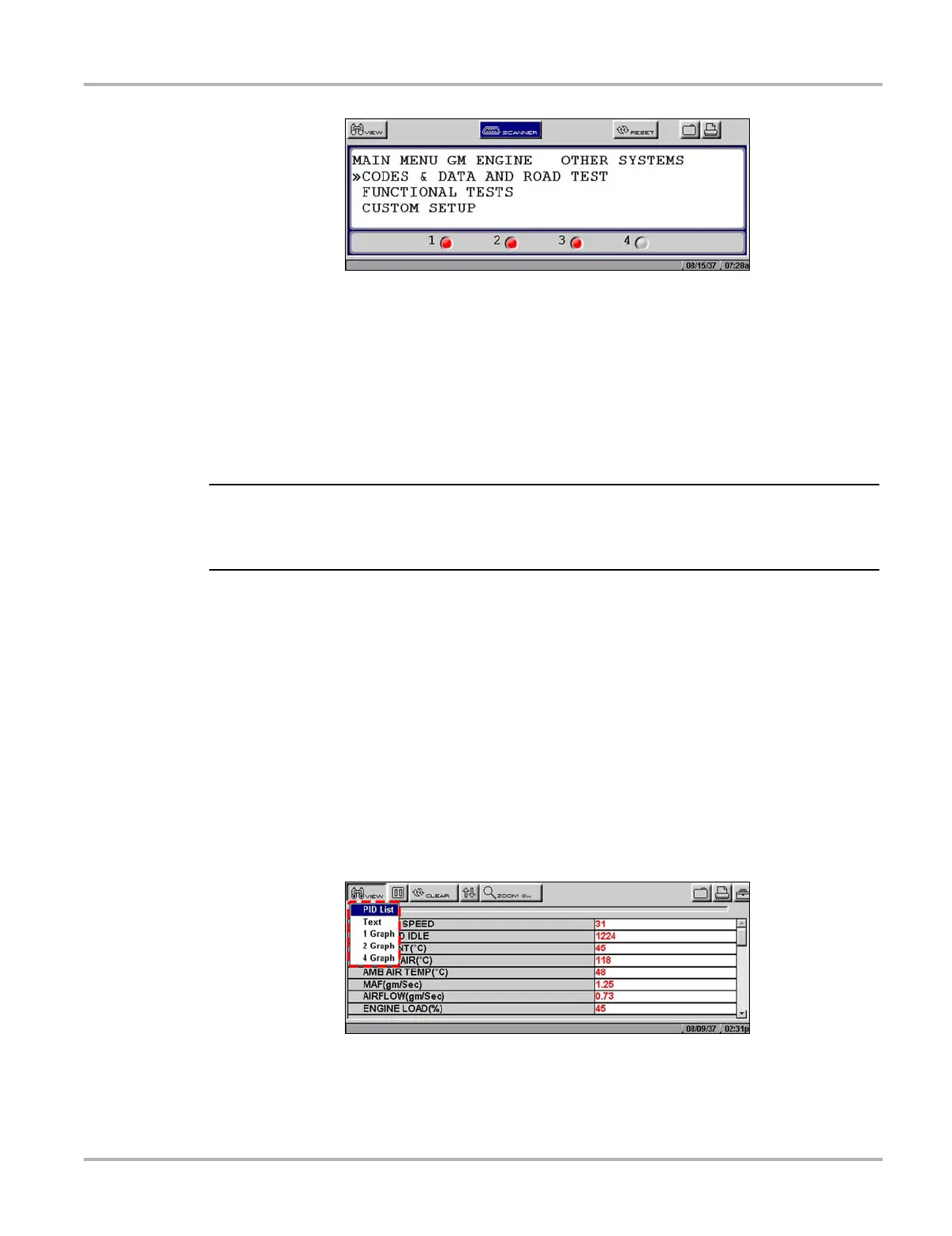

Figure 5-14 Sample Legacy Software main menu
3. When prompted to confirm your selection, press Y/a.
4. GM only: Select ABS (Exit & Re-ID).
5.7.1 Exiting Scanner Mode
Exit Scanner mode before powering off. The exit procedure differs depending on the view option.
IMPORTANT:
Exiting Scanner mode does not ensure that you have safely terminated communication with a
vehicle. See “Terminating Vehicle Communication” on page 31. Also see “Scanner Button” on
page 21 for additional information.
z To exit Scanner mode from text screens:
1. Use right c and left e arrows to scroll the highlight off of the Scanner button.
2. Press N/X to return to the main menu.
z To exit Scanner mode from PID List or Graphs views:
• Press N/X until you return to the main menu.
5.8 Viewing Data Graphically
The scan tool provides multiple options for viewing and sorting collected data.
Figure 5-15
Sample View menu
