14
|
Hardware

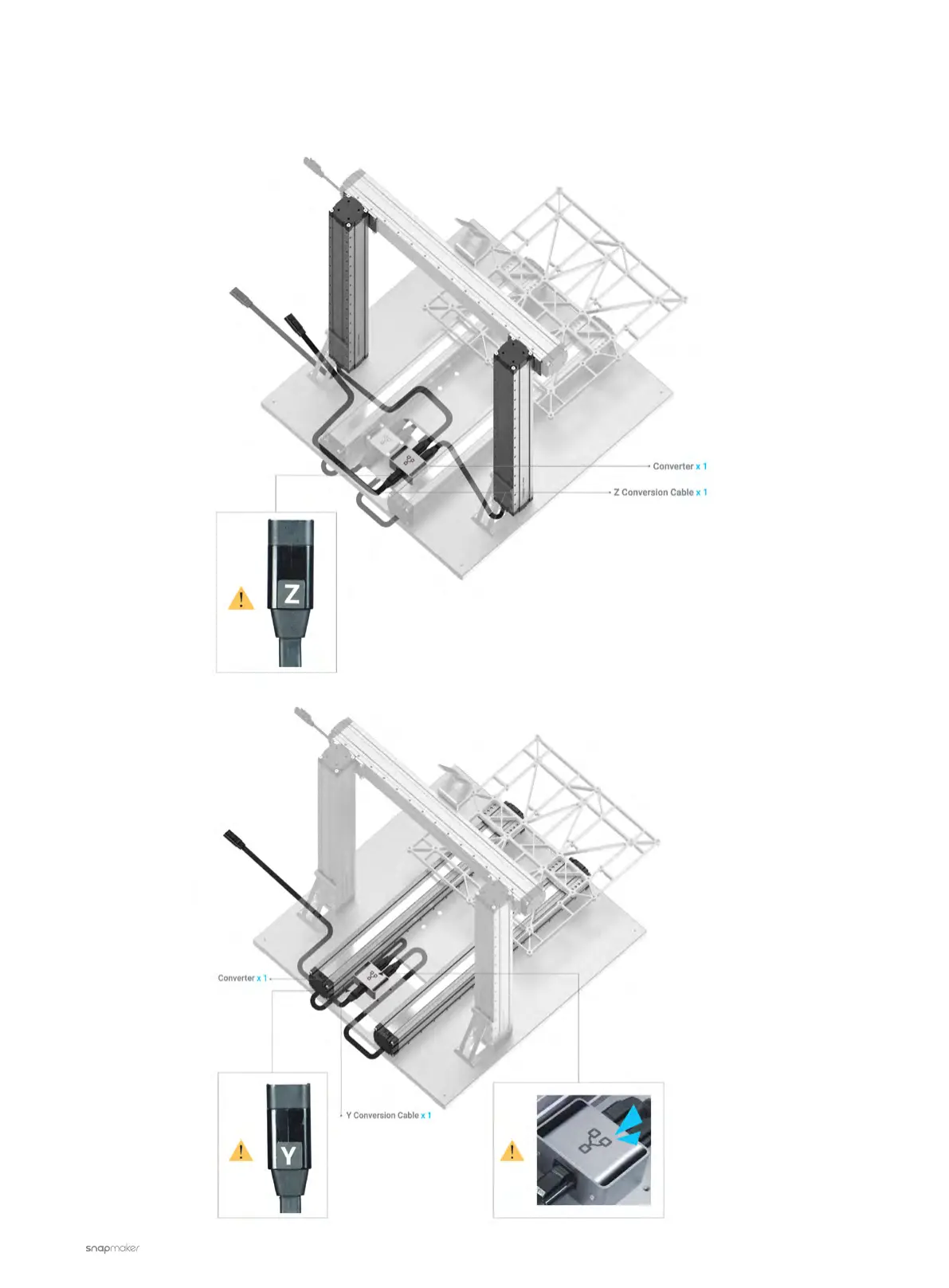

4. Check the cable connection of the Y- and the Z-axis Linear Modules, make sure they are plugged into the right
port of the Controller as illustrated.
