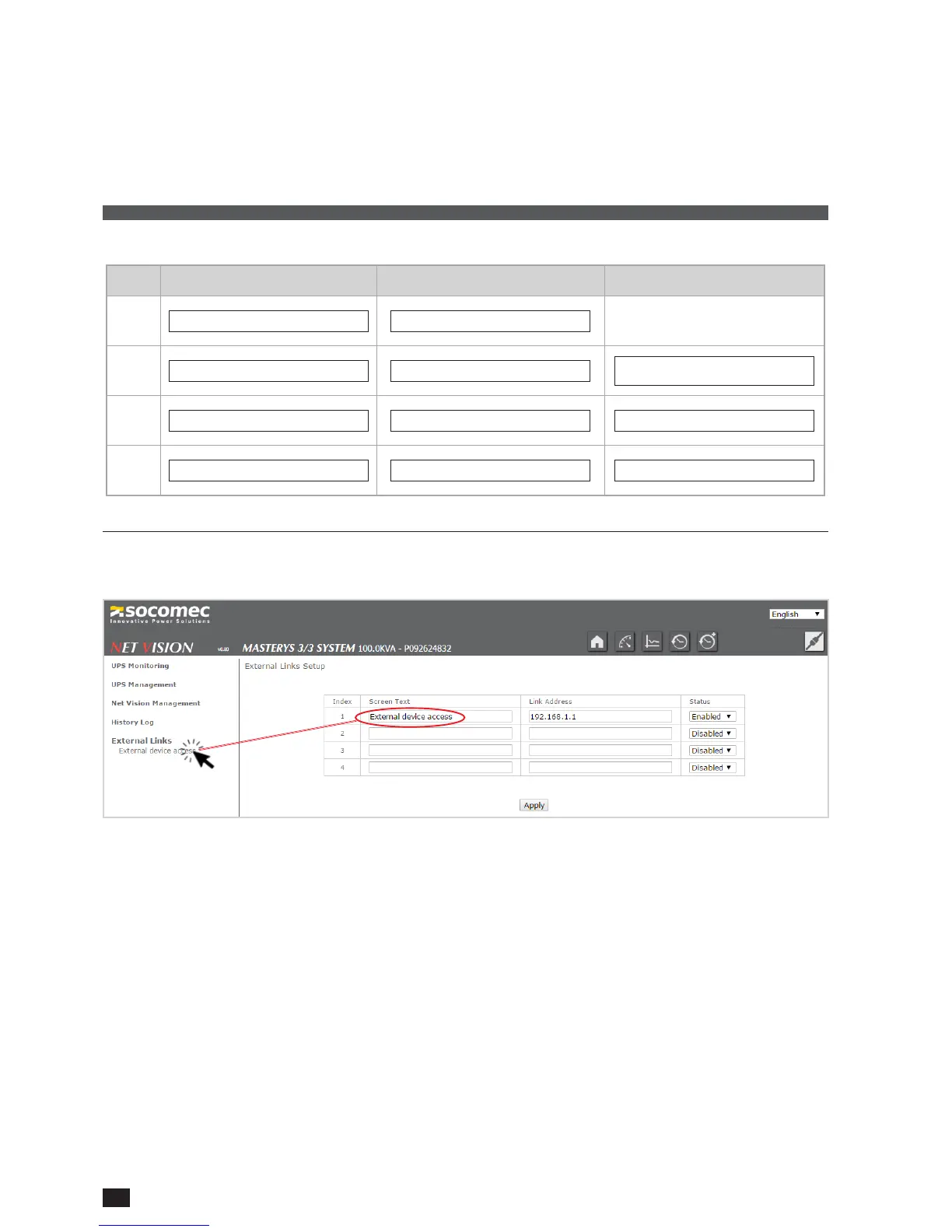

20. EXTERNAL LINK SETUP
This page allows setting the access to other network devices by hyperlink.
Screen T
ext description will appear in the External Links menu.
The hyperlink includes the IP address set as Link Addr
ess
External Links Setup
Index
Screen T
ext
Link Address
Status
1
Disabled
Enabled
2
Disabled
3
4
Example:
Click on the link to open a new page in the web browser
.
49
