NET-VISION 7 - SOCOMEC

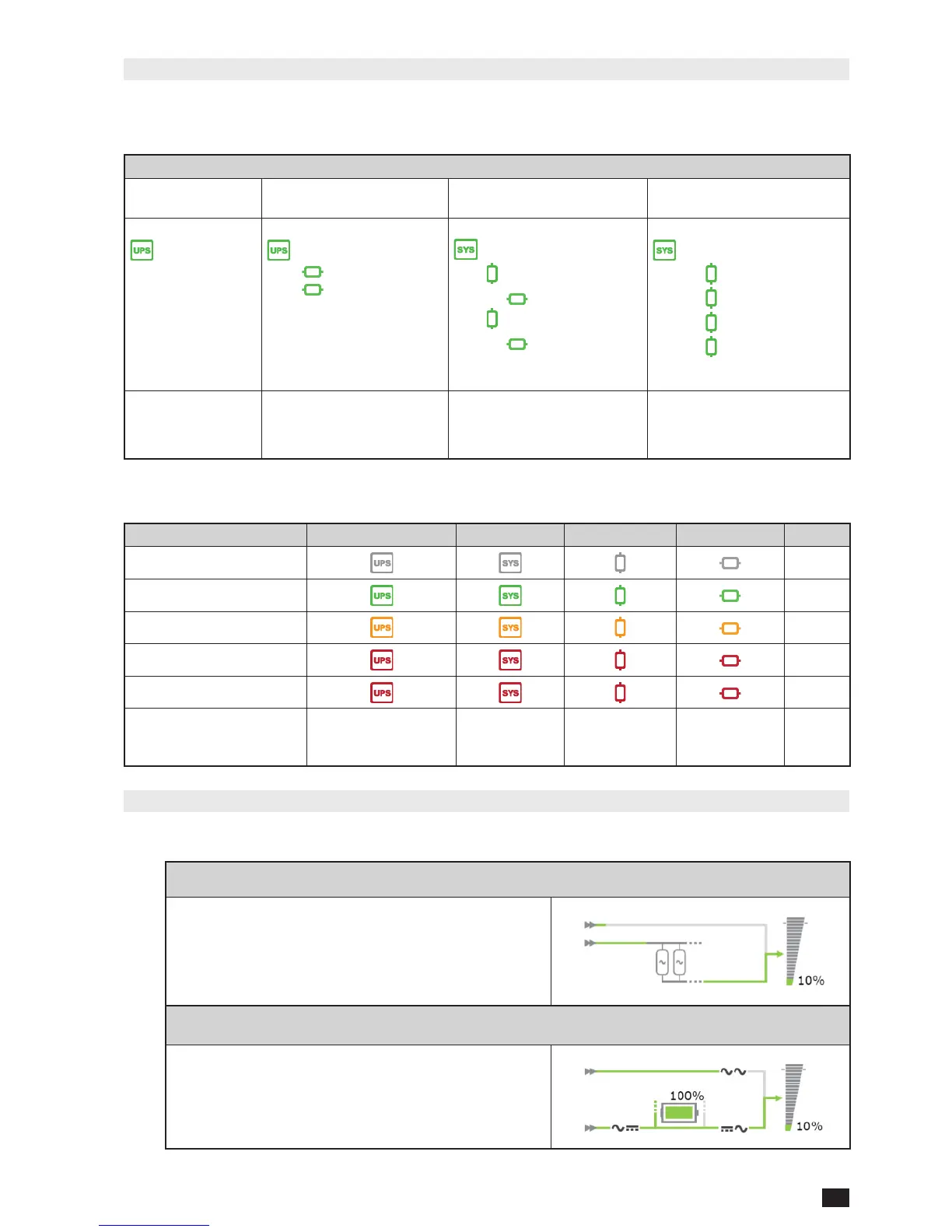

12.3. UPS ARCHITECTURE TREE-VIEW
NET VISION automatically recognizes the UPS topology and adapts the UPS tree-view and synoptic view.
UPS TOPOLOGIES
SINGLE UNIT UPS MODULAR UNIT UPS
MODULAR SYSTEM
Up to 3 units in parallel
PARALLEL SYSTEM UPS
Up to 10 units in parallel
UPS reference UPS reference
Module number
Module number
SYSTEM reference
Unit number
•
Module number
Unit number
• Module number
SYSTEM reference
Unit number
Unit number
Unit number
Unit number
Modules numbered from 1
to 8, according the physical
position in the unit’s cabinet
Modules numbered from 1
to 24, according the physical
position in the unit’s cabinet
In case of centralized bypass,
the Bypass Unit is not repre-
sented
Device status management:
STATUS SINGLE / MODULAR SYSTEM UNIT MODULE
On standby
Operating
Operating with alarm
Operating with critical alarm
Imminent stop ashing
Click for access to:
UNIT SYNOPTIC
UNIT TABLE
SYSTEM
SYNOPTIC
UPS TABLE
UNIT
SYNOPTIC
UNIT TABLE
MODULE
TABLE
12.4. UPS SYNOPTIC
NET VISION manages 2 types of synoptic: SYSTEM VIEW and UNIT VIEW
SYSTEM VIEW FOR PARALLEL SYSTEMS
Overviews of units’ input and bypass input sup-
ply and the global output of the UPS.
The UPS output parameters table gives the glob-
al measurements of all units that are operating.
UNIT VIEW FOR SINGLE, MODULAR OR UNITS AS PART OF A PARALLEL SYSTEM
This view gives details of rectier and bypass
inputs supply, battery status and unit output pa-
rameters.
