socomec NET-VISION User Manual

26
GB
NET-VISION 7 - SOCOMEC

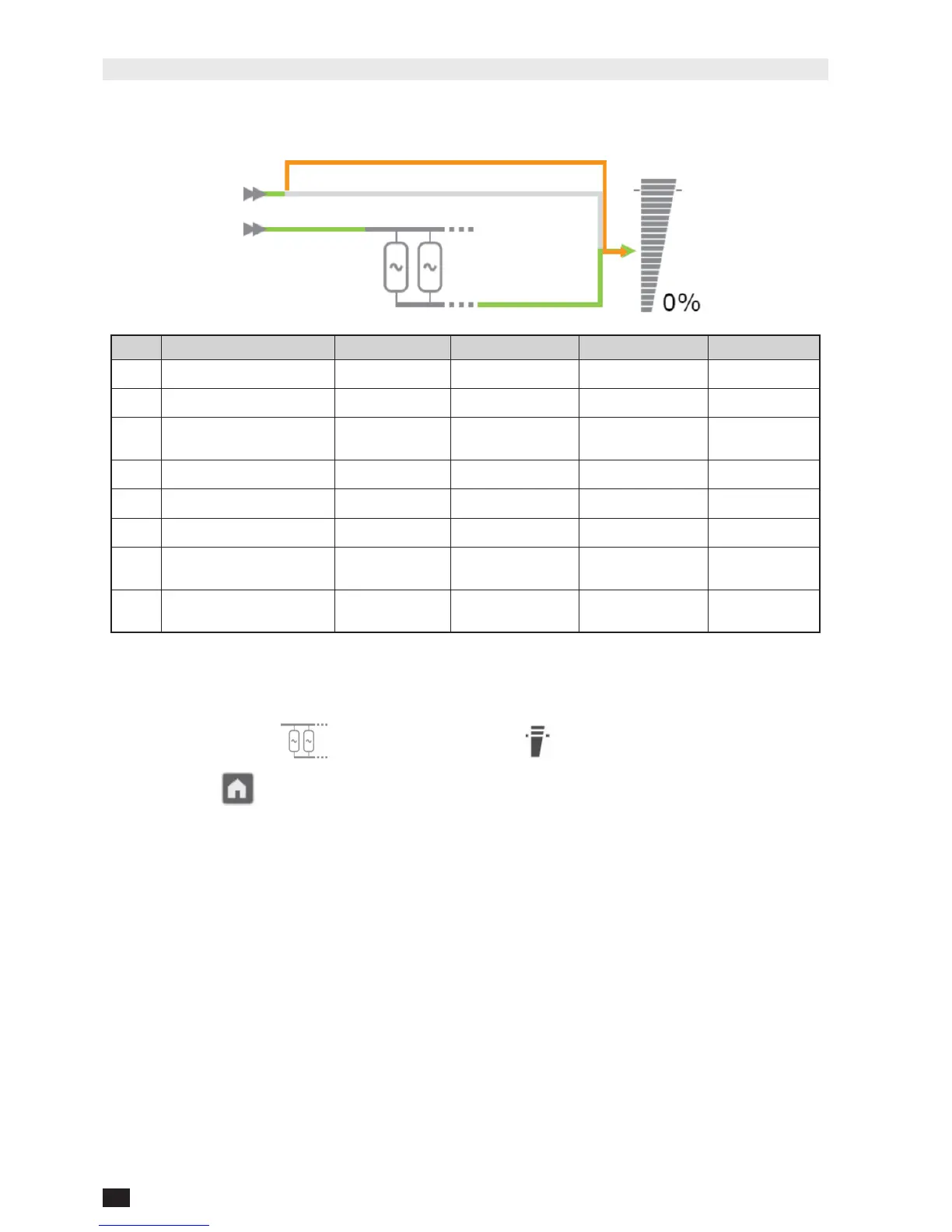

13.2. SYSTEM SYNOPTIC
13.2.1. ANIMATION
ELEMENT GREY GREEN YELLOW RED
1 Rectier input supply Not present Present
7 Inverter output Inverter off Inverter on On battery
8 Output off
On inverter
On eco mode
On bypass
On battery
9 Load 0% Up to 90% Above 90% Above 100%
11 Bypass input supply Not present Present
12 Bypass input Not present Present Bypass on
14 Bypass output Bypass off
Bypass on and
eco mode
Bypass on
15 Maintenance Bypass Present
On maintenance
bypass
13.2.2. NAVIGATION
Clicking on the System
and output load symbols shows the related parameters table
below the synoptic.
Clicking on the button or “Comprehensive View” in the Monitor menu switches back to the
“UPS Parameters Table”.
13.2.3. UPS PARAMETERS TABLE
The table is updated with data read from the UPS at System level, which is a combination from
all Unit data.
See “
Unit/UPS Parameters Table”
13.2.4. UPS OUTPUT PARAMETERS TABLE
The table is updated with data read from the UPS at System level, which is a combination from
all Unit data.
See UPS “
Output Parameters Table”
11
15
12
14
9
8
1
7
