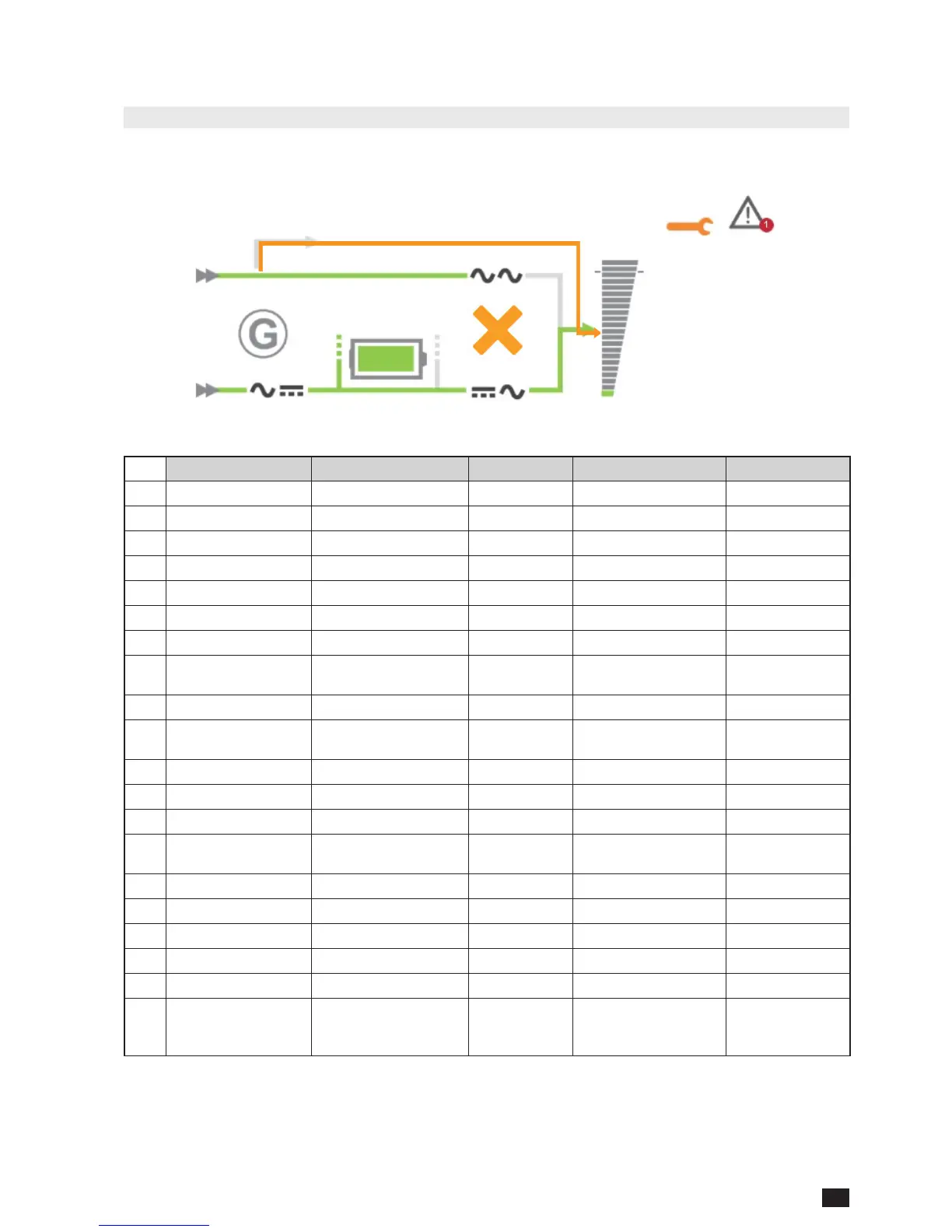

13. UPS MONITORING
13.1. UNIT SYNOPTIC
13.1.1. SYNOPTIC ANIMATION
ELEMENT GREY GREEN YELLOW RED
1
Rectier input supply Not present Present
2
Rectier On + prev. alarm On + critical alarm
3
Rectier output Rectier off Rectier on
4
DC Bus Rectier off Rectier on
5
Inverter input Rectier off Rectier on On battery
6
Inverter On + prev. alarm On + critical alarm
7
Inverter output Inverter off Inverter on On battery
8
Output off
On inverter or
On eco mode
On bypass or
On battery
9
Load 0% Up to 90% Above 90% Above 100%
10
Battery default
Battery room or temp,
alarm or test failed
Battery alarm
11
Bypass input supply Not present Present
12
Bypass input Not present Present Bypass on
13
Bypass On + prev. alarm On + critical alarm
14
Bypass output Bypass off
Bypass on
and eco mode
Bypass on
15
Maintenance Bypass present On maintenance bypass
16
Bypass impossible Impossible Locked
17
Maintenance alarm Active
18
Alarm present If one alarm present
19
Genset Genset on
20
Battery sharing
Present if the battery
is shared with all other
Units in parallel system
The output load rate value is reported to synoptic. The load value is not displayed if the mainte-
nance bypass is closed.
During battery charging and battery charged status, the battery capacity value in % is displayed.
The capacity value is replaced by the remaining backup time when the battery is discharging.
11
15
16
12 13 14
9
17
18
19 20 10
8
1 2 3 4 5 6 7
