Operating via a web browser within your own network
VLCD Display
The VLC Display is located above the left navigation menu and displays the notifications from the So-
lar-Log™in the form of codes and symbols in addition to the date and time. The codes and symbols corre-
spond to those for the LCD display. (Refer to the illustration "VLCD Display" and the chapter "
Meaning of
the symbols on the LCD display"
)
The notifications are in real-time and are identical to those on the Solar-Log™ LCD Display. (Solar-Log 300,
1200 and 2000) (Also refer to the chapter "Notifications on the LCD Status Display")

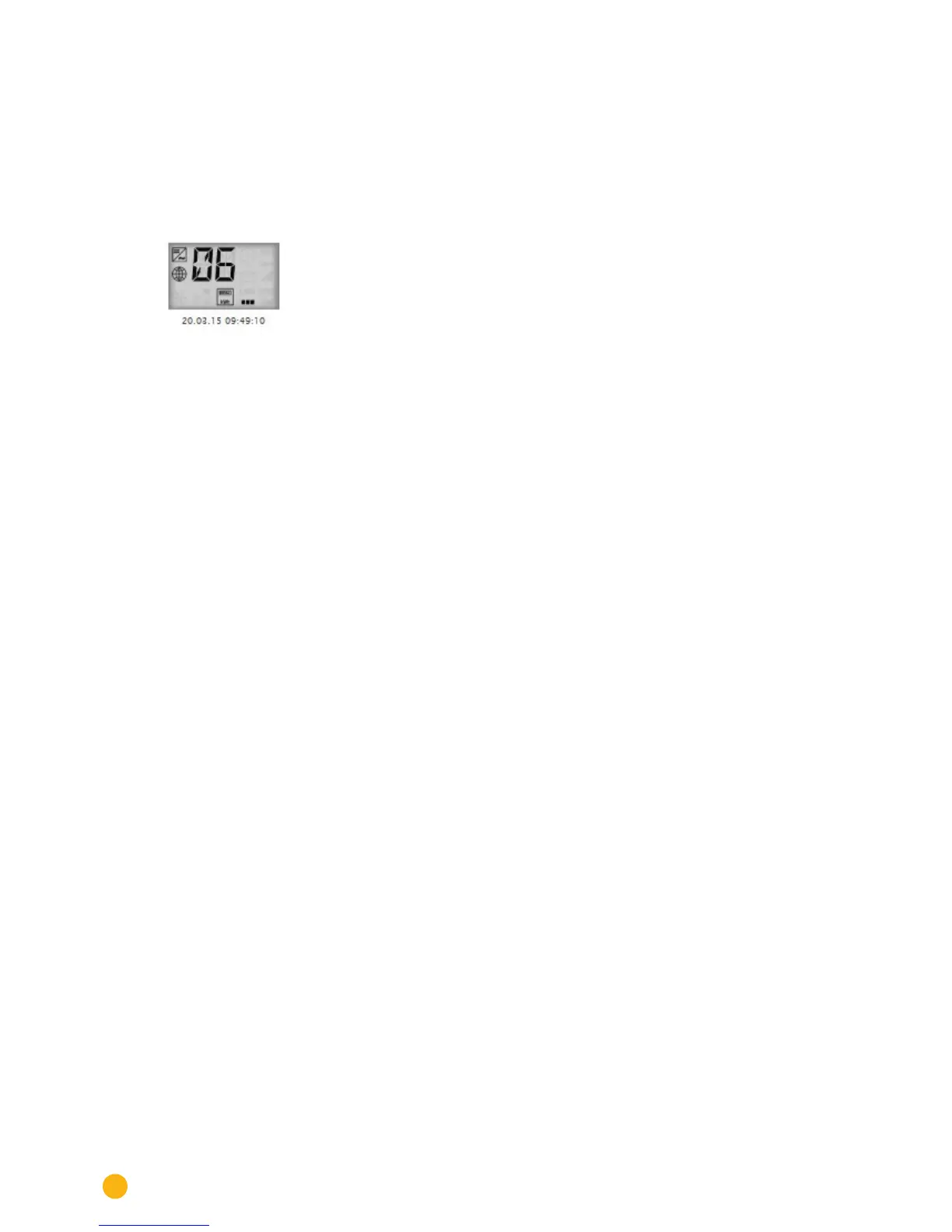

Fig.: VLCD Display

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
