Solar-Log 1000 User Manual

37
Operating via a web browser within your own network
2.7.3 Year balance
The Year tab under Balances displays the production and consumption side-by-side in a bar graph.
•
Move the mouse above one of the bars to view either the monthly yield or consumption with a
comparison of the current and target values in regard to the annual forecast.
•
Click on one of the bars to go to the corresponding month overview.

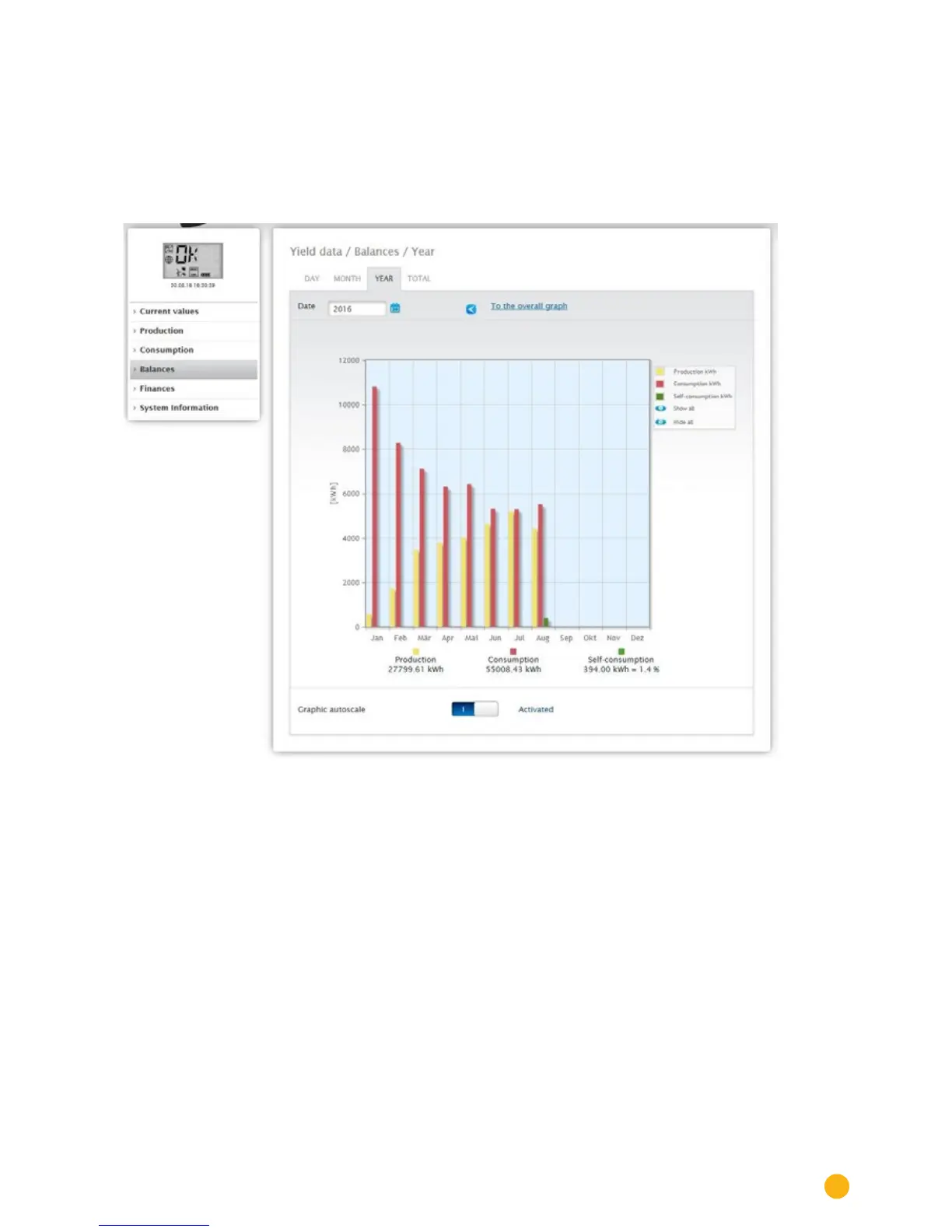

Fig.: Year view balance graph

Solar-Log 1000 Specifications

General

Max Inverters	100
Display	LCD
Power Supply	24 VDC
Data Storage	SD Card
Enclosure Protection	IP20
Maximum Number of Strings	100
Ethernet Ports	1
USB Ports	1
Communication Interfaces	Ethernet, RS485
Supported Communication Protocols	Modbus, SunSpec
Power Consumption	5 W
